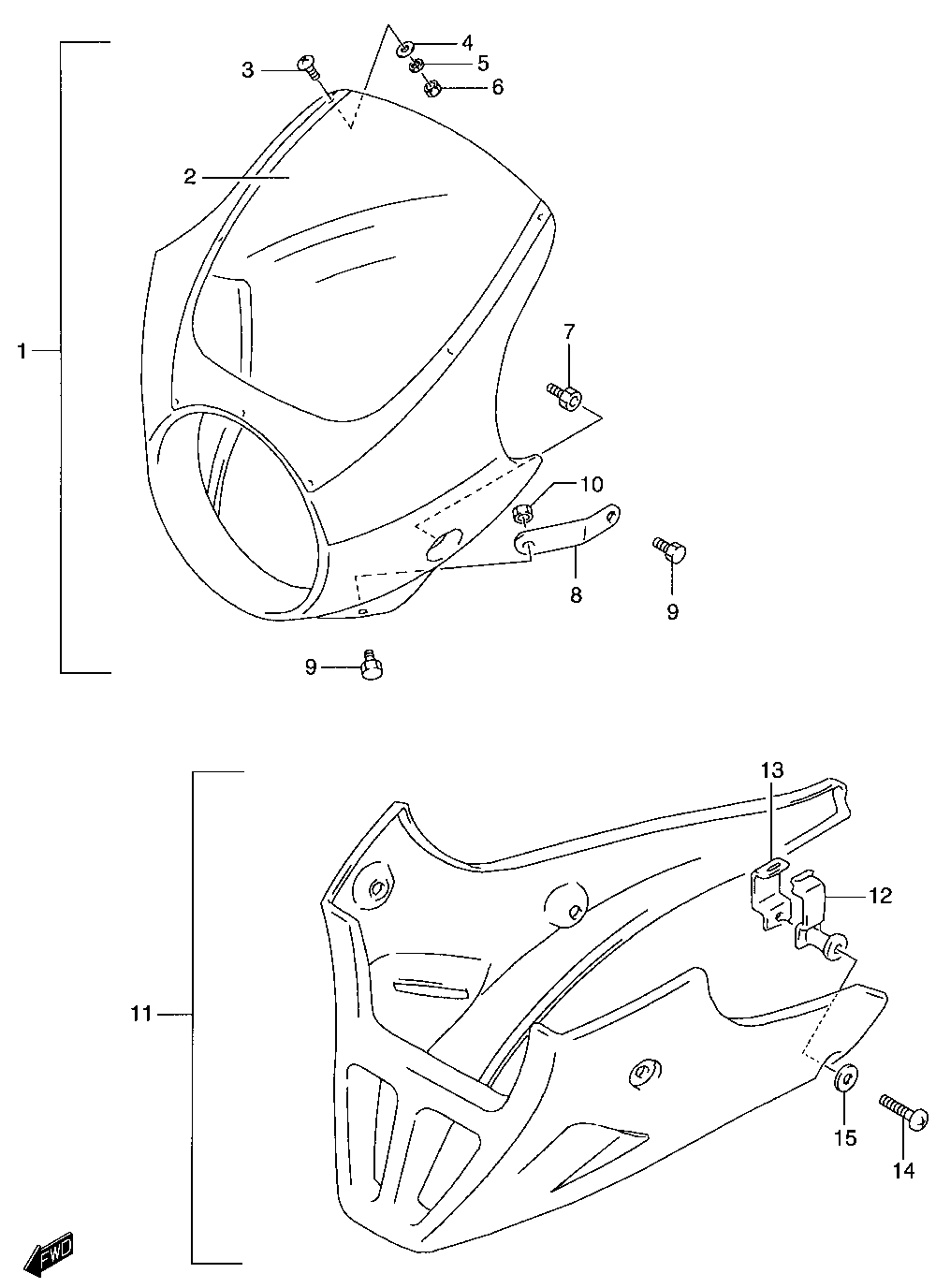

COWLING (OPTIONAL) для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
1-294402-01D60-33J UPPER COWLING ASSY. (33J - BLACK)UPPER COWLING ASSY. (33J - BLACK)
-
294432-01D60 ...SCREEN, WIND...SCREEN, WIND
-
302142-04123 ...SCREW...SCREW
-
408322-01043 ...WASHER...WASHER
-
508321-01043 ...LOCK WASHER...LOCK WASHER
-
608310-00043 ...NUT...NUT
-
794741-01D60 ...BOLT, HEADLAMP...BOLT, HEADLAMP
-
894511-01D60 ...BRACE, COWLING...BRACE, COWLING
-
901570-06167 ...BOLT...BOLT
-
1008310-00063 ...NUT...NUT
-
11-394470-01870-33J UNDER COWLING SET (33J - BLACK)UNDER COWLING SET (33J - BLACK)
-
1294580-01D50 ...BRACKET, OUTER...BRACKET, OUTER
-
1394582-01D50 ...BRACKET, INNER...BRACKET, INNER
-
1402112-36457 ...SCREW...SCREW
-
1509160-06084 ...WASHER...WASHER
