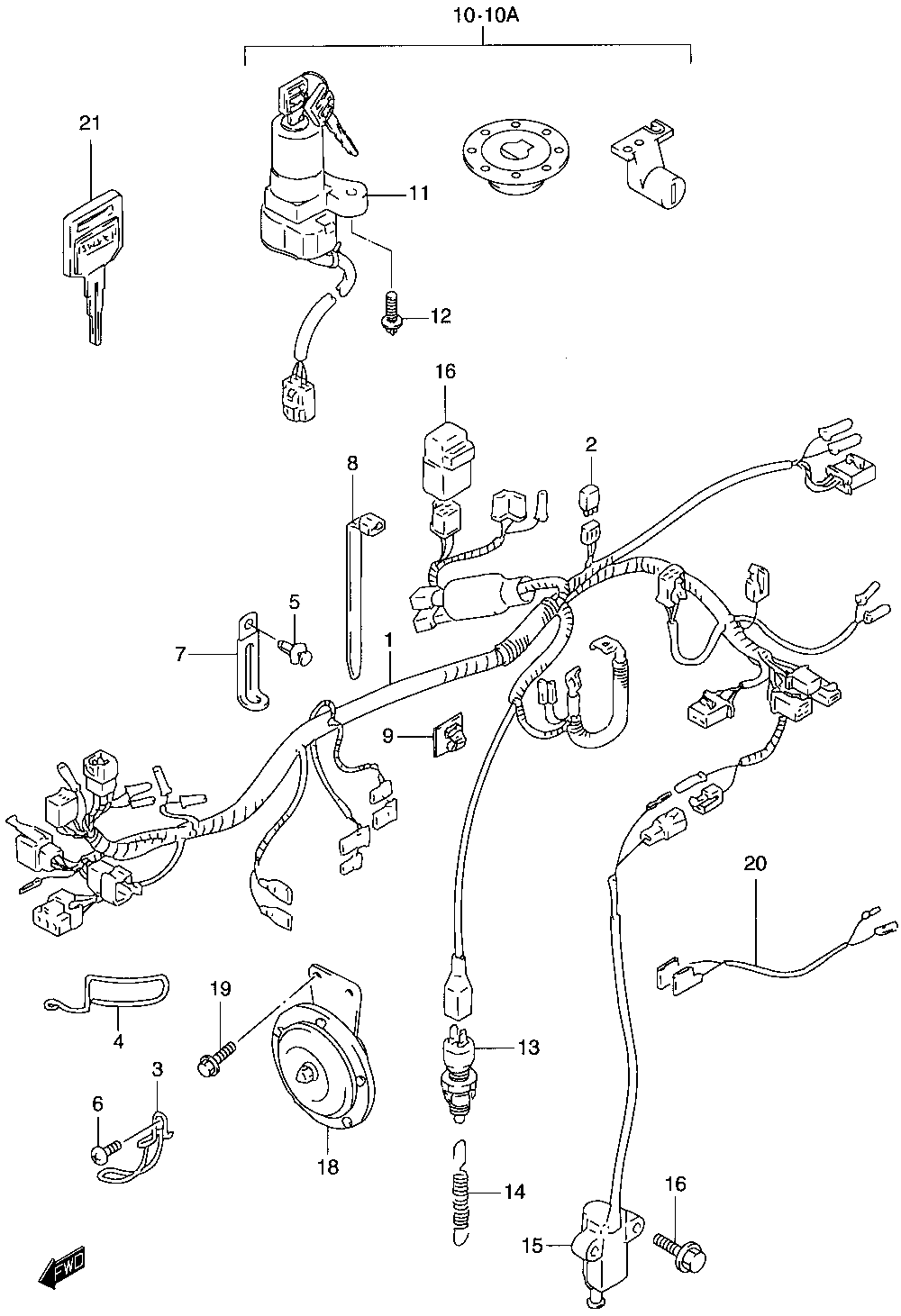

ELECTRICAL - WIRING HARNESS для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
1-236610-01D31 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 ...DIODE...DIODE
-
336611-01D00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
436611-01D10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
509409-07305-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
602142-06123 SCREWSCREW
-
7-109404-06431 CLAMP (L:85)CLAMP (L:85)
-
7-209404-06432 CLAMP (L:80)CLAMP (L:80)
-
7-309404-06434 CLAMP (L:95)CLAMP (L:95)
-
7-409404-08418 CLAMP (L:82)CLAMP (L:82)
-
8-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
909403-06310 CLAMPCLAMP
-
1037000-01840 LOCK SET (EXCEPT CALIF.)LOCK SET (EXCEPT CALIF.)
-
10A37000-01850 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1137100-26D02 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
1209139-06026 BOLTBOLT
-
1337740-24A00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1409443-06042 SPRINGSPRING
-
1537840-01D01 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
1601550-06303 BOLTBOLT
-
1738740-24X50 RELAY ASSY., SIDE STANDRELAY ASSY., SIDE STAND
-
1838500-01D10 HORN ASSY.HORN ASSY.
-
1901550-06123 BOLTBOLT
-
2036852-19D00 WIRE, CLUTCH SWITCHWIRE, CLUTCH SWITCH
-
2137146-26D10 KEY, BLANK (OPT)KEY, BLANK (OPT)
