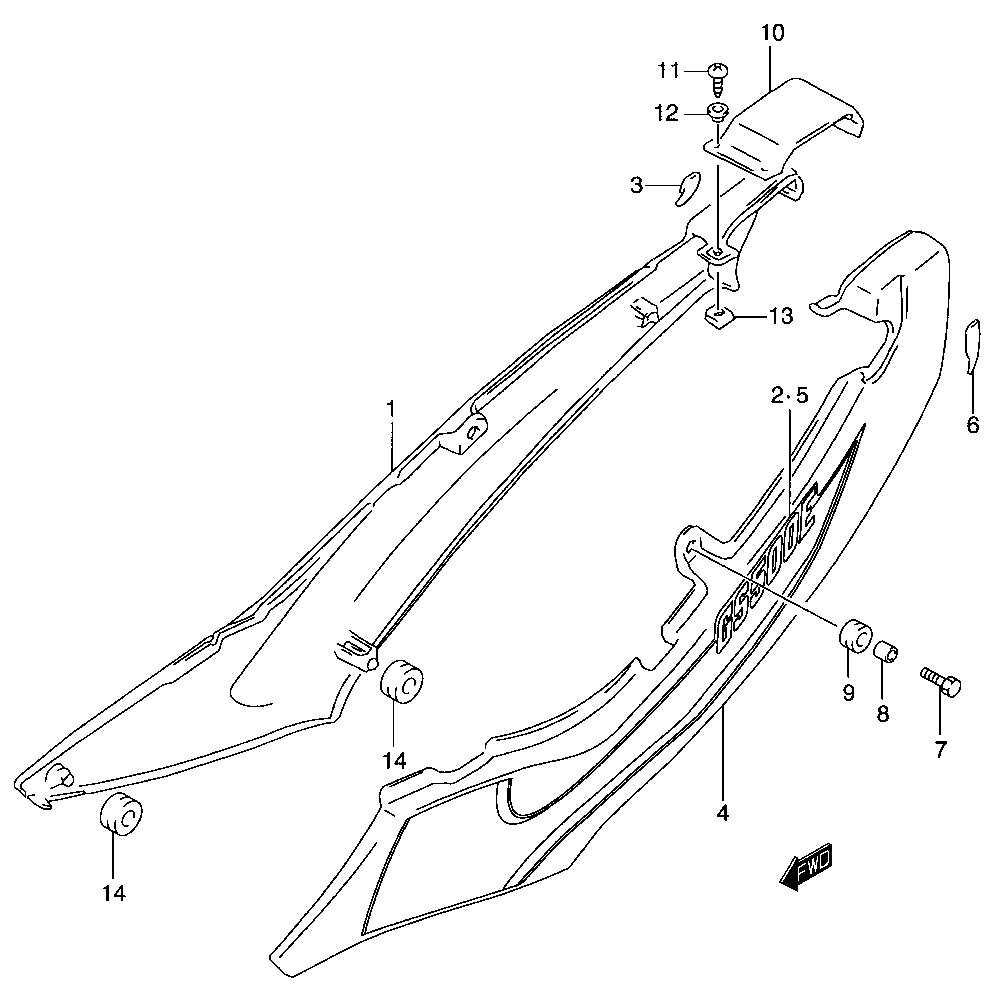

SIDE COVER для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
147110-01DH0-33J COVER, FRAME (RIGHT/BLACK)COVER, FRAME (RIGHT/BLACK)
-
268135-01D30-J6A ...TAPE, RIGHT (J6A - GRAY/BLACK/SILVER/CHARCOAL) (FOR 33J)...TAPE, RIGHT (J6A - GRAY/BLACK/SILVER/CHARCOAL) (FOR 33J)
-
347119-01D00 PROTECTOR, RIGHTPROTECTOR, RIGHT
-
447210-01DH0-33J COVER, FRAME - LEFT (33J - BLACK)COVER, FRAME - LEFT (33J - BLACK)
-
568145-01D30-J6A ...TAPE, LEFT (J6A - GRAY/BLACK/SILVER/CHARCOAL) (FOR 33J)...TAPE, LEFT (J6A - GRAY/BLACK/SILVER/CHARCOAL) (FOR 33J)
-
647219-01D00 PROTECTOR, LEFTPROTECTOR, LEFT
-
709116-06010 BOLTBOLT
-
809180-06263 SPACERSPACER
-
909320-09016 CUSHIONCUSHION
-
1047215-01D00-33J CENTER COVER (33J - BLACK)CENTER COVER (33J - BLACK)
-
1103242-05123 SCREW, COVER - CENTERSCREW, COVER - CENTER
-
1209161-05017 WASHERWASHER
-
1309148-05004 NUTNUT
-
1409320-08018 CUSHIONCUSHION
