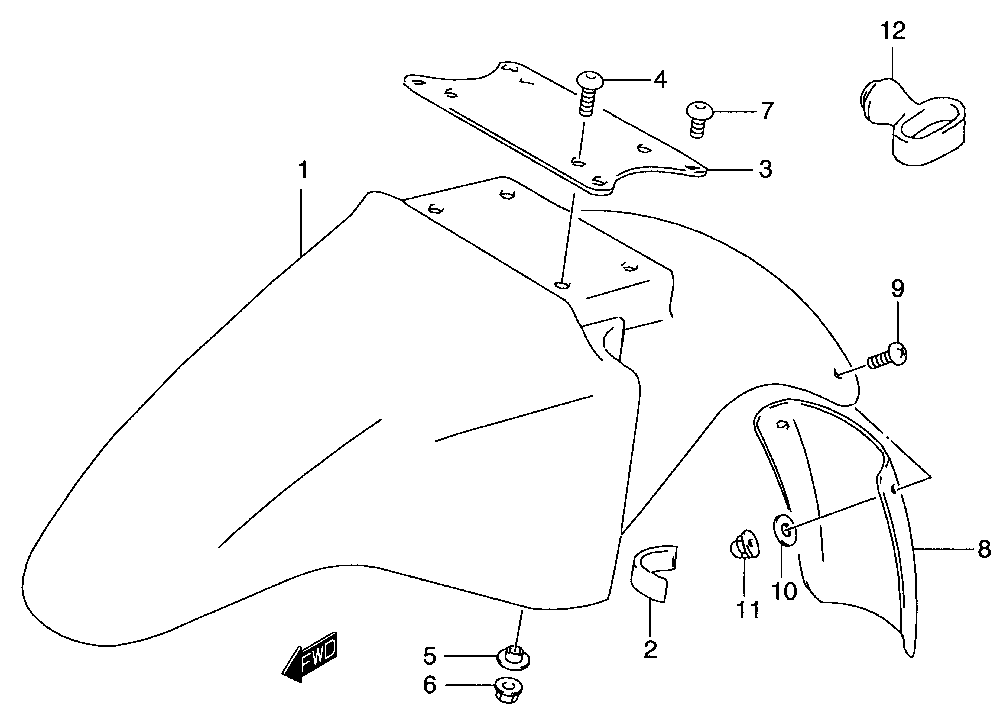

FENDER - FRONT для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
1-553111-01D12-33J FRONT FENDER (33J - BLACK)FRONT FENDER (33J - BLACK)
-
253145-30B00 CUSHIONCUSHION
-
353114-01D00 BRACE, FRONT FENDER (SILVER)BRACE, FRONT FENDER (SILVER)
-
4-209139-05032 SCREWSCREW
-
509169-05010 WASHERWASHER
-
609159-05026 NUTNUT
-
709139-06027 SCREWSCREW
-
853311-01D01 MUD FLAP, FRONT FENDERMUD FLAP, FRONT FENDER
-
902142-05127 SCREWSCREW
-
1009160-05501 WASHERWASHER
-
1108313-20053 NUTNUT
-
1258621-21203 GUIDE, CABLEGUIDE, CABLE
