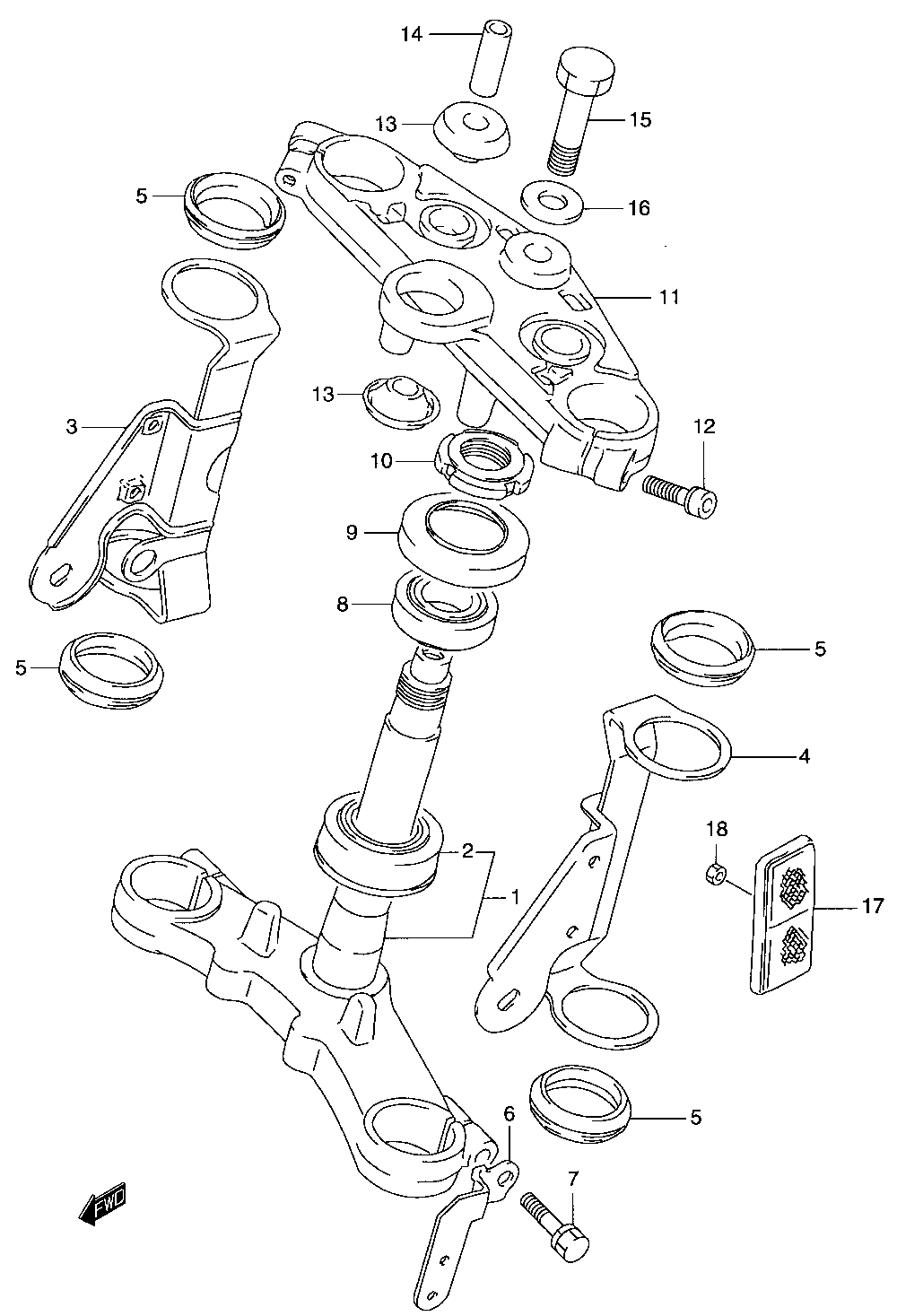

STEERING STEM для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
151410-01D91 STEM, STEERINGSTEM, STEERING
-
209265-30009 ...BEARING (30X55X17)...BEARING (30X55X17)
-
351530-01D01 BRACKET, HEADLAMP - RIGHTBRACKET, HEADLAMP - RIGHT
-
451540-01D01 BRACKET, HEADLAMP - LEFTBRACKET, HEADLAMP - LEFT
-
551553-34300 CUSHION, BRACKETCUSHION, BRACKET
-
6-135956-01D10 BRACKET, REFLECTOR - RIGHTBRACKET, REFLECTOR - RIGHT
-
6-235957-01D10 BRACKET, REFLECTOR - LEFTBRACKET, REFLECTOR - LEFT
-
751352-01D00 BOLT, STEERING STEMBOLT, STEERING STEM
-
809265-25019 BEARING (25X47X15)BEARING (25X47X15)
-
951643-49002 DUST SEALDUST SEAL
-
1051631-28000 NUTNUT
-
1151311-01D00 HEAD, STEERING STEMHEAD, STEERING STEM
-
1207130-08303 BOLT, STEM HEADBOLT, STEM HEAD
-
1356240-01D00 CUSHION, STEM HEADCUSHION, STEM HEAD
-
1456243-01D00 SPACER, STEM HEADSPACER, STEM HEAD
-
1551353-05C00 BOLT, UPPERBOLT, UPPER
-
1651356-22012 WASHERWASHER
-
1735950-43431 REFLEX REFLECTOR ASSY.REFLEX REFLECTOR ASSY.
-
1808316-20053 NUTNUT
