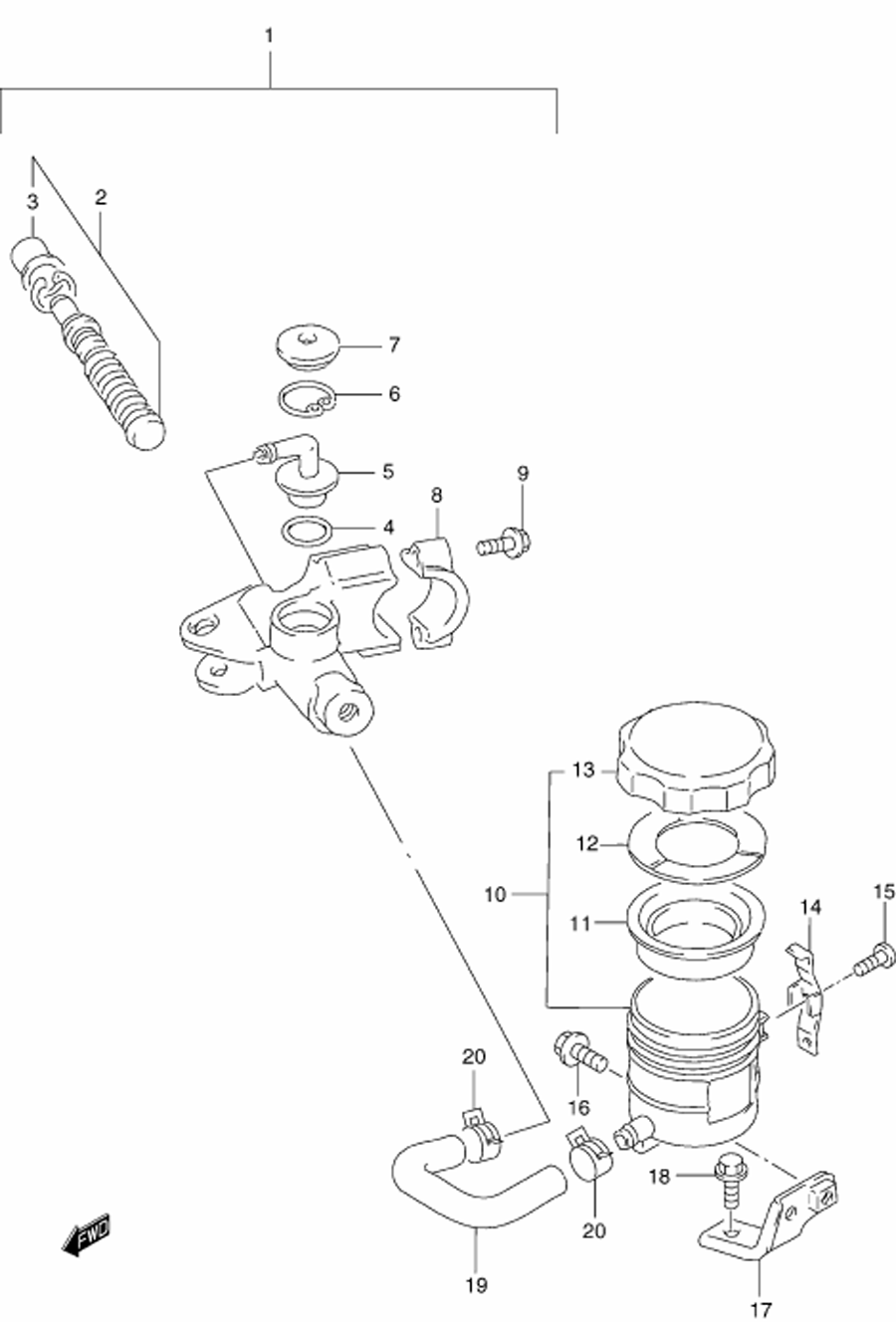

BRAKE - FRONT MASTER CYLINDER для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
159600-17C00 CYLINDER ASSY., MASTER (FRONT)CYLINDER ASSY., MASTER (FRONT)
-
259600-45850 ...PISTON/CUP SET...PISTON/CUP SET
-
359666-44300 ......BOOT......BOOT
-
469686-34200 ...O-RING...O-RING
-
559672-17C00 ...CONNECTOR...CONNECTOR
-
669674-00B20 ...CIRCLIP...CIRCLIP
-
759673-17C00 ...COVER, DUST...COVER, DUST
-
859671-36500 ...HOLDER...HOLDER
-
959675-19C00 ...BOLT...BOLT
-
1059740-07D00 TANK ASSY., RESERVOIRTANK ASSY., RESERVOIR
-
1159667-18441 ...DIAPHRAGM...DIAPHRAGM
-
1259668-18441 ...PLATE...PLATE
-
1359669-07D00 ...CAP...CAP
-
1459743-17C00 PLATE, TANK CAPPLATE, TANK CAP
-
1502142-04103 SCREWSCREW
-
1601550-06123 BOLTBOLT
-
1759750-33E01 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1801550-06123 BOLTBOLT
-
1959731-17E00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2059735-17C00 CLAMP, HOSECLAMP, HOSE
