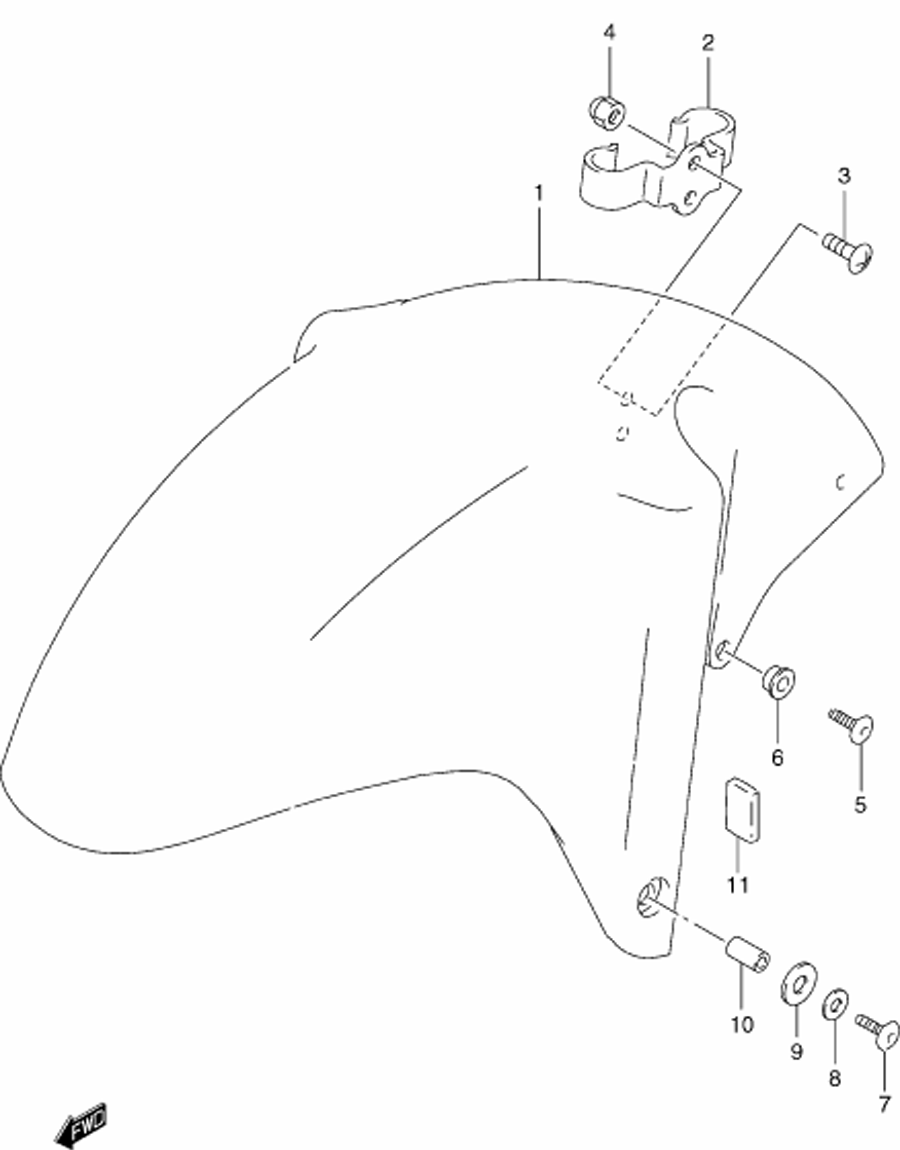

FENDER - FRONT для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
1-453110-33E60 FENDER (FRONT) ( FOR L99 - WHITE/BLUE)FENDER (FRONT) ( FOR L99 - WHITE/BLUE)
-
1-653110-33E40-Y9H FENDER (FRONT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)FENDER (FRONT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
-
1-753110-33E40-Y7E FENDER (FRONT) (Y7E - BLUE) (FOR CB3 - BLACK)FENDER (FRONT) (Y7E - BLUE) (FOR CB3 - BLACK)
-
253117-33E10 ...CLAMP, BRAKE HOSE...CLAMP, BRAKE HOSE
-
302142-05103 ...SCREW...SCREW
-
408313-10053 ...NUT...NUT
-
509139-06030 SCREW (REAR)SCREW (REAR)
-
609161-06021 WASHERWASHER
-
709139-06030 SCREW (FRONT)SCREW (FRONT)
-
809160-06079 WASHERWASHER
-
953121-33E00 WASHER, FENDER (FRONT)WASHER, FENDER (FRONT)
-
1009180-06258 SPACERSPACER
-
1133652-41520 CUSHIONCUSHION
