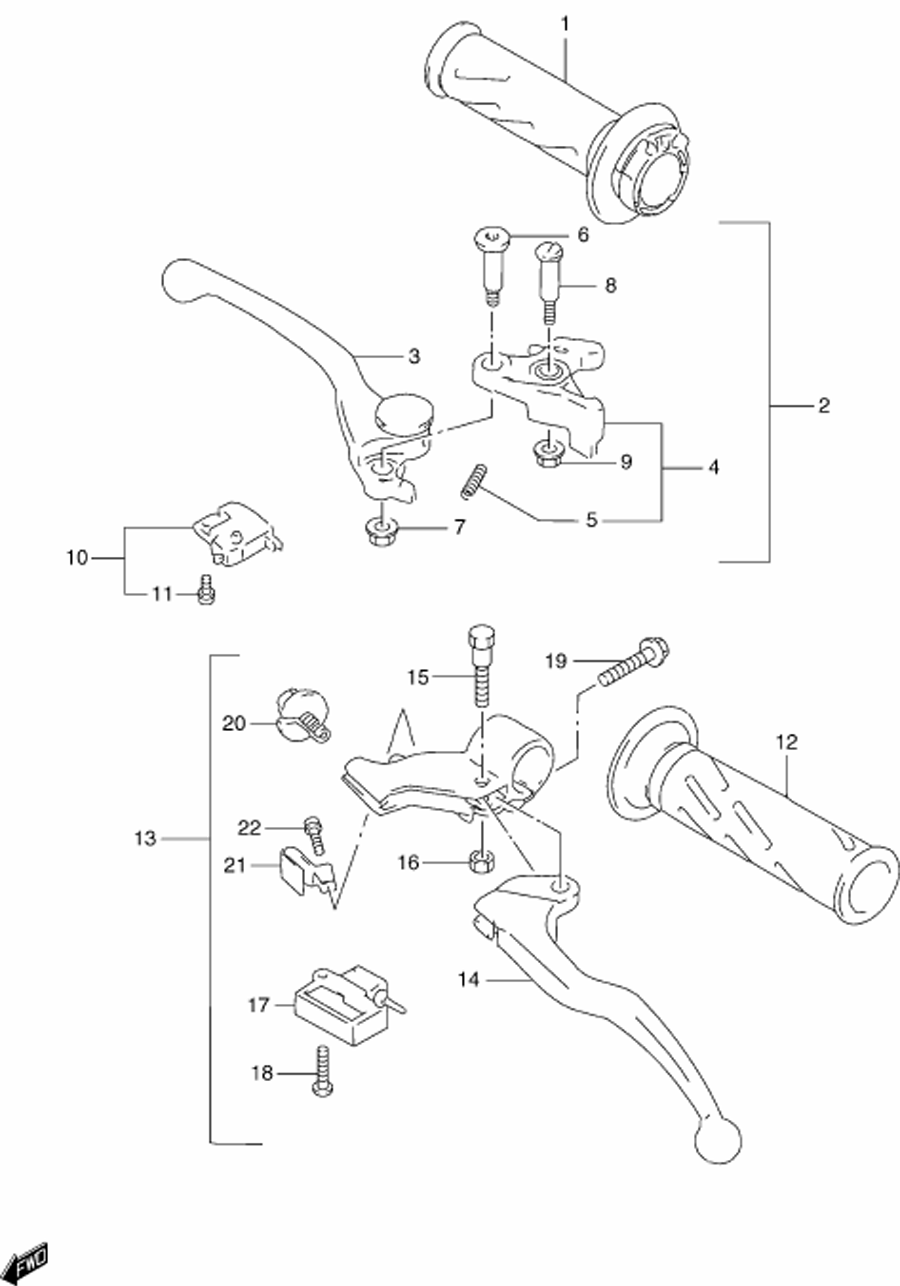

HANDLEBAR - LEVERS для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
157110-46E01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-32C10 LEVER ASSY., BRAKELEVER ASSY., BRAKE
-
357420-32C00 ...LEVER, ADJUST...LEVER, ADJUST
-
457430-32C10 ...KNOCKER...KNOCKER
-
557438-32C00 ......SPRING......SPRING
-
657437-32C01 ...BOLT, LEVER...BOLT, LEVER
-
708319-31063 ...NUT...NUT
-
857431-17C00 ...BOLT, KNOCKER...BOLT, KNOCKER
-
908316-10063 ...NUT...NUT
-
1057460-17C00 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
1157465-17C00 ...SCREW...SCREW
-
1257211-22D01 GRIP (LEFT)GRIP (LEFT)
-
1357500-33E20 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
1457621-33E00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1557431-45C00 ...BOLT...BOLT
-
1608319-21063 ...NUT...NUT
-
1757560-05A00 ...SWITCH ASSY., CLUTCH...SWITCH ASSY., CLUTCH
-
1802122-03208 ...SCREW...SCREW
-
1901547-06203 ...BOLT, HOLDER...BOLT, HOLDER
-
2057641-33E20 ...NUT, CABLE ADJUSTER...NUT, CABLE ADJUSTER
-
2157644-33E00 ...SPRING...SPRING
-
2257642-33E00 ...SCREW, SPRING...SCREW, SPRING
