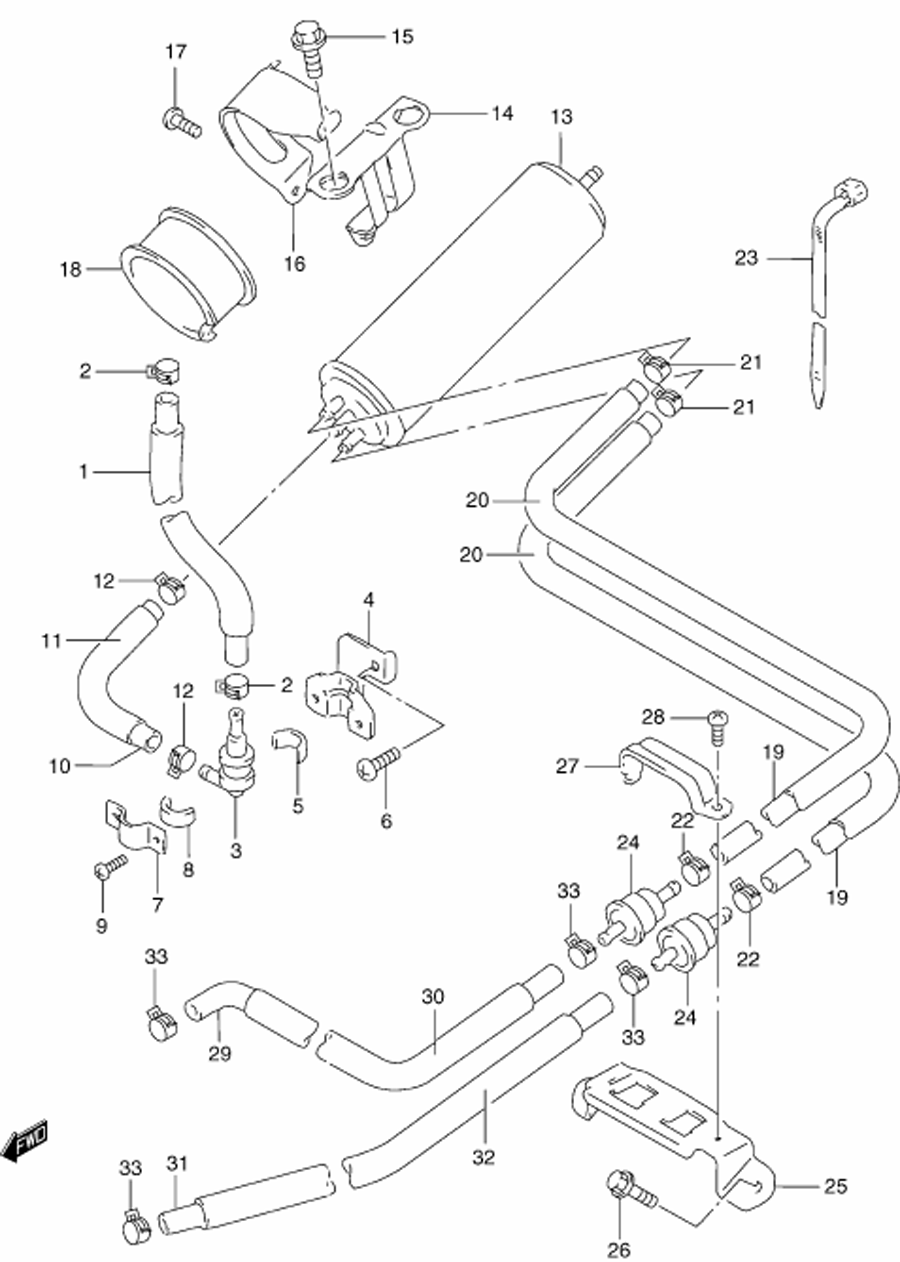

CANISTER - CALIF. ONLY для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
109355-54116-600 HOSE, TANK & VALVE (L:600R50)HOSE, TANK & VALVE (L:600R50)
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
444890-33E01 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
544894-24A00 ...CUSHION...CUSHION
-
602142-06123 SCREW, BRACKETSCREW, BRACKET
-
744892-24A00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
844894-24A00 ...CUSHION...CUSHION
-
902142-04083 SCREW, PLATESCREW, PLATE
-
1009355-54116-600 HOSE, CANISTER CHARGE (L:600R380)HOSE, CANISTER CHARGE (L:600R380)
-
1109351-14152-600 PROTECTOR, CHARGE (L:600R330)PROTECTOR, CHARGE (L:600R330)
-
1209401-11413 CLIPCLIP
-
1317210-26E00 CANISTERCANISTER
-
1444880-33E00 BRACKET, CANISTERBRACKET, CANISTER
-
1509116-06168 BOLT, BRACKETBOLT, BRACKET
-
1644882-33E00 HOLDER, CANISTERHOLDER, CANISTER
-
1702142-06123 SCREW, HOLDERSCREW, HOLDER
-
1844883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
1909359-54111-600 HOSE, PURGE (L:600R350)HOSE, PURGE (L:600R350)
-
2009351-14152-600 PROTECTOR, PURGE (L:600R310)PROTECTOR, PURGE (L:600R310)
-
2109401-11407 CLIPCLIP
-
2209401-11413 CLIPCLIP
-
23-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
23-209407-18402 CLAMP (L:165)CLAMP (L:165)
-
2444250-48B00 VALVE, PURGEVALVE, PURGE
-
2544885-33E00 BRACKET, PURGE VALVEBRACKET, PURGE VALVE
-
2601550-06123 BOLT, BRACKETBOLT, BRACKET
-
2744884-31E00 HOLDER, PURGE VALVEHOLDER, PURGE VALVE
-
2802112-05083 SCREWSCREW
-
2909355-54115-600 HOSE, CARB (RIGHT) (L:600R250)HOSE, CARB (RIGHT) (L:600R250)
-
3009351-14152-600 PROTECTOR (RIGHT) (L:600R210)PROTECTOR (RIGHT) (L:600R210)
-
3109355-54115-600 HOSE, CARB (LEFT) (L:600R290)HOSE, CARB (LEFT) (L:600R290)
-
3209351-14152-600 PROTECTOR (LEFT) (L:600R250)PROTECTOR (LEFT) (L:600R250)
-
3309401-11413 CLIPCLIP
