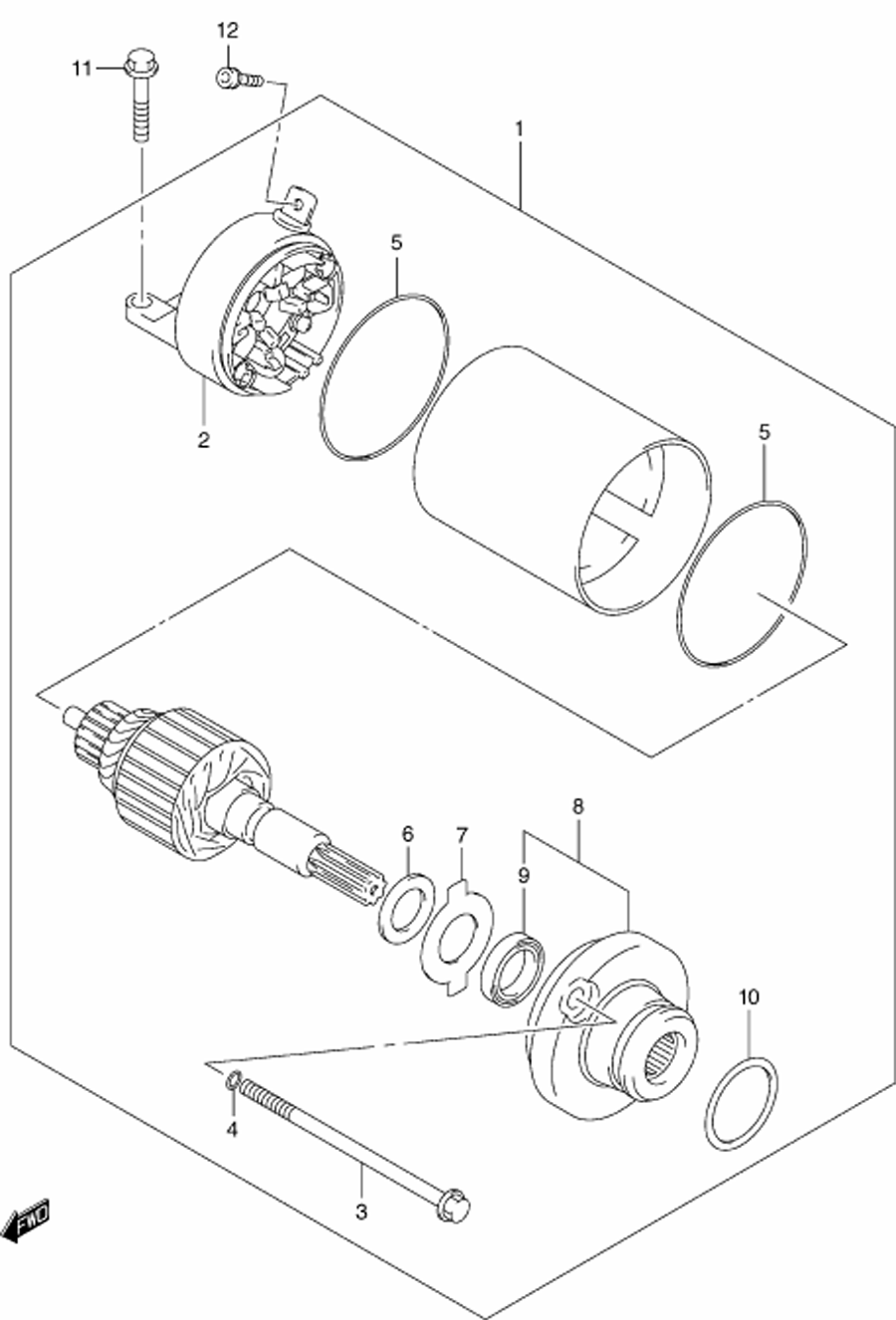

STARTING MOTOR для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
131100-34E01 MOTOR ASSY., STARTINGMOTOR ASSY., STARTING
-
231175-26F00 ...FRAME ASSY., COMMUTATOR END...FRAME ASSY., COMMUTATOR END
-
331281-34E00 ...BOLT...BOLT
-
431156-08F00 ...O-RING...O-RING
-
531264-32C10 ...O-RING...O-RING
-
631361-38300 ...SHIM...SHIM
-
731361-32C10 ...PLATE, LOCK...PLATE, LOCK
-
831150-08F00 BRACKETBRACKET
-
931153-49210 ......OIL SEAL......OIL SEAL
-
1009280-24003 ...O-RING (D:3.0,ID:24.5)...O-RING (D:3.0,ID:24.5)
-
1109128-06057 BOLB (6X20)BOLB (6X20)
-
1209137-05004 SCREW (5X8)SCREW (5X8)
