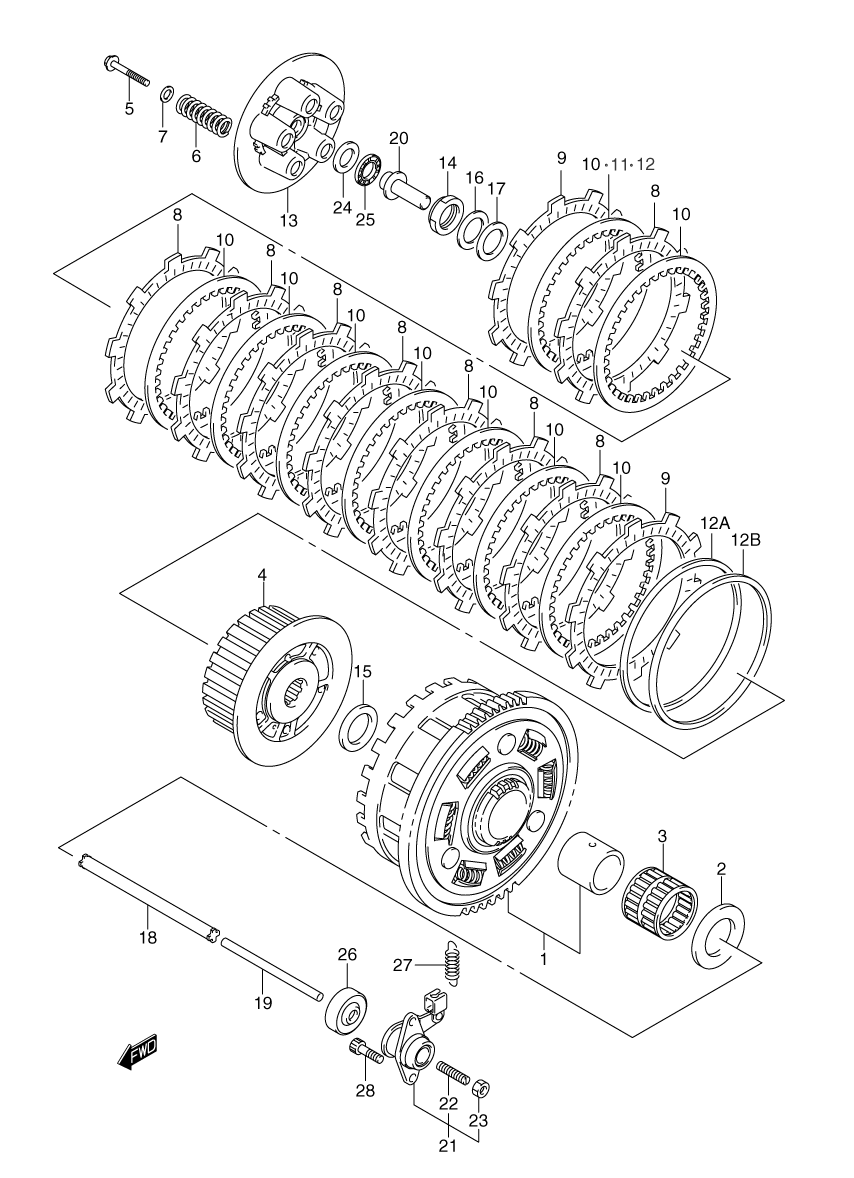

CLUTCH для Suzuki GSX-R1000 K1 - 2001 года выпуска
-
№АртикулНазвание
-
121200-40850 GEAR, PRIMARY DRIVEN ASSY.GEAR, PRIMARY DRIVEN ASSY.
-
209160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
309263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
421410-40F00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521482-40F00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
621413-40F00 SPRING, CLUTCHSPRING, CLUTCH
-
721414-29F00 WASHER, CLUTCH SPRINGWASHER, CLUTCH SPRING
-
821441-40F00 PLATE, CLUTCH DRIVE,NO.1PLATE, CLUTCH DRIVE,NO.1
-
921441-40F10 PLATE, CLUTCH DRIVE,NO.2PLATE, CLUTCH DRIVE,NO.2
-
1021451-40F00 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
1121451-40F10 PLATE, CLUTCH DRIVEN NO.2 (OPT)PLATE, CLUTCH DRIVEN NO.2 (OPT)
-
1221451-40F20 PLATE, CLUTCH DRIVEN NO.3 (OPT)PLATE, CLUTCH DRIVEN NO.3 (OPT)
-
1321462-40F00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1409159-24010 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1509160-25056 WASHER, CLUTCH SLEEVE THRWASHER, CLUTCH SLEEVE THR
-
1609164-24006 WASHER, CLUTCH WAVEWASHER, CLUTCH WAVE
-
1709181-25223 WASHER, SLEEVE HUB NUTWASHER, SLEEVE HUB NUT
-
1823110-38B00 ROD, CLUTCH PUSH (RIGHT)ROD, CLUTCH PUSH (RIGHT)
-
1923111-35F00 ROD, CLUTCH PUSH (LEFT)ROD, CLUTCH PUSH (LEFT)
-
2023121-31E00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2123200-35F01 SCREW,CLUTCH RELEASE ASSY.SCREW,CLUTCH RELEASE ASSY.
-
2209134-06010 ...SCREW (6X25)...SCREW (6X25)
-
2308310-00067 ...NUT...NUT
-
2409160-15045 WASHER, CLUTCH PUSHWASHER, CLUTCH PUSH
-
2509263-15003 BEARING, CLUTCH PUSHBEARING, CLUTCH PUSH
-
2609285-06011 SEAL, CLUTCH PUSH RODSEAL, CLUTCH PUSH ROD
-
2709443-09044 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
2801550-06163 BOLT, CLUTCH RELEASEBOLT, CLUTCH RELEASE
