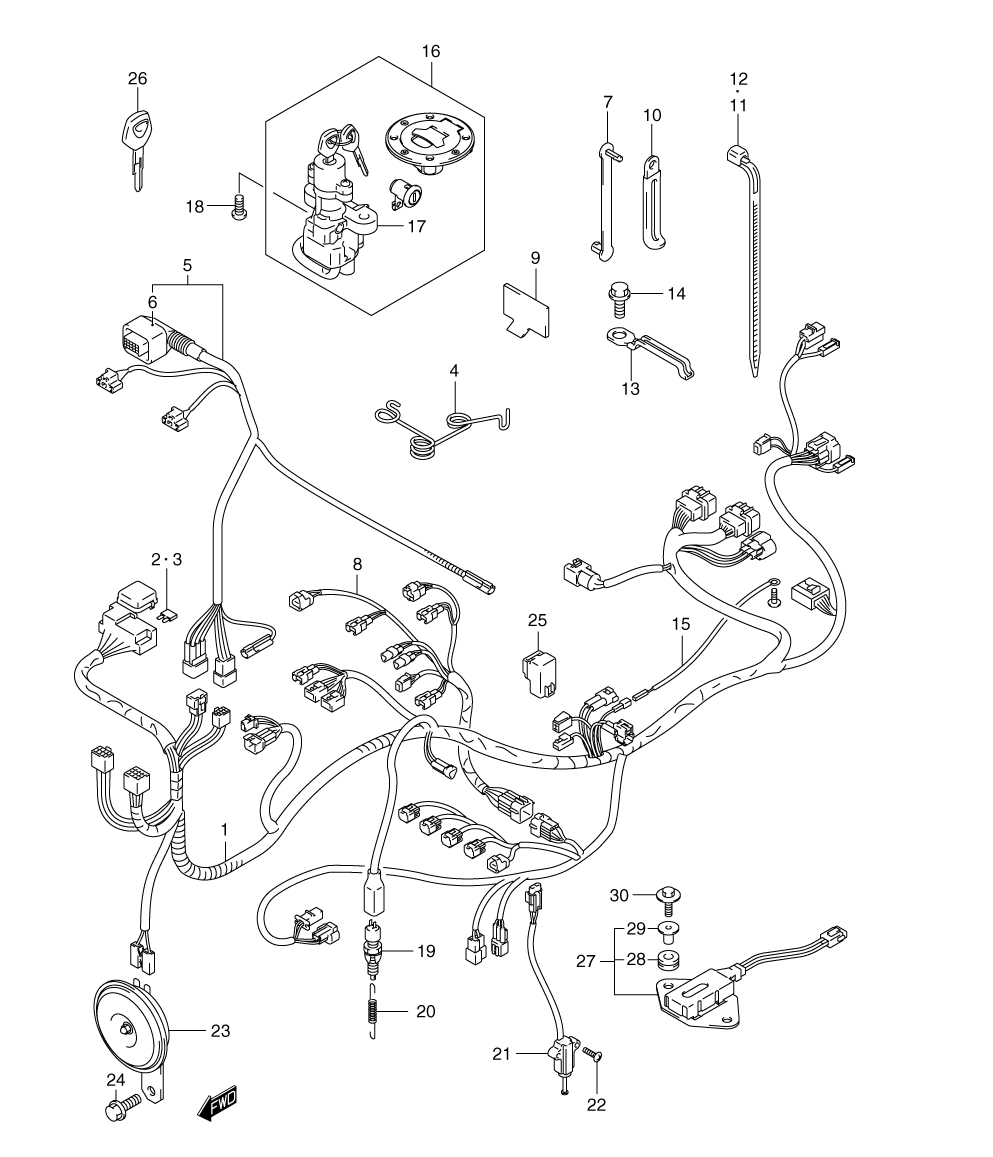

ELECTRICAL - WIRING HARNESS для Suzuki GSX-R1000 K1 - 2001 года выпуска
-
№АртикулНазвание
-
136610-40F00 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436619-40F00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-40F30 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
636618-35F00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
736651-48E00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
836859-40F00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
936920-35F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1009404-06431 CLAMP (L:80)CLAMP (L:80)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
12-109407-11402 CLAMP (L:90)CLAMP (L:90)
-
12-209407-14408 CLAMP (L:120)CLAMP (L:120)
-
12-309407-17401 CLAMP (L:150)CLAMP (L:150)
-
1309403-06322 CLIPCLIP
-
1401550-06123 BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1536851-35F00 WIRE, OIL PRESSURE LEADWIRE, OIL PRESSURE LEAD
-
16-137000-35840 LOCK SETLOCK SET
-
16-237000-35850 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1737100-35F20 ...LOCK, STEERING ASSY....LOCK, STEERING ASSY.
-
1809139-08016 SCREWSCREW
-
1937740-24A00 SWITCH, STOP LAMP ASSY.SWITCH, STOP LAMP ASSY.
-
2009443-06042 SPRINGSPRING
-
2137840-35F00 SWITCH, (SIDE) STAND ASSY.SWITCH, (SIDE) STAND ASSY.
-
2201550-06203 BOLTBOLT
-
2338500-08F10 HORN ASSY.HORN ASSY.
-
2401550-08163 BOLTBOLT
-
25-138740-24X50 RELAY, FUEL PUMP ASSY.RELAY, FUEL PUMP ASSY.
-
25-238740-24X50 RELAY, COOLING FAN ASSY.RELAY, COOLING FAN ASSY.
-
2637146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
2736510-39F00 RESISTOR ASSY.RESISTOR ASSY.
-
2809320-10015 ...CUSHION...CUSHION
-
2909180-06319 ...SPACER (6.5X10X11.6)...SPACER (6.5X10X11.6)
-
3009116-06131 BOLT, RESISTOR (6X25)BOLT, RESISTOR (6X25)
