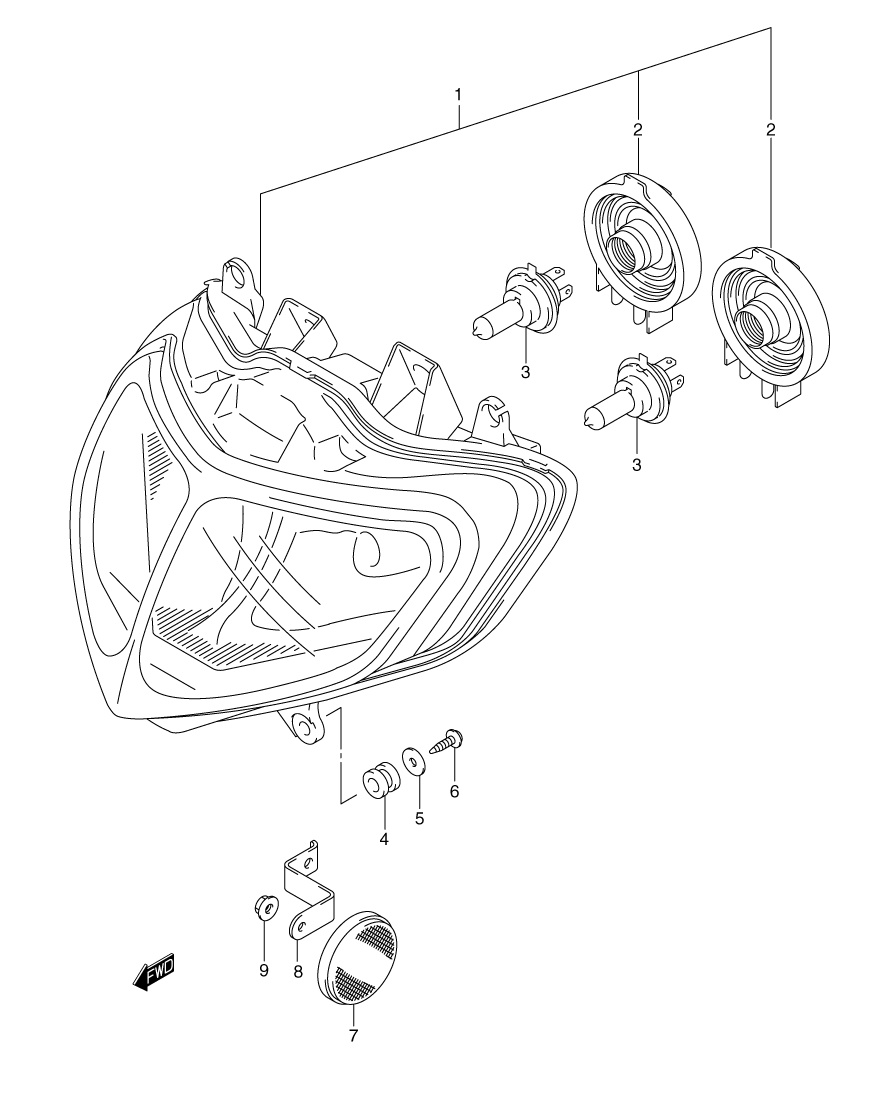

HEADLAMP для Suzuki GSX-R1000 K1 - 2001 года выпуска
-
№АртикулНазвание
-
135100-35F60-999 HEADLAMP ASSY.HEADLAMP ASSY.
-
235125-77A00 ...COVER, SOCKET...COVER, SOCKET
-
309471-12185 BULB (12V,60/55W)BULB (12V,60/55W)
-
409320-09039 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
509160-05045 WASHER (5.5X18X1)WASHER (5.5X18X1)
-
609132-05048 SCREW, HEADLAMP (5X16)SCREW, HEADLAMP (5X16)
-
735950-14A10 REFLEX-REFLECTOR, (FRONT) ASSY.REFLEX-REFLECTOR, (FRONT) ASSY.
-
835956-35F00 BRACKET, (FRONT) (SIDE) (REAR)BRACKET, (FRONT) (SIDE) (REAR)
-
908316-10053 NUTNUT
