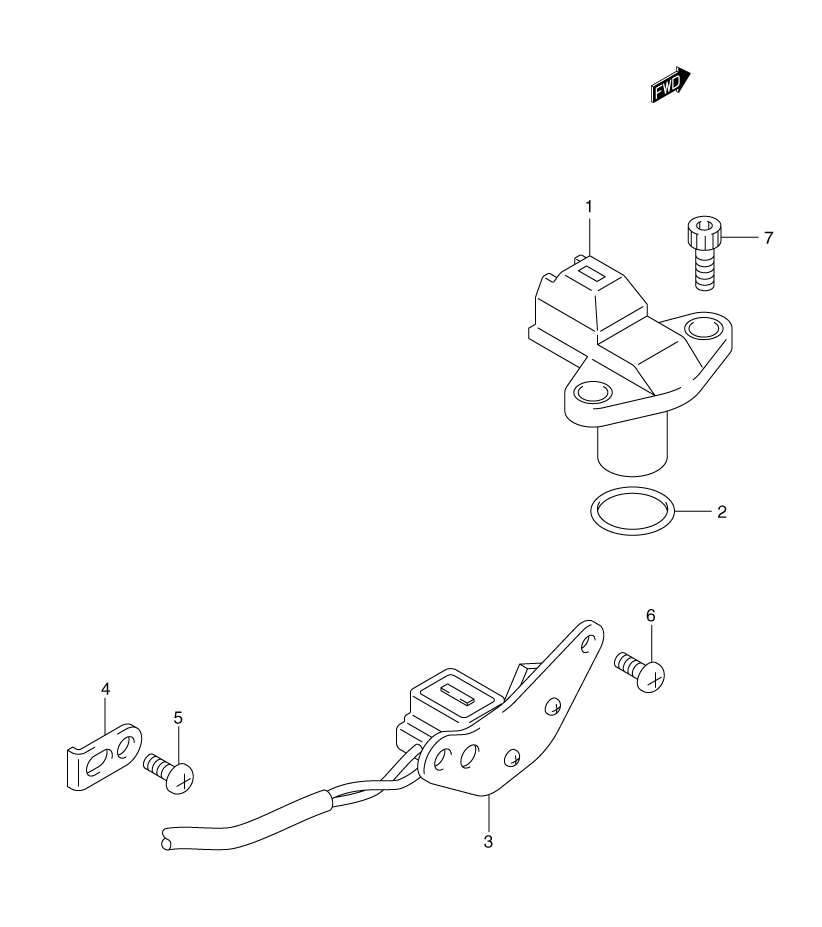

IGNITER ASSY. W/ SIGNAL GENERATOR для Suzuki GSX-R1000 K1 - 2001 года выпуска
-
№АртикулНазвание
-
132160-02F10 SENSOR, CAM POSITION ASSY.SENSOR, CAM POSITION ASSY.
-
232161-02F00 ...PACKING...PACKING
-
333110-35F00 STATOR, SIGNAL GENERATORSTATOR, SIGNAL GENERATOR
-
433115-33E00 CLAMP, SIGNAL GENERATORCLAMP, SIGNAL GENERATOR
-
502112-05103 SCREW, CLAMPSCREW, CLAMP
-
602112-05103 SCREW, STATORSCREW, STATOR
-
707130-06163 BOLT, CAM POSITIONBOLT, CAM POSITION
