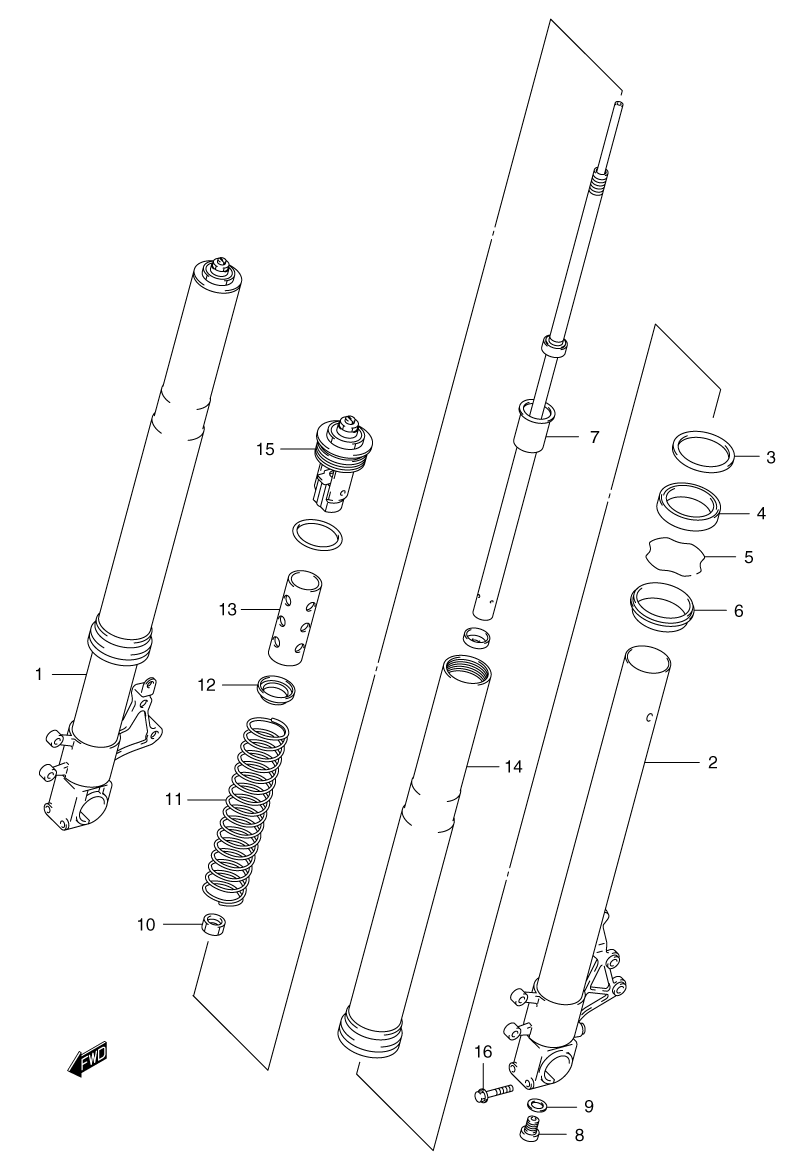

SUSPENSION - FRONT FORK для Suzuki GSX-R1000 K1 - 2001 года выпуска
-
№АртикулНазвание
-
51103-40F10 DAMPER ASSY., (FRONT) (RIGHT) FORKDAMPER ASSY., (FRONT) (RIGHT) FORK
-
51104-40F00 DAMPER ASSY., (FRONT) (LEFT) FORKDAMPER ASSY., (FRONT) (LEFT) FORK
-
151110-40F00 ...TUBE, (INNER) (RIGHT)...TUBE, (INNER) (RIGHT)
-
251120-40F00 ...TUBE, (INNER) (LEFT)...TUBE, (INNER) (LEFT)
-
351158-40F00 ...WASHER...WASHER
-
451153-40F00 ...SEAL, OIL...SEAL, OIL
-
551156-14200 ...RING, STOPPER...RING, STOPPER
-
651173-02FA0 ...SEAL, DUST...SEAL, DUST
-
751146-40F00 ...CYLINDER...CYLINDER
-
851147-40C00 ...BOLT...BOLT
-
951148-40300 ...GASKET...GASKET
-
1051129-24F00 ...NUT...NUT
-
1151171-40F00 ...SPRING, (FRONT)...SPRING, (FRONT)
-
1251158-24F00 ...GUIDE, SPRING...GUIDE, SPRING
-
1351176-40F00 ...SPACER, SPRING...SPACER, SPRING
-
1451130-40F00 ...TUBE, (OUTER) (GOLD)...TUBE, (OUTER) (GOLD)
-
1551351-40F00 ...CAP, (FRONT) FORK...CAP, (FRONT) FORK
-
1651328-40F00 BOLTBOLT
