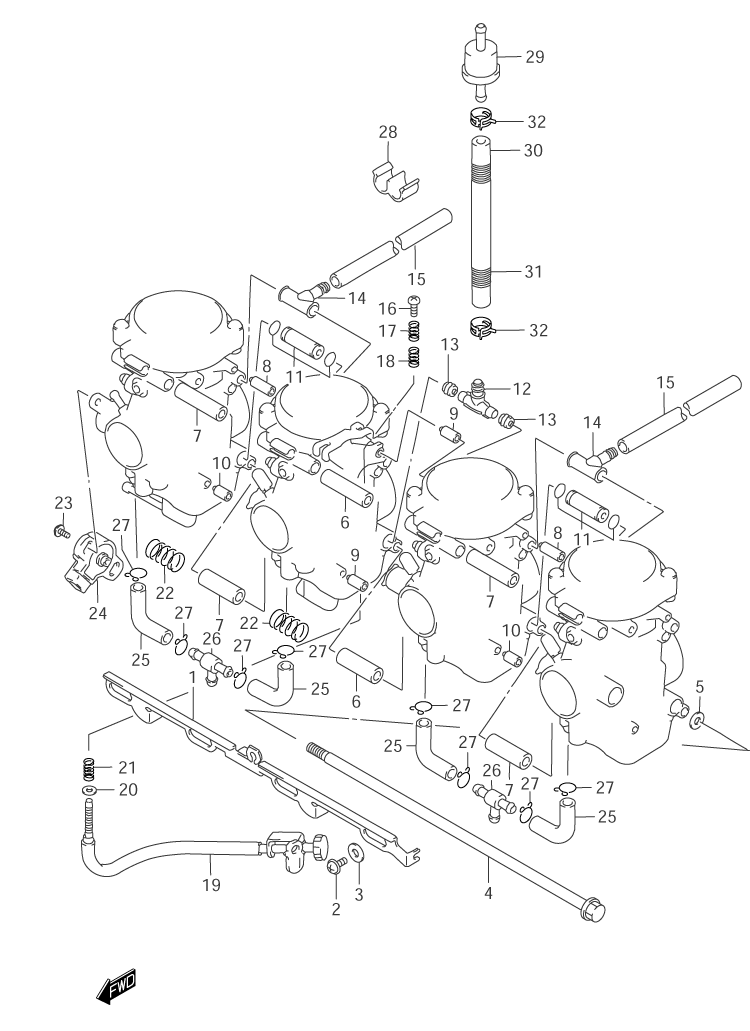

CARBURETOR COMPONENTS для Suzuki GSX600F K1 - 2001 года выпуска
-
№АртикулНазвание
-
113413-19E00 LEVERLEVER
-
202142-04083 SCREWSCREW
-
313557-33E00 PACKINGPACKING
-
413612-33E00 BOLTBOLT
-
508322-01063 WASHERWASHER
-
613685-19E20 PIPEPIPE
-
713685-34E00 PIPEPIPE
-
813685-19E00 RODROD
-
913685-19E10 RODROD
-
1013685-19E30 RODROD
-
1113685-31310 PIPE ASSY.PIPE ASSY.
-
1213685-16E00 NIPPLENIPPLE
-
1313673-44B00 SEALSEAL
-
1413683-01DB0 HOSEHOSE
-
15-213684-40C00 HOSEHOSE
-
1613267-44B00 SCREWSCREW
-
1713271-44B00 SPRINGSPRING
-
18-213268-96111 SPRINGSPRING
-
1913267-19E00 ADJUST SCREW ASSY.ADJUST SCREW ASSY.
-
2013615-43010 WASHERWASHER
-
2113271-19E00 SPRINGSPRING
-
2213573-06C10 SPRINGSPRING
-
2313550-13D60 SENSOR ASSY., THROTTLESENSOR ASSY., THROTTLE
-
24-213605-20C00 SCREW, SENSORSCREW, SENSOR
-
2513684-48B10 HOSE (CALIFORNIA ONLY)HOSE (CALIFORNIA ONLY)
-
2613685-48B00 NIPPLE (CALIFORNIA ONLY)NIPPLE (CALIFORNIA ONLY)
-
2709401-10410 CLIP (CALIFORNIA ONLY)CLIP (CALIFORNIA ONLY)
-
2809408-00100 CLAMP, AIR VENT HOSECLAMP, AIR VENT HOSE
-
2915410-19E00 STRAINER, FUELSTRAINER, FUEL
-
3009355-70125-600 HOSE, FUEL (L:600->140)HOSE, FUEL (L:600->140)
-
3109440-14030 PROTECTORPROTECTOR
-
2209401-11407 CLIPCLIP
