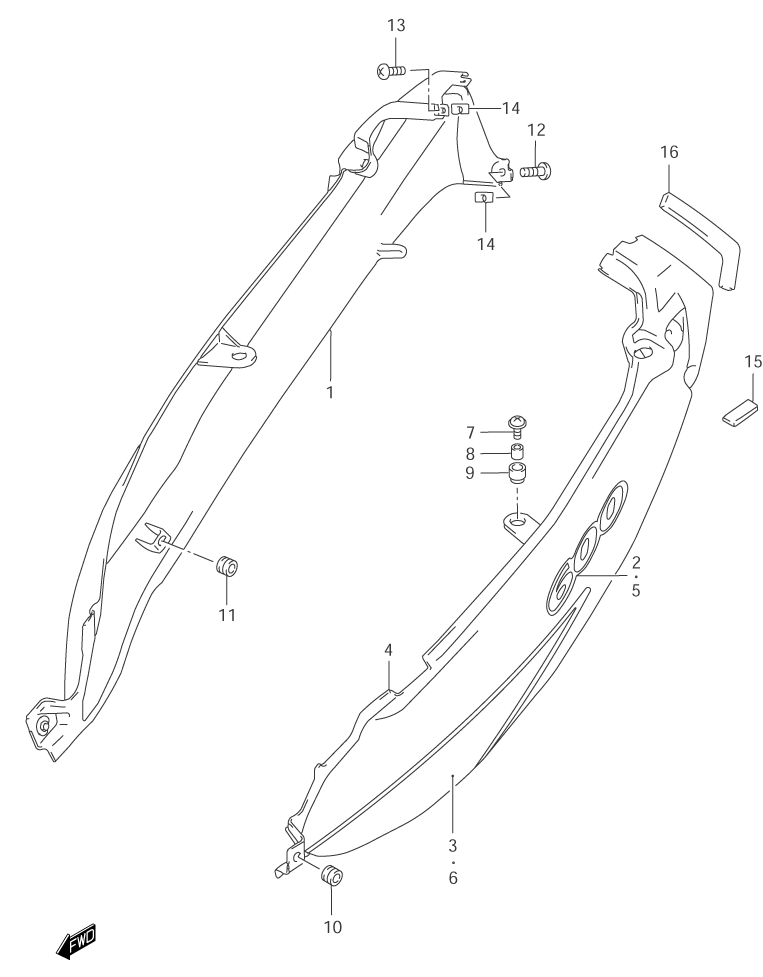

SIDE COVER для Suzuki GSX600F K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-147110-08F40-Y9H COVER, FRAME (RIGHT) (Y9H - YELLOW)COVER, FRAME (RIGHT) (Y9H - YELLOW)
-
1-247110-08F40-YC2 COVER, FRAME (RIGHT) (YC2 - BLUE)COVER, FRAME (RIGHT) (YC2 - BLUE)
-
2-168131-08F40-EE8 ...EMBLEM (RIGHT) (EE8 - BLACK/SILVER/YELLOW) (FOR Y9H - YELLOW)...EMBLEM (RIGHT) (EE8 - BLACK/SILVER/YELLOW) (FOR Y9H - YELLOW)
-
2-268131-08F40-EE9 ...EMBLEM (RIGHT) (EE9 - BLACK/SILVER/BLUE) (FOR YC2 - BLUE)...EMBLEM (RIGHT) (EE9 - BLACK/SILVER/BLUE) (FOR YC2 - BLUE)
-
3-168135-08F00-BU4 ...TAPE (RIGHT) (BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)...TAPE (RIGHT) (BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
-
3-268135-08F00-EE3 ...TAPE (RIGHT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)...TAPE (RIGHT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
-
4-147210-08F40-Y9H COVER, FRAME (LEFT (Y9H - YELLOW)COVER, FRAME (LEFT (Y9H - YELLOW)
-
4-247210-08F40-YC2 COVER, FRAME (LEFT) (YC2 - BLUE)COVER, FRAME (LEFT) (YC2 - BLUE)
-
5-168131-08F40-EE8 ...EMBLEM (LEFT) (EE8 - BLACK/SILVER/YELLOW) (FOR Y9H - YELLOW)...EMBLEM (LEFT) (EE8 - BLACK/SILVER/YELLOW) (FOR Y9H - YELLOW)
-
5-268131-08F40-EE9 ...EMBLEM (LEFT) (EE9 - BLACK/SILVER/BLUE) (FOR YC2 - BLUE)...EMBLEM (LEFT) (EE9 - BLACK/SILVER/BLUE) (FOR YC2 - BLUE)
-
6-168145-08F00-BU4 ...TAPE (LEFT) (BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)...TAPE (LEFT) (BU4 - GRAY/YELLOW/BLACK) (FOR Y9H - YELLOW)
-
6-268145-08F00-EE3 ...TAPE (LEFT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)...TAPE (LEFT) (EE3 - BLACK/YELLOW/BLUE) (FOR YC2 - BLUE)
-
709136-06105 SCREW (UPPER)SCREW (UPPER)
-
809180-06286 SPACERSPACER
-
909320-10045 CUSHIONCUSHION
-
1009320-08028 CUSHION (FRONT)CUSHION (FRONT)
-
1109320-08018 CUSHION (CENTER)CUSHION (CENTER)
-
1203241-15163 SCREW (LOWER)SCREW (LOWER)
-
1303241-15123 SCREW (REAR)SCREW (REAR)
-
1409148-05038 NUTNUT
-
1544894-24A00 CUSHION (REAR)CUSHION (REAR)
-
1647161-08F00 CUSHIONCUSHION
