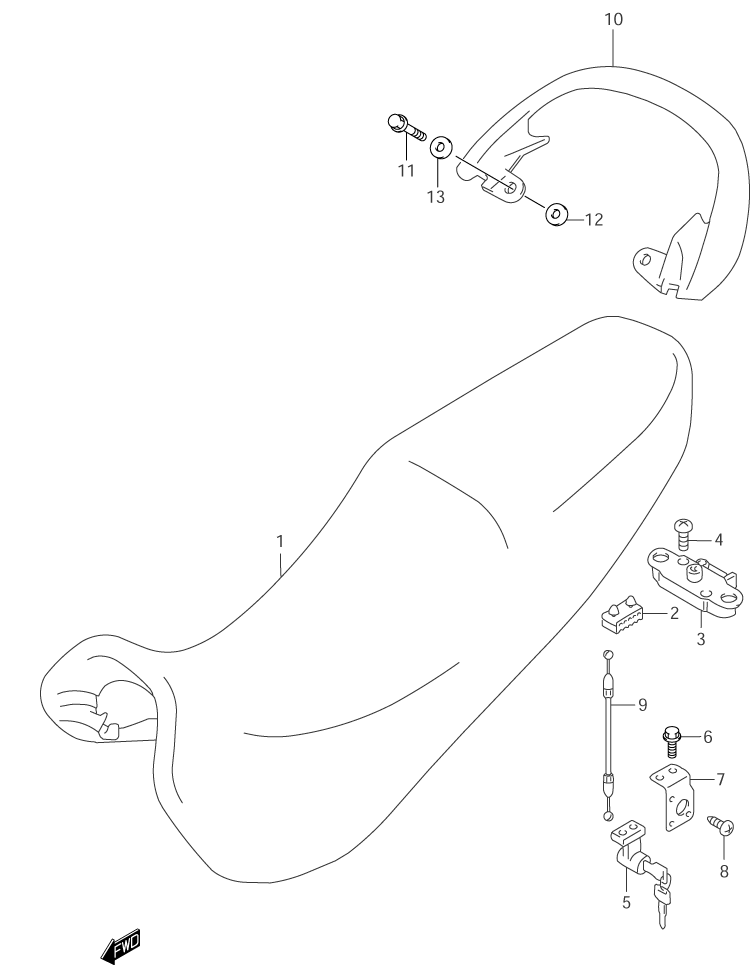

SEAT для Suzuki GSX600F K1 - 2001 года выпуска
-
№АртикулНазвание
-
145100-08F00-V09 SEAT ASSY.SEAT ASSY.
-
245149-31300 ...CUSHION...CUSHION
-
345220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
402122-06303 SCREWSCREW
-
595700-31840 LOCK SET, SEATLOCK SET, SEAT
-
601547-05103 BOLTBOLT
-
745289-03F00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
803141-14123 SCREWSCREW
-
945280-25D00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
10-346211-03F11-YC2 HANDLE, PILLION RIDER (BLUE)HANDLE, PILLION RIDER (BLUE)
-
10-446211-03F11-Y9H HANDLE, PILLION RIDER (YELLOWHANDLE, PILLION RIDER (YELLOW
-
1101551-08303 BOLTBOLT
-
1246212-03F10 CUSHION (17X24X1.5)CUSHION (17X24X1.5)
-
1309160-08501 WASHER (8.5X24X2.30)WASHER (8.5X24X2.30)
