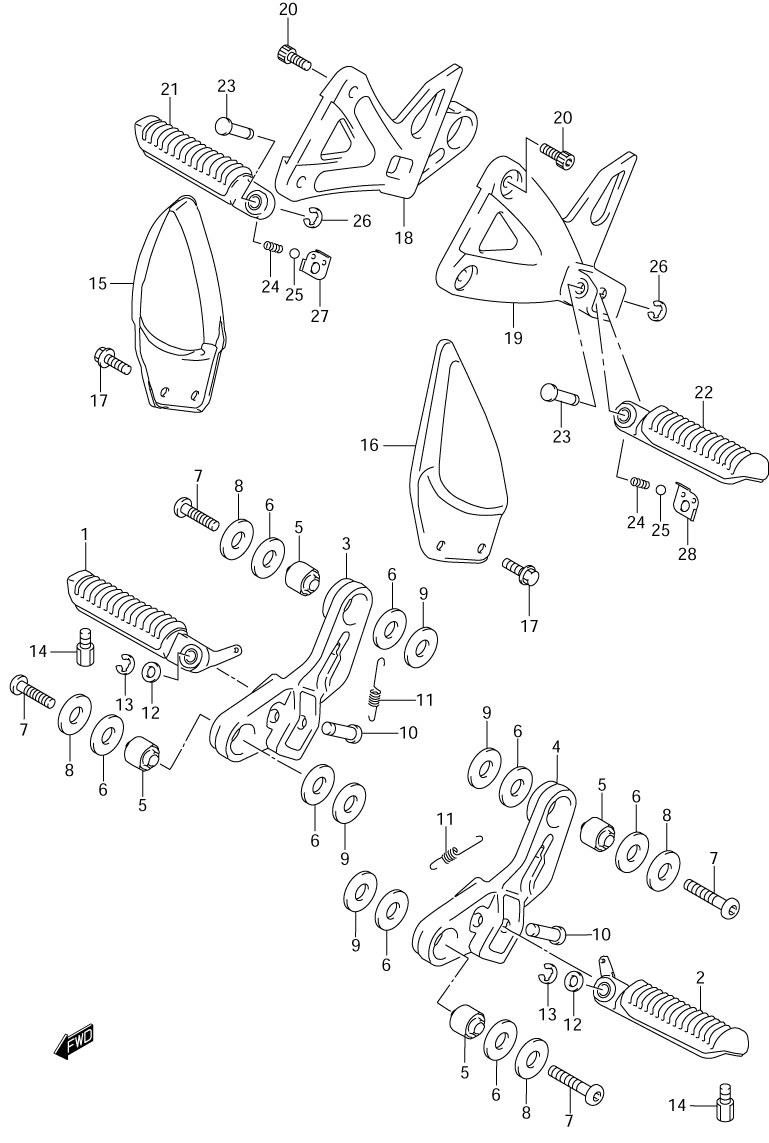

FOOTREST для Suzuki GSX600F K1 - 2001 года выпуска
-
№АртикулНазвание
-
143510-19C31 FOOTREST ASSY. (FRONT) (RIGHT)FOOTREST ASSY. (FRONT) (RIGHT)
-
243520-19C31 FOOTREST ASSY. (FRONT) (LEFT)FOOTREST ASSY. (FRONT) (LEFT)
-
343531-19C00 HOLDER, FOOTREST(FRONT) (RIGHT)HOLDER, FOOTREST(FRONT) (RIGHT)
-
443541-19C00 HOLDER, FOOTREST (FRONT) (LEFT)HOLDER, FOOTREST (FRONT) (LEFT)
-
509319-08033 BUSH, HOLDERBUSH, HOLDER
-
609161-12006 WASHER, HOLDERWASHER, HOLDER
-
709106-08137 BOLTBOLT
-
809160-08138 WASHER (OUTER)WASHER (OUTER)
-
909160-08503 WASHER (INNER)WASHER (INNER)
-
1009208-08010 PINPIN
-
1109443-08049 SPRINGSPRING
-
1208322-01083 WASHERWASHER
-
1308332-11063 E-RINGE-RING
-
1443576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1543571-08F00 GUARD, FOOTREST (FRONT) (RIGHT)GUARD, FOOTREST (FRONT) (RIGHT)
-
1643581-08F00 GUARD, FOOTREST (FRONT) (LEFT)GUARD, FOOTREST (FRONT) (LEFT)
-
1709106-08128 BOLTBOLT
-
1843811-08F00 BRACKET, PILLION (RIGHT)BRACKET, PILLION (RIGHT)
-
1943821-08F00 BRACKET, PILLION (LEFT)BRACKET, PILLION (LEFT)
-
2009106-08150 BOLT, BRACKETBOLT, BRACKET
-
2143610-20C01 BAR, PILLION FOOTREST (RIGHT)BAR, PILLION FOOTREST (RIGHT)
-
2243710-20C01 BAR, PILLION FOOTREST (LEFT)BAR, PILLION FOOTREST (LEFT)
-
2309208-08011 PINPIN
-
2409440-05005 SPRINGSPRING
-
2506111-07004 BALLBALL
-
2608332-11063 E-RINGE-RING
-
2743816-23E00 PLATE, PILLION (RIGHT)PLATE, PILLION (RIGHT)
-
2843826-23E00 PLATE, PILLION (LEFT)PLATE, PILLION (LEFT)
