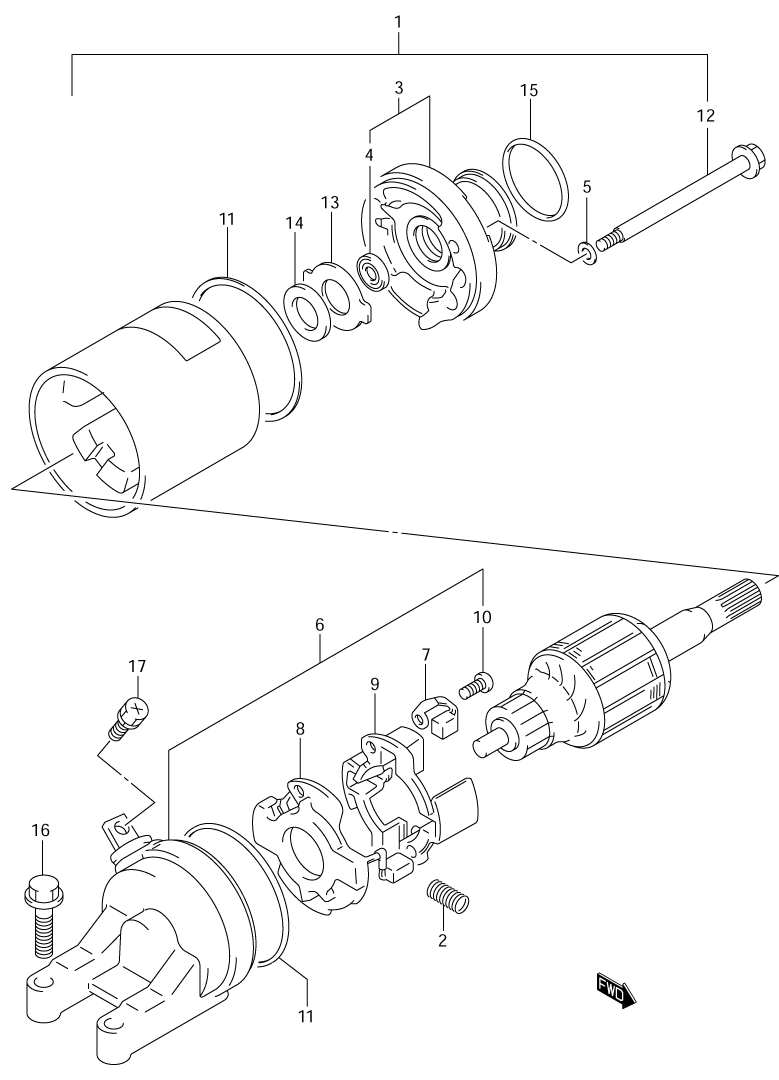

STARTING MOTOR для Suzuki GSX600F K1 - 2001 года выпуска
-
№АртикулНазвание
-
131100-08F00 MOTOR ASSY., STARTINGMOTOR ASSY., STARTING
-
231135-32C10 ...SPRING...SPRING
-
331150-08F00 ...BRACKET...BRACKET
-
431153-49210 ......OIL SEAL......OIL SEAL
-
531156-08F00 ...O-RING...O-RING
-
631175-08F00 ...FRAME ASSY., COMMUTATOR...FRAME ASSY., COMMUTATOR
-
731132-32C10 ......BRUSH......BRUSH
-
831130-32C20 ......BRUSH SUB ASSY.......BRUSH SUB ASSY.
-
931133-32C10 ......HOLDER, BRUSH......HOLDER, BRUSH
-
1002112-34123 ......SCREW......SCREW
-
1131264-32C10 ...O-RING...O-RING
-
1231281-32C10 ...BOLT...BOLT
-
1331361-32C10 ...PLATE, LOCK...PLATE, LOCK
-
1431361-38300 ...SHIM, NO.3...SHIM, NO.3
-
1509280-24003 ...O-RING (D:3,ID:24.5)...O-RING (D:3,ID:24.5)
-
1609128-06024 BOLT, MOTORBOLT, MOTOR
-
1709137-05004 SCREW, MOT LEAD (5X8)SCREW, MOT LEAD (5X8)
