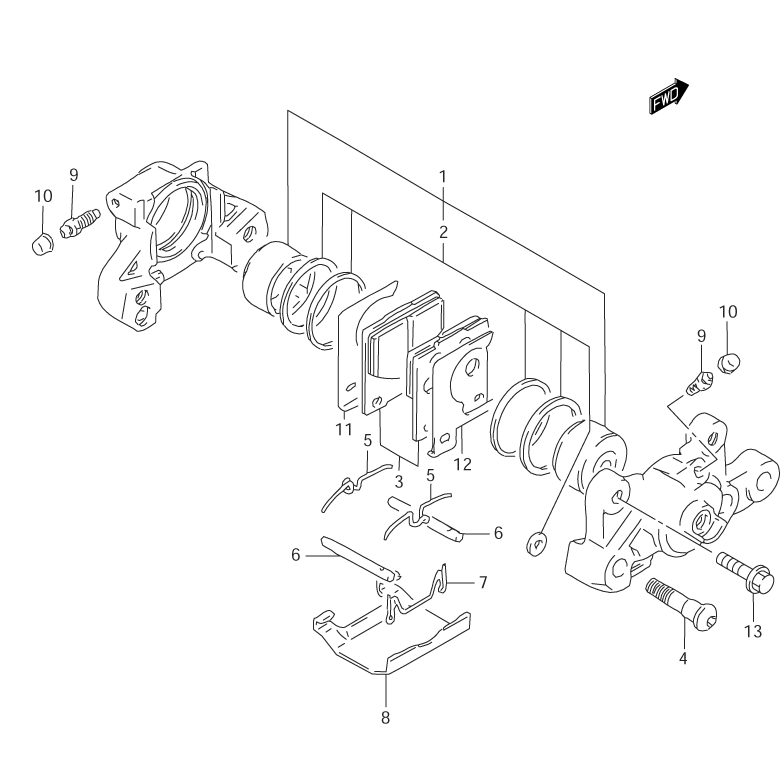

BRAKE - REAR CALIPER для Suzuki TL-1000R K2 - 2002 года выпуска
-
№АртикулНазвание
-
1A69100-05CB0 CALIPER ASSY. (REAR)CALIPER ASSY. (REAR)
-
169100-05850 ...PISTON SET...PISTON SET
-
269100-32820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
369100-05890 ...PAD SET...PAD SET
-
459145-05C50 ...BOLT...BOLT
-
559143-16700 ...SPRING...SPRING
-
669141-46E01 ...PIN...PIN
-
769142-46E01 ...CLIP...CLIP
-
859151-16701 ...COVER...COVER
-
959121-18410 ...BLEEDER...BLEEDER
-
1055156-66310 ...CAP...CAP
-
1159371-20C00 ...SHIM, INNER...SHIM, INNER
-
1259381-20C00 ...SHIM, OUTER...SHIM, OUTER
-
1301550-08303 BOLTBOLT
