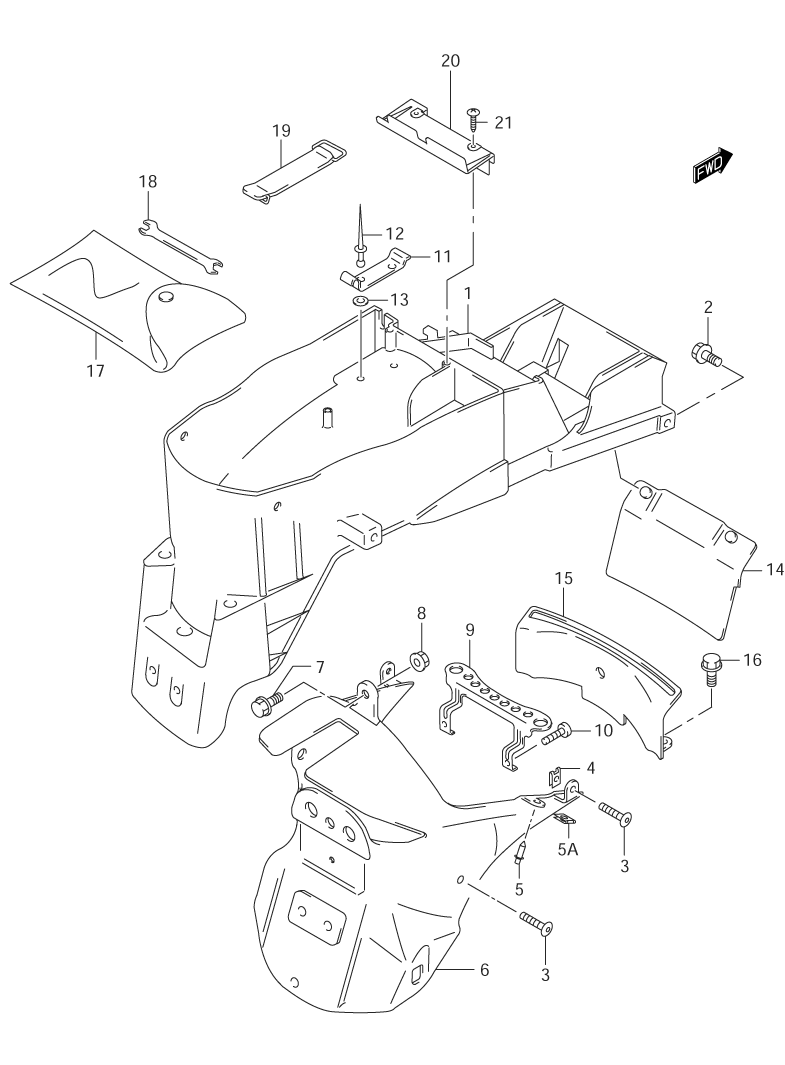

FENDER - REAR для Suzuki TL-1000R K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-263111-02FA1 FENDER (REAR/FRONT)FENDER (REAR/FRONT)
-
1-463111-02FB1 FENDER (REAR/FRONT)FENDER (REAR/FRONT)
-
2-209116-06165 BOLTBOLT
-
309139-05021 SCREWSCREW
-
409148-05021 NUTNUT
-
5-203241-15123 SCREWSCREW
-
5A09148-05004 NUT, SIDENUT, SIDE
-
663112-02FA0 FENDER (REAR)FENDER (REAR)
-
709111-06066 BOLTBOLT
-
808316-10063 NUTNUT
-
963256-02FA0 BRACKET (REAR) LAMPBRACKET (REAR) LAMP
-
1009132-05041 SCREWSCREW
-
1163466-02F00 HOLDER, TOOLHOLDER, TOOL
-
1209229-04020 RIVETRIVET
-
1308322-01043 WASHERWASHER
-
1463411-02FB0 MUDGUARD (FRONT/UPPER)MUDGUARD (FRONT/UPPER)
-
1563421-02FA1 MUDGUARD (FRONT/LOWER)MUDGUARD (FRONT/LOWER)
-
1609111-06066 BOLTBOLT
-
1709800-21039 TOOL ASSY.TOOL ASSY.
-
1809813-00027 SPANNER (8X10)SPANNER (8X10)
-
1947435-02F01 BAND, TOOLBAND, TOOL
-
2063171-02FA0 COVER, (REAR) FENDERCOVER, (REAR) FENDER
-
2103541-05163 SCREWSCREW
