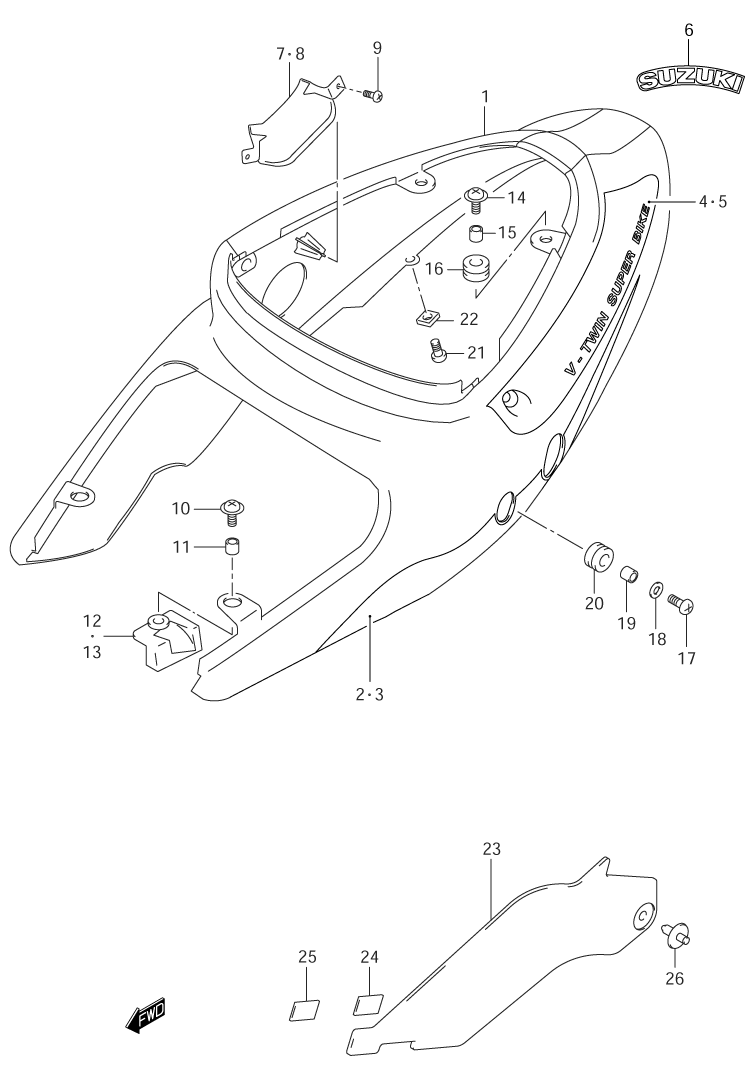

SIDE COVER для Suzuki TL-1000R K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-147110-02FJ0-019 COVER, FRAME (BLACK/PEARL STILL WHITE/ PRL DEEP BLUE)COVER, FRAME (BLACK/PEARL STILL WHITE/ PRL DEEP BLUE)
-
1-247110-02FJ0-Y9H COVER, FRAME (YELLOW/PEARL LIVELY YELLOW)COVER, FRAME (YELLOW/PEARL LIVELY YELLOW)
-
2-168130-02FE0-1LE ...TAPE SET (RIGHT/LOWER/BLUE/BLACK)...TAPE SET (RIGHT/LOWER/BLUE/BLACK)
-
2-268130-02FE0-FP2 ...TAPE SET (RIGHT/LOWER/PEARL LIVELY YELLOW)...TAPE SET (RIGHT/LOWER/PEARL LIVELY YELLOW)
-
3-168140-02FE0-1LE ...TAPE SET (LEFT/LOWER/BLUE/BLACK)...TAPE SET (LEFT/LOWER/BLUE/BLACK)
-
3-268140-02FE0-FP2 ...TAPE SET (LEFT/LOWER/PEARL LIVELY YELLOW)...TAPE SET (LEFT/LOWER/PEARL LIVELY YELLOW)
-
4-168135-02FD0-3SP ...TAPE SET (RIGHT/BLACK)...TAPE SET (RIGHT/BLACK)
-
4-268135-02FD0-FP2 ...TAPE SET (RIGHT/PEARL LIVELY YELLOW)...TAPE SET (RIGHT/PEARL LIVELY YELLOW)
-
5-168145-02FD0-3SP ...TAPE (LEFT/BLACK)...TAPE (LEFT/BLACK)
-
5-268145-02FD0-FP2 ...TAPE (LEFT/PEARL LIVELY YELLOW)...TAPE (LEFT/PEARL LIVELY YELLOW)
-
668131-39F00-0JW ...EMBLEM (WHITE/BLACK)...EMBLEM (WHITE/BLACK)
-
747511-02FA0 CAP (RIGHT)CAP (RIGHT)
-
847521-02FA0 CAP (LEFT)CAP (LEFT)
-
903541-04163 SCREWSCREW
-
1009136-06022 SCREW (FRONT)SCREW (FRONT)
-
1109180-06263 SPACERSPACER
-
1247161-02FA0 CUSHION (FRONT/RIGHT)CUSHION (FRONT/RIGHT)
-
1347261-02FA0 CUSHION (FRONT/LEFT)CUSHION (FRONT/LEFT)
-
1409136-06105 SCREW (UPPER)SCREW (UPPER)
-
1509180-06286 SPACERSPACER
-
1609320-10045 CUSHIONCUSHION
-
1709139-06071 SCREW, SIDESCREW, SIDE
-
1809160-06054 WASHERWASHER
-
1909180-06258 SPACERSPACER
-
2094433-26B00 CUSHIONCUSHION
-
2109409-07313 CLIP (REAR)CLIP (REAR)
-
2209148-05038 NUTNUT
-
2347321-02FA0 COVER, FRAME (FRONT)COVER, FRAME (FRONT)
-
2447322-02FA0 FASTENER, NO.1FASTENER, NO.1
-
2547323-02FA0 FASTENER, NO.2FASTENER, NO.2
-
2609409-07330-6GS CLIP, FRONT (GRAY)CLIP, FRONT (GRAY)
