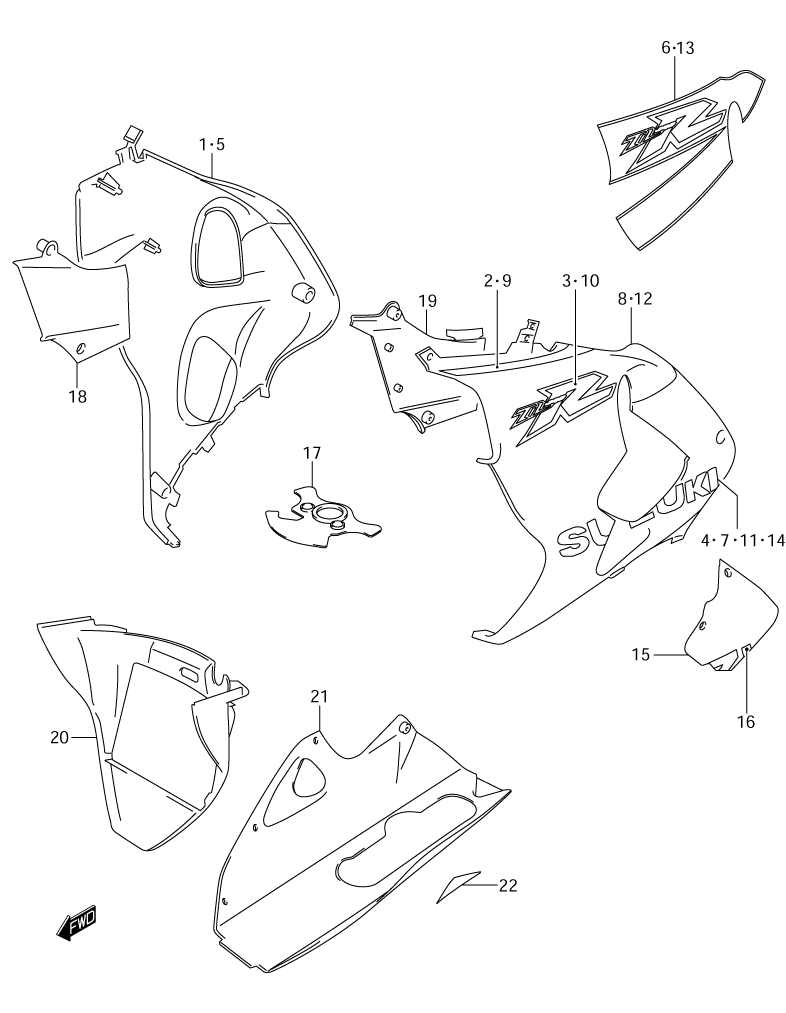

COWLING - UNDER BODY для Suzuki TL-1000R K2 - 2002 года выпуска
-
№АртикулНазвание
-
194407-02FJ0-M18 UNDER COWL ASSY., RIGHT (M18 - WHITE/BLUE) (FOR L99)UNDER COWL ASSY., RIGHT (M18 - WHITE/BLUE) (FOR L99)
-
268185-02FB0-1LF ...TAPE, UPPER - RIGHT (1LF - BLUE)...TAPE, UPPER - RIGHT (1LF - BLUE)
-
368181-02FD0-HW3 ...EMBLEM, "TL1000R" (HW3 - WHITE/BLACK/BLUE/ORANGE)...EMBLEM, "TL1000R" (HW3 - WHITE/BLACK/BLUE/ORANGE)
-
468181-02FC0-0JW ...EMBLEM, "SUZUKI" (0JW - WHITE)...EMBLEM, "SUZUKI" (0JW - WHITE)
-
594407-02FK0-BP9 UNDER COWL ASSY., RIGHT (BP9 - YELLOW/BLACK) (FOR Y9H)UNDER COWL ASSY., RIGHT (BP9 - YELLOW/BLACK) (FOR Y9H)
-
668185-02FC0-YZ8 ...TAPE, UPPER - RIGHT (YZ8 - TAPE FOR Y9H)...TAPE, UPPER - RIGHT (YZ8 - TAPE FOR Y9H)
-
768181-02FC0-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER)...EMBLEM, "SUZUKI" (YD8 - SILVER)
-
894408-02FJ0-M18 UNDER COWL ASSY., LEFT (M18 - WHITE/BLUE) (FOR L99)UNDER COWL ASSY., LEFT (M18 - WHITE/BLUE) (FOR L99)
-
968195-02FB0-1LF ...TAPE, UPPER - LEFT (1LF - BLUE)...TAPE, UPPER - LEFT (1LF - BLUE)
-
1068191-02FD0-HW3 ...EMBLEM, "TL1000R" (HW3 - WHITE/BLACK/BLUE/ORANGE)...EMBLEM, "TL1000R" (HW3 - WHITE/BLACK/BLUE/ORANGE)
-
1168191-02FC0-0JW ...EMBLEM, "SUZUKI" (0JW - WHITE)...EMBLEM, "SUZUKI" (0JW - WHITE)
-
1294408-02FK0-BP9 UNDER COWL ASSY., LEFT (BP9 - YELLOW/BLACK) (FOR BP9)UNDER COWL ASSY., LEFT (BP9 - YELLOW/BLACK) (FOR BP9)
-
1368195-02FC0-YZ8 ...TAPE, UPPER - LEFT (YZ8 - TAPE FOR Y9H)...TAPE, UPPER - LEFT (YZ8 - TAPE FOR Y9H)
-
1468191-02FC0-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER)...EMBLEM, "SUZUKI" (YD8 - SILVER)
-
15-194405-02FG0-M18 LID ASSY., LEFT (M18 - WHITE/BLUE) (FOR L99)LID ASSY., LEFT (M18 - WHITE/BLUE) (FOR L99)
-
15-294405-02FG0-BP9 LID ASSY., LEFT (BP9 - YELLOW/BLACK) (FOR Y9H)LID ASSY., LEFT (BP9 - YELLOW/BLACK) (FOR Y9H)
-
16-168199-02FD0-0JW ...EMBLEM (0JW - WHITE) (FOR M18)...EMBLEM (0JW - WHITE) (FOR M18)
-
16-268199-02FD0-YD8 ...EMBLEM (YD8 - SILVER) (FOR BP9)...EMBLEM (YD8 - SILVER) (FOR BP9)
-
1794458-02FA0 COVER, LOWER BRACKETCOVER, LOWER BRACKET
-
1894461-02FA0 COWLING, INNER (RIGHT)COWLING, INNER (RIGHT)
-
1994462-02FA0 COWLING, INNER (LEFT)COWLING, INNER (LEFT)
-
2094490-02FA0 COWLING (CENTER)COWLING (CENTER)
-
21-194606-02FC0-1LE UNDER COWL, REAR (1LE - BLUE) (FOR L99)UNDER COWL, REAR (1LE - BLUE) (FOR L99)
-
21-294606-02FC0-Y7L UNDER COWL, REAR (Y7L - BLACK) (FOR Y9H)UNDER COWL, REAR (Y7L - BLACK) (FOR Y9H)
-
22-168180-02FC0-0JW ...TAPE SET (0JW - WHITE) (FOR 1LE)...TAPE SET (0JW - WHITE) (FOR 1LE)
-
22-268180-02FC0-Y9H ...TAPE SET (Y9H - YELLOW) (FOR Y7L)...TAPE SET (Y9H - YELLOW) (FOR Y7L)
