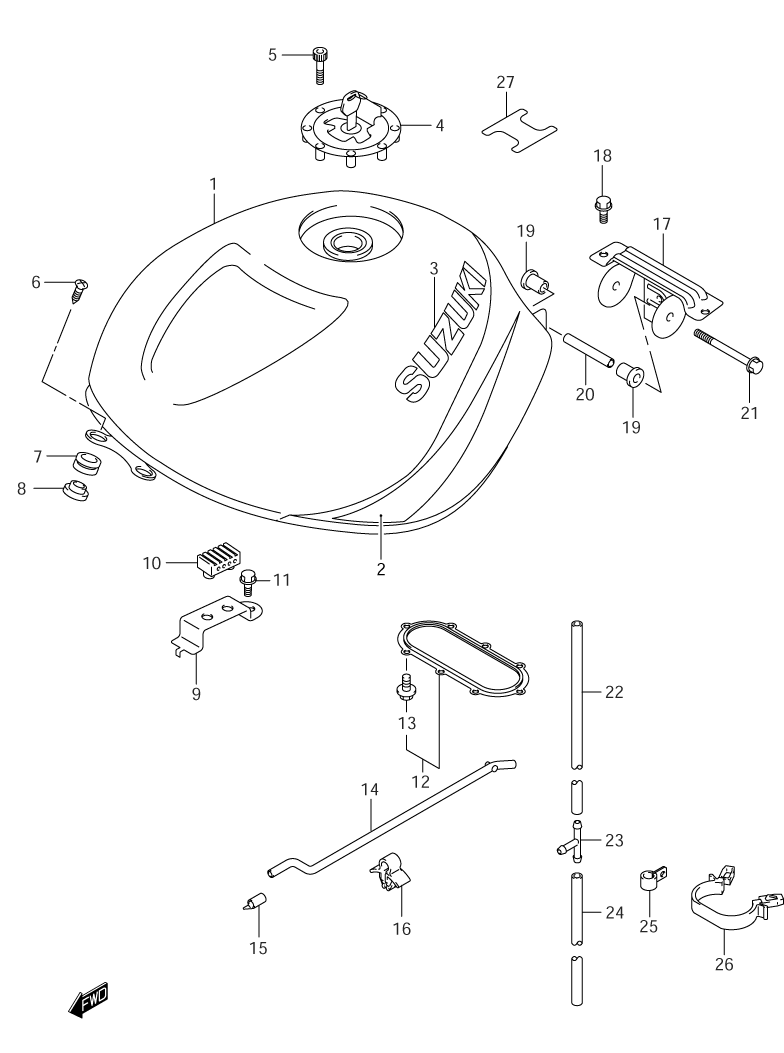

FUEL TANK для Suzuki TL-1000R K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-144100-02FQ0-L99 TANK ASSY., FUEL (L99 - WHITE/BLUE) (EXCEPT CALIF.)TANK ASSY., FUEL (L99 - WHITE/BLUE) (EXCEPT CALIF.)
-
1-244100-02FS0-L99 TANK ASSY., FUEL (L99 - WHITE/BLUE) (CALIF. ONLY)TANK ASSY., FUEL (L99 - WHITE/BLUE) (CALIF. ONLY)
-
1-349100-02FA0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.)TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.)
-
1-449100-02FB0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY)TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY)
-
2-168110-02F20-1LE ...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99)...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99)
-
2-268110-02F20-YD8 ...TAPE SET, FUEL TANK (YD8 - SILVER) (FOR Y9H)...TAPE SET, FUEL TANK (YD8 - SILVER) (FOR Y9H)
-
3-168111-12C30-0JW ...EMBLEM (0JW - WHITE) (FOR L99)...EMBLEM (0JW - WHITE) (FOR L99)
-
3-268111-12C30-Y7L ...EMBLEM (Y7L - BLACK) (FOR Y9H)...EMBLEM (Y7L - BLACK) (FOR Y9H)
-
4-144200-33870 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
4-244200-33890 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
509106-05017 BOLT, CAPBOLT, CAP
-
609139-06029 BOLT, FRONTBOLT, FRONT
-
709320-09009 CUSHIONCUSHION
-
809169-06062 SPACERSPACER
-
944531-02FA0 BRACKET, SIDE CUSHIONBRACKET, SIDE CUSHION
-
1045149-31300 CUSHION, SIDECUSHION, SIDE
-
1101550-06163 BOLTBOLT
-
1244590-02840 GASKET SET, FUEL PUMPGASKET SET, FUEL PUMP
-
1309103-05017 ...BOLT...BOLT
-
1444574-33E01 STAY, FUEL TANKSTAY, FUEL TANK
-
1509251-05006 PLUGPLUG
-
1609403-05310 CLAMPCLAMP
-
1744550-02FA1 BRACKET (REAR)BRACKET (REAR)
-
1801550-08163 BOLT (REAR) BRACKETBOLT (REAR) BRACKET
-
1944541-02F00 CUSHION (REAR)CUSHION (REAR)
-
2044561-33E10 SPACER, JOINTSPACER, JOINT
-
2101550-08953 BOLT, JOINTBOLT, JOINT
-
2244423-02F01 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2309367-08005 3 WAY, DRAIN HOSE3 WAY, DRAIN HOSE
-
2409352-70103-600 HOSE, WATER DRAIN (L:600->270)HOSE, WATER DRAIN (L:600->270)
-
2509403-14408 CLAMPCLAMP
-
2609403-24302 CLAMPCLAMP
-
2744261-02F00 LABEL, FUELLABEL, FUEL
