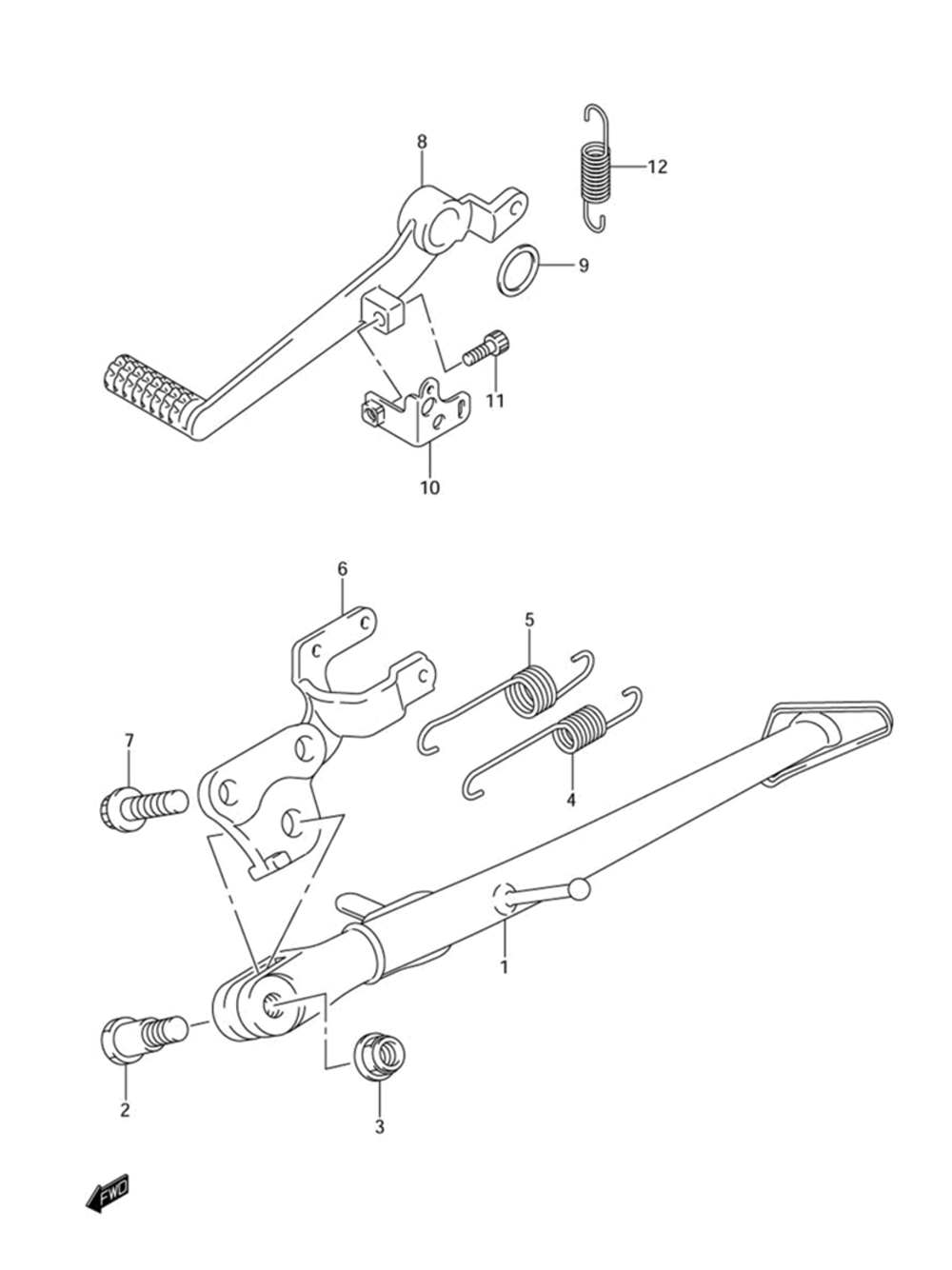

BRAKE PEDAL W/ STAND для Suzuki GSX-R750 K4 - 2004 года выпуска
-
№АртикулНазвание
-
142310-40F10 STAND, PROPSTAND, PROP
-
209111-10059 BOLT, PROP STANDBOLT, PROP STAND
-
309159-10103 NUTNUT
-
409443-14070 SPRING (INNER)SPRING (INNER)
-
509443-19016 SPRING (OUTER)SPRING (OUTER)
-
642330-29G00 BRACKET, PROP STANDBRACKET, PROP STAND
-
709106-10064 BOLTBOLT
-
843111-29G00 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHERWASHER
-
1043560-35F10 HOOK, RETURN SPRINGHOOK, RETURN SPRING
-
1107130-06163 BOLTBOLT
-
1209443-11035 SPRING, RETURNSPRING, RETURN
