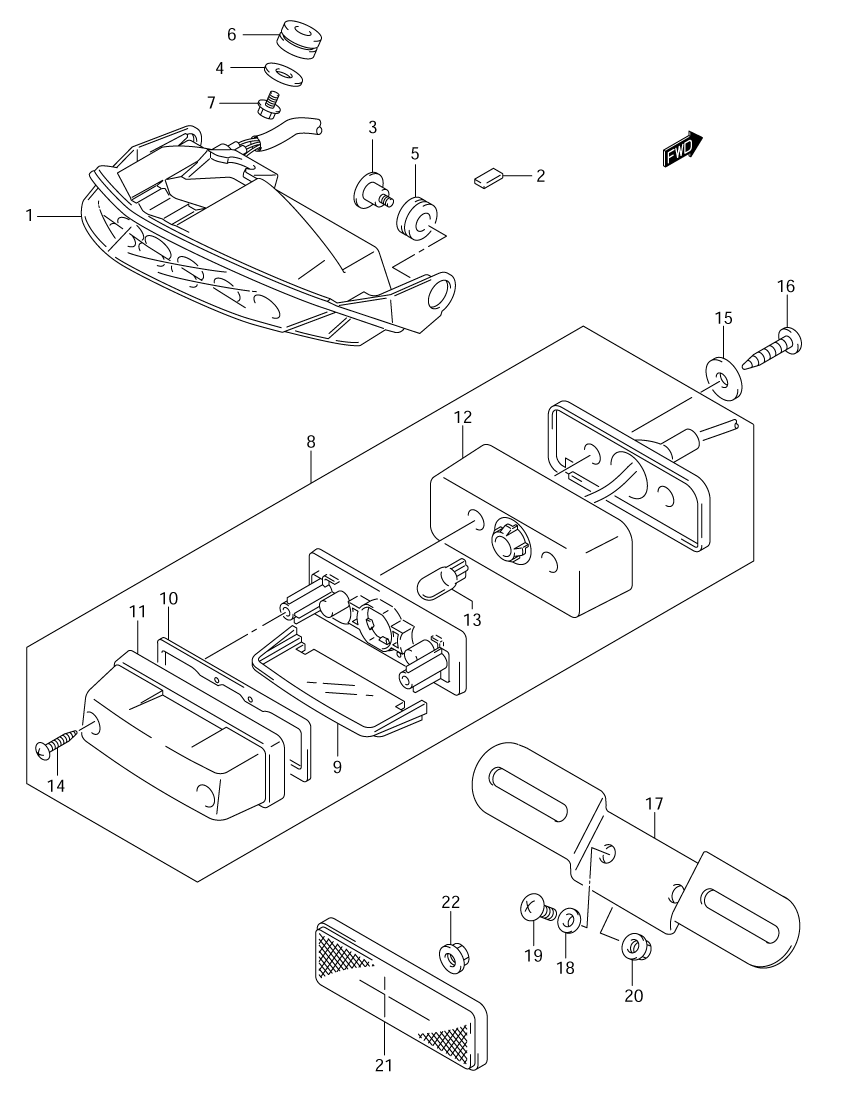

TAILLIGHT ASSY. для Suzuki GSX-R750 K4 - 2004 года выпуска
-
№АртикулНазвание
-
135710-29G30 LAMP ASSY., COMBINATION (REAR)LAMP ASSY., COMBINATION (REAR)
-
233651-37000 CUSHION (170X95X3) (20X40) CUT AS REQUIREDCUSHION (170X95X3) (20X40) CUT AS REQUIRED
-
309139-05080 SCREW, COMBINATION (REAR)SCREW, COMBINATION (REAR)
-
409160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
509320-10049 CUSHIONCUSHION
-
609320-10054 CUSHIONCUSHION
-
702162-05083 SCREWSCREW
-
835910-16G30 LAMP ASSY., LICENSELAMP ASSY., LICENSE
-
935912-16G00 ...LENS...LENS
-
1035913-16G00 ...GASKET...GASKET
-
1135917-16G00 ...COVER...COVER
-
1235978-16G30 ...SPACER...SPACER
-
1309471-12216 ...BULB (12V5W)...BULB (12V5W)
-
1403211-04163 ...SCREW...SCREW
-
1509160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
1603541-05403 SCREW, LICENSE LAMPSCREW, LICENSE LAMP
-
1735927-18G00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1809160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1902142-06163 SCREW, LICENSE PLATE BRKTSCREW, LICENSE PLATE BRKT
-
2008316-10063 NUT, LICENSE BRACKETNUT, LICENSE BRACKET
-
2135970-07F00 REFLECTOR ASSY., SIDE (REAR)REFLECTOR ASSY., SIDE (REAR)
-
2208316-10053 NUTNUT
