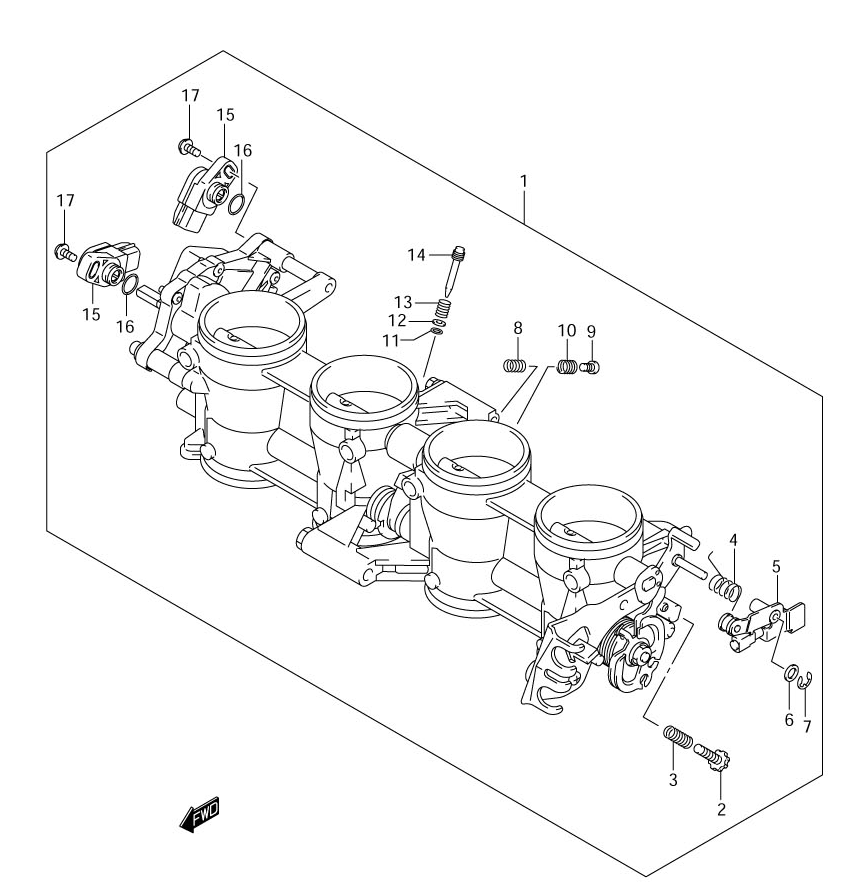

CARBURETOR - THROTTLE BODY для Suzuki GSX-R750 K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-113405-30G00 BODY ASSY., THROTTLE (EXCEPT CALIF.)BODY ASSY., THROTTLE (EXCEPT CALIF.)
-
1-213405-30G10 BODY ASSY., THROTTLE (CALIF. ONLY)BODY ASSY., THROTTLE (CALIF. ONLY)
-
213267-29G00 ...SCREW...SCREW
-
313268-29G00 ...SPRING...SPRING
-
413426-29G00 ...TORSION SPRING...TORSION SPRING
-
513420-29G00 ...LEVER ASSY....LEVER ASSY.
-
613427-29G00 ...PACKING...PACKING
-
713424-29G00 ...E-RING...E-RING
-
813268-89J00 ...SPRING...SPRING
-
913548-42F00 ...SCREW...SCREW
-
1013271-44B00 ...SPRING...SPRING
-
1113295-29900 ...O-RING...O-RING
-
1213606-47A00 ...WASHER...WASHER
-
1313268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
1413269-33E00 ...SCREW...SCREW
-
1513580-29G00 ...SENSOR ASSY....SENSOR ASSY.
-
1613575-29G00 ...O-RING...O-RING
-
1713605-29G00 ...SCREW...SCREW
