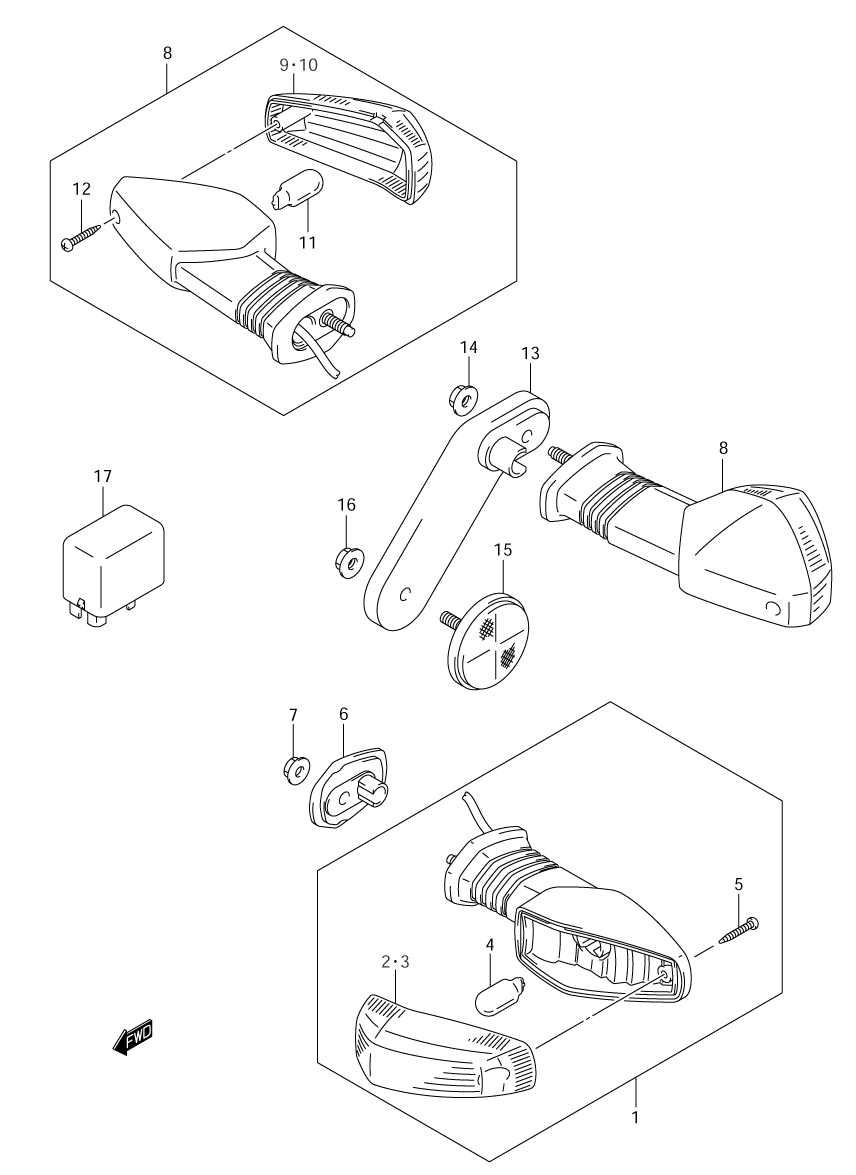

TURN SIGNAL ASSY. для Suzuki GSX-R750 K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-135601-29G10 LAMP ASSY., TURN (FRONT/RIGHT)LAMP ASSY., TURN (FRONT/RIGHT)
-
1-235602-29G10 LAMP ASSY., TURN (FRONT/LEFT)LAMP ASSY., TURN (FRONT/LEFT)
-
235612-18G01 ...LENS, (RIGHT)...LENS, (RIGHT)
-
335632-18G01 ...LENS, (LEFT)...LENS, (LEFT)
-
435222-18G00 ...BULB (12V,18W)...BULB (12V,18W)
-
535725-40511 ...SCREW (3X20)...SCREW (3X20)
-
635629-18G00 PLATE, FRONT TURNPLATE, FRONT TURN
-
708316-10053 NUTNUT
-
8-135603-29G40 LAMP ASSY., TURN (REAR/RIGHT)LAMP ASSY., TURN (REAR/RIGHT)
-
8-235604-29G40 LAMP ASSY., TURN (REAR/LEFT)LAMP ASSY., TURN (REAR/LEFT)
-
935632-18G01 ...LENS, (RIGHT)...LENS, (RIGHT)
-
1035612-18G01 ...LENS, (LEFT)...LENS, (LEFT)
-
1135222-18G00 ...BULB (12V,18W)...BULB (12V,18W)
-
1235725-40511 ...SCREW (3X20)...SCREW (3X20)
-
13-135669-18G00 PLATE, TURNSIGNAL (REAR/RIGHT)PLATE, TURNSIGNAL (REAR/RIGHT)
-
13-235679-18G00 PLATE, TURNSIGNAL (REAR/LEFT)PLATE, TURNSIGNAL (REAR/LEFT)
-
1408316-10053 NUTNUT
-
1535970-14A20 REFLECTOR ASSY., SIDE (REAR)REFLECTOR ASSY., SIDE (REAR)
-
1608316-10053 NUTNUT
-
1738610-07F00 RELAY ASSY., TURNSIGNALRELAY ASSY., TURNSIGNAL
