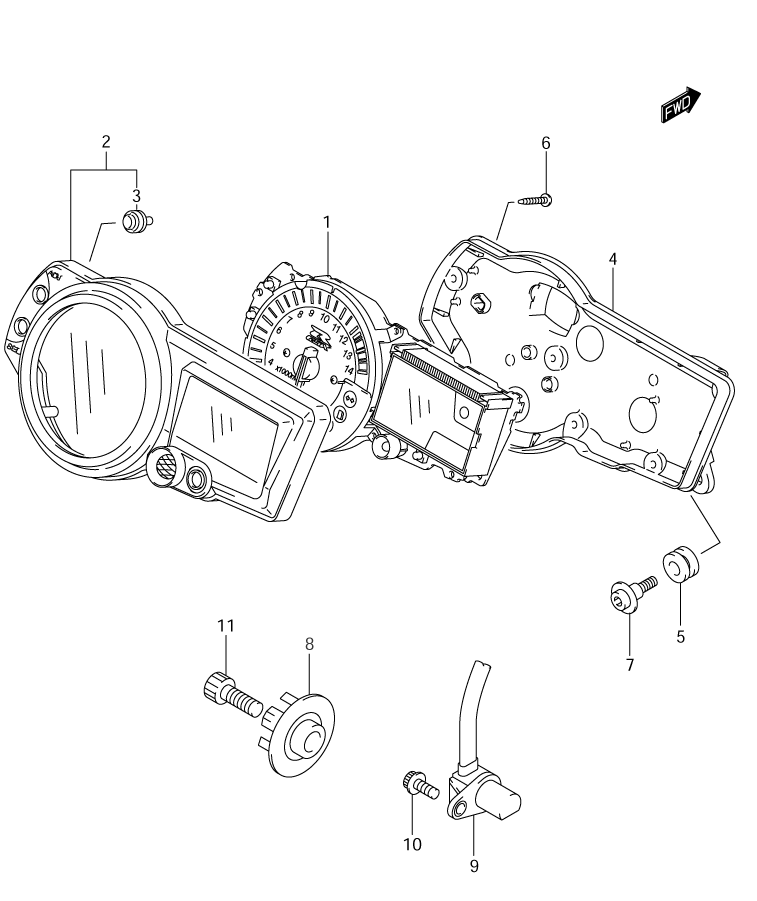

SPEEDOMETER для Suzuki GSX-R750 K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-134120-30G20 SPEED AND TACHOMETER ASSY. (MILESPEED AND TACHOMETER ASSY. (MILE
-
1-234120-30G00 SPEED AND TACHOMETER ASSY. (KILO) (CANADA)SPEED AND TACHOMETER ASSY. (KILO) (CANADA)
-
234150-18G00 CASE, UPPERCASE, UPPER
-
334124-24F00 ...SWITCH, LEVER...SWITCH, LEVER
-
434111-18G00 CASE, LOWERCASE, LOWER
-
534955-33E00 CUSHION, METERCUSHION, METER
-
634383-35F00 SCREW (3X16)SCREW (3X16)
-
734149-18G00 SCREWSCREW
-
834981-35F00 ROTOR, SPEEDROTOR, SPEED
-
934990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
1007120-05123 BOLT, SPEED SENSORBOLT, SPEED SENSOR
-
1107130-08253 BOLT, SPEED ROTORBOLT, SPEED ROTOR
