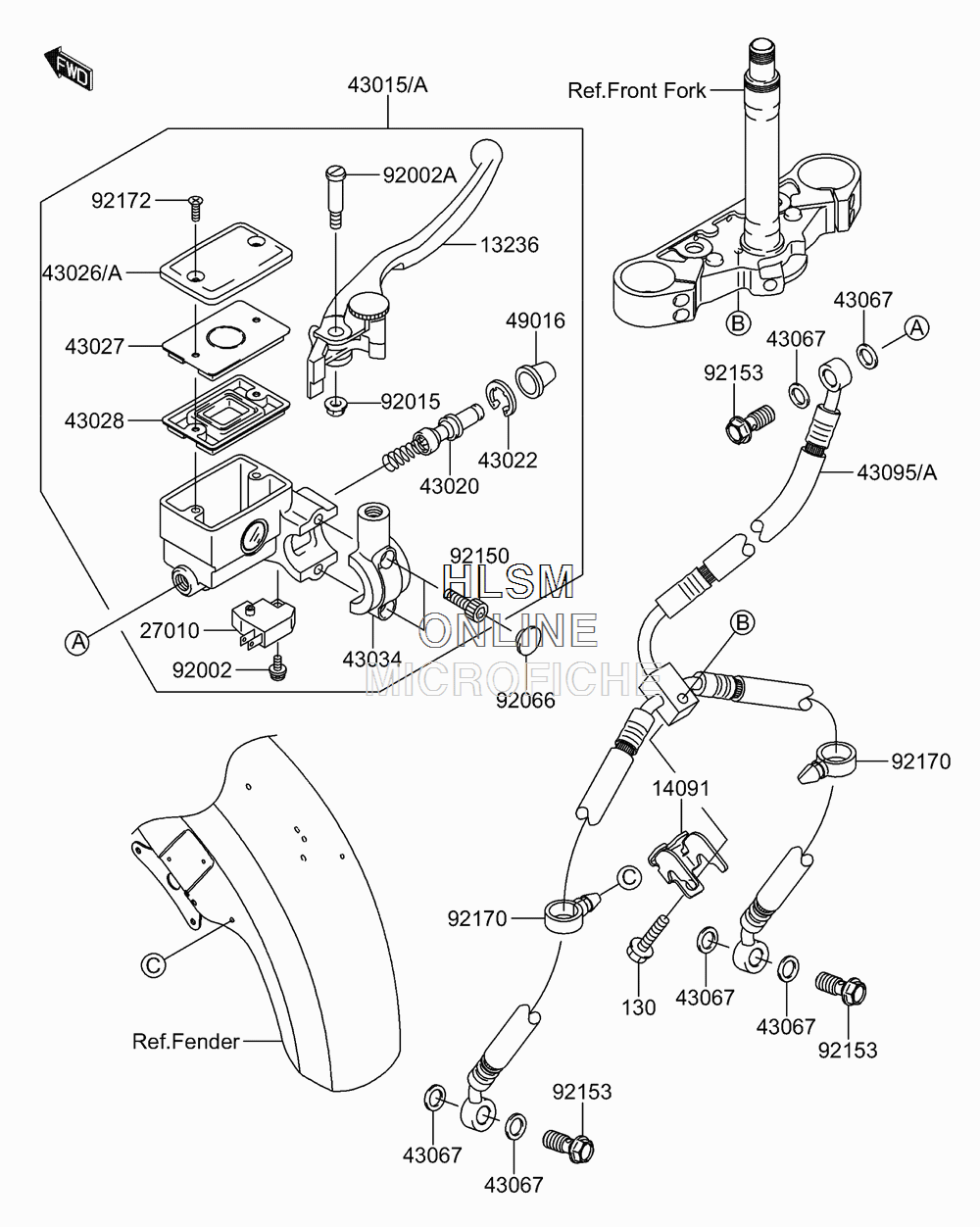

BRAKE - FRONT MASTER CYLINDER для Suzuki VZ1600CA K4 - 2004 года выпуска
-
№АртикулНазвание
-
13236K1323-61315 LEVER-COMP,FRONT BRAKELEVER-COMP,FRONT BRAKE
-
14091K1409-11450 COVER,3 WAY JOINTCOVER,3 WAY JOINT
-
27010K2701-00025 SWITCH,BRAKESWITCH,BRAKE
-
43015K4301-50023 CYLINDER-ASSY-MASTER,FRCYLINDER-ASSY-MASTER,FR
-
43020K4302-01054 PISTON-COMP-BRAKE,FRPISTON-COMP-BRAKE,FR
-
43022K4302-21010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
43026K4302-60002 CAP-BRAKECAP-BRAKE
-
43027K4302-71059 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
43028K4302-81058 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
43034K4303-41172 HOLDER-BRAKEHOLDER-BRAKE
-
43067KK430-67001 WASHER,10.5X15X1.5WASHER,10.5X15X1.5
-
43095AK4309-51324 HOSE-BRAKE,FRHOSE-BRAKE,FR
-
49016K4901-61044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
92002K9200-21323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
92002AK9200-21561 BOLT,LEVER SETBOLT,LEVER SET
-
92015K9201-51528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92066K9206-61301 PLUGPLUG
-
92150K9215-01025 BOLT,SOCKET,6MMBOLT,SOCKET,6MM
-
92153K9215-30627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92170K9217-01067 CLAMPCLAMP
-
92172K9217-20083 SCREWSCREW
-
130KK130-J0630 BOLT-FLANGED,6X30, BLACKBOLT-FLANGED,6X30, BLACK
