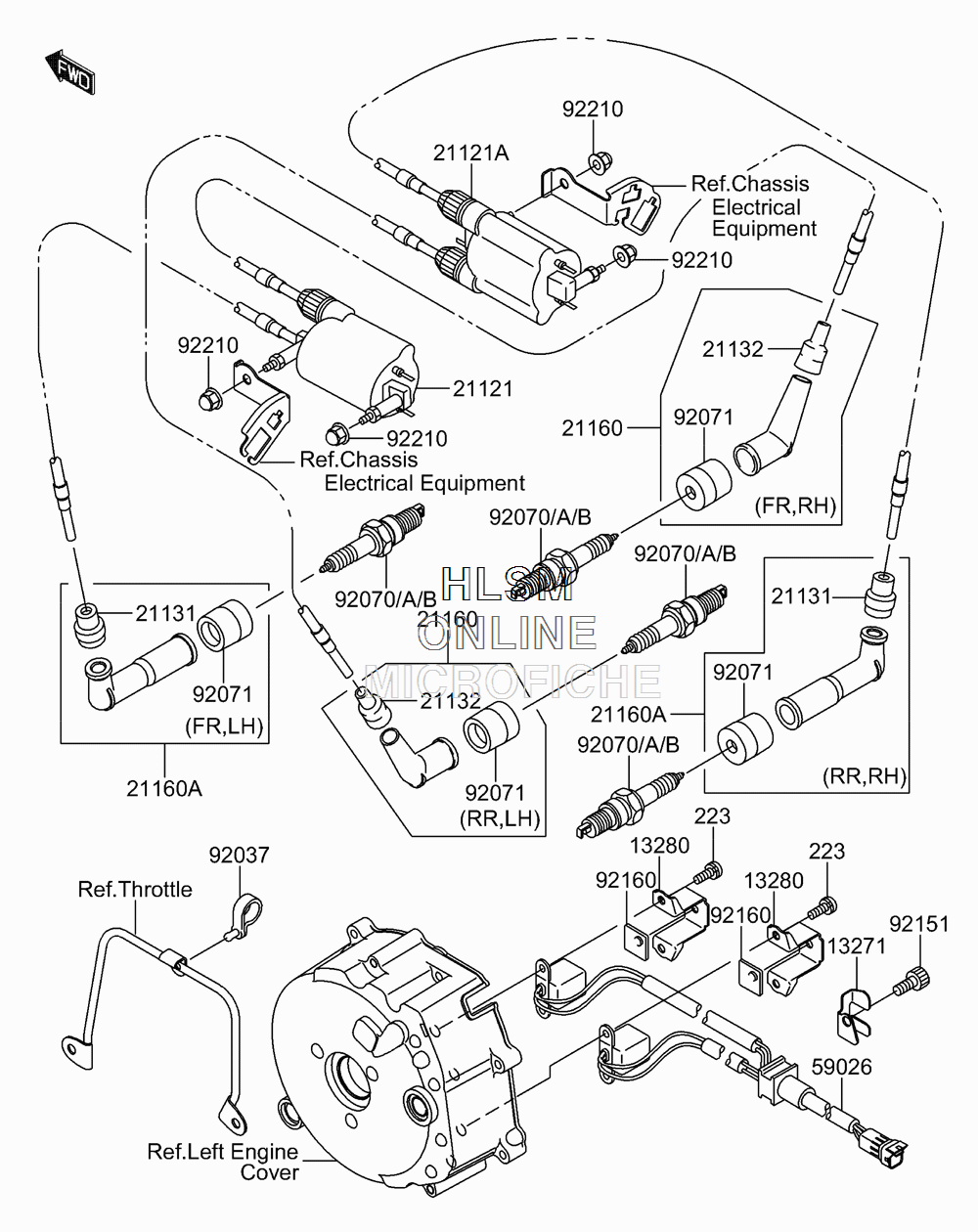

IGNITION SYSTEM для Suzuki VZ1600CA K4 - 2004 года выпуска
-
№АртикулНазвание
-
13271K1327-11339 PLATEPLATE
-
13280K1328-01255 HOLDERHOLDER
-
21121K2112-11302 COIL-IGNITION,FRCOIL-IGNITION,FR
-
21121AK2112-11303 COIL-IGNITION,RRCOIL-IGNITION,RR
-
21131KK211-31005 GROMMET,HIGH TENSIONGROMMET,HIGH TENSION
-
21132KK211-32005 GROMMET,HIGH TENSIONGROMMET,HIGH TENSION
-
21160K2116-00004 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
21160AK2116-01091 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
59026K5902-61158 COIL-PULSINGCOIL-PULSING
-
92037K9203-71290 CLAMP,SPEED,L=43CLAMP,SPEED,L=43
-
92070K9207-01125 PLUG-SPARK,DPR7EA9(NGK) (OPT)PLUG-SPARK,DPR7EA9(NGK) (OPT)
-
92070AK9207-01138 PLUG-SPARK,DPR6EA9(NGK)PLUG-SPARK,DPR6EA9(NGK)
-
92070BK9207-01250 PLUG-SPARK,DPR5EA9(NGK) (OPT)PLUG-SPARK,DPR5EA9(NGK) (OPT)
-
92071K9207-11184 GROMMET,PLUG CAPGROMMET,PLUG CAP
-
92151K9215-13704 BOLT,6X10BOLT,6X10
-
92160K9216-01091 DAMPERDAMPER
-
92210K9221-00003 NUT,CAP,6MMNUT,CAP,6MM
-
223KK223-B0516 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
