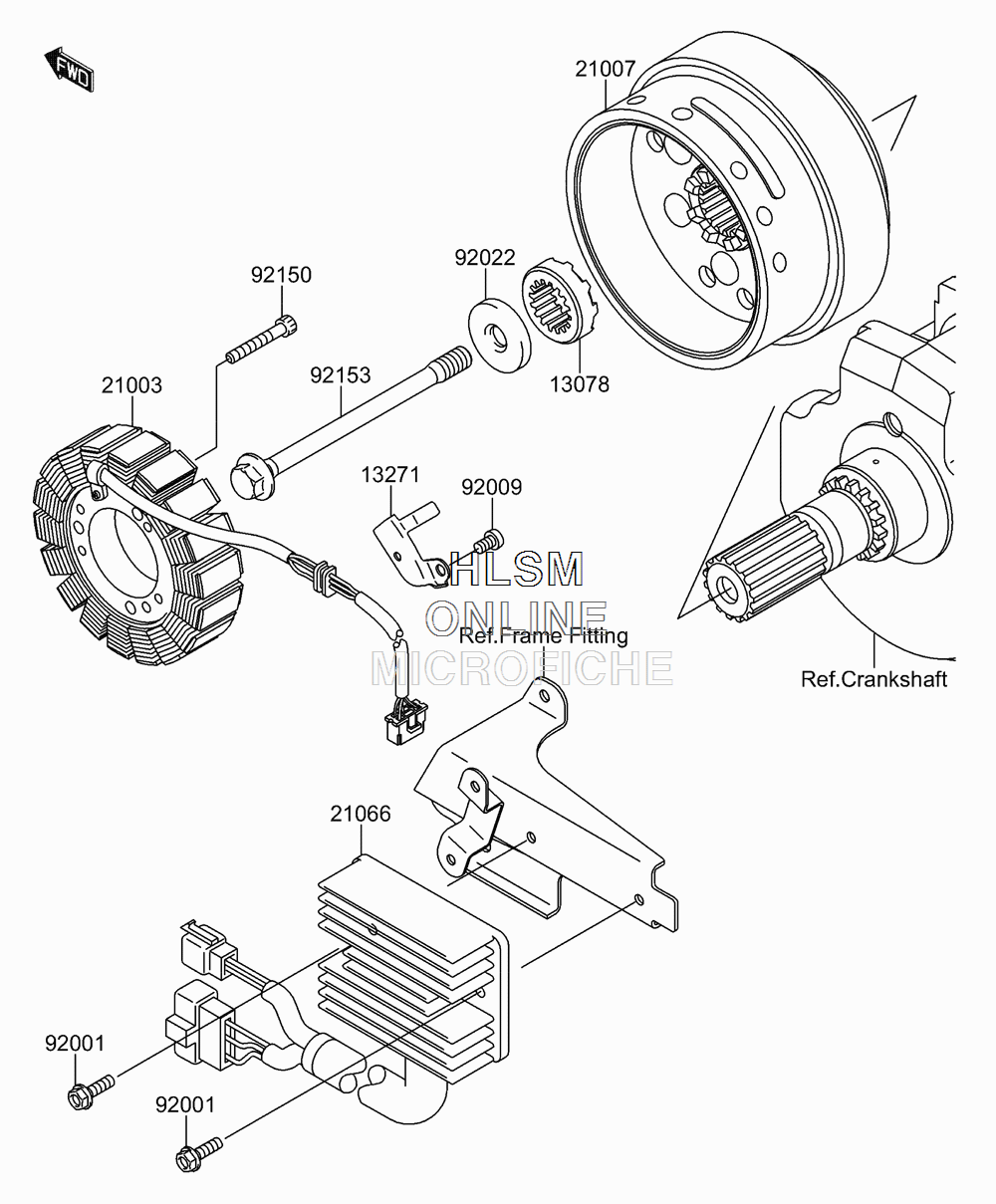

GENERATOR для Suzuki VZ1600CA K4 - 2004 года выпуска
-
№АртикулНазвание
-
13078K1307-81056 RATCHETRATCHET
-
13271K1327-11328 PLATEPLATE
-
21003K2100-30008 STATOR,OUTERSTATOR,OUTER
-
21007K2100-70014 ROTORROTOR
-
21066K2106-61126 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
92001K9200-11947 BOLT,6X20BOLT,6X20
-
92009K9200-91768 SCREWSCREW
-
92022K9202-21904 WASHER,12X40X6WASHER,12X40X6
-
92150K9215-01484 BOLT,SOCKET,6X35BOLT,SOCKET,6X35
-
92153K9215-31105 BOLT,12X154BOLT,12X154
