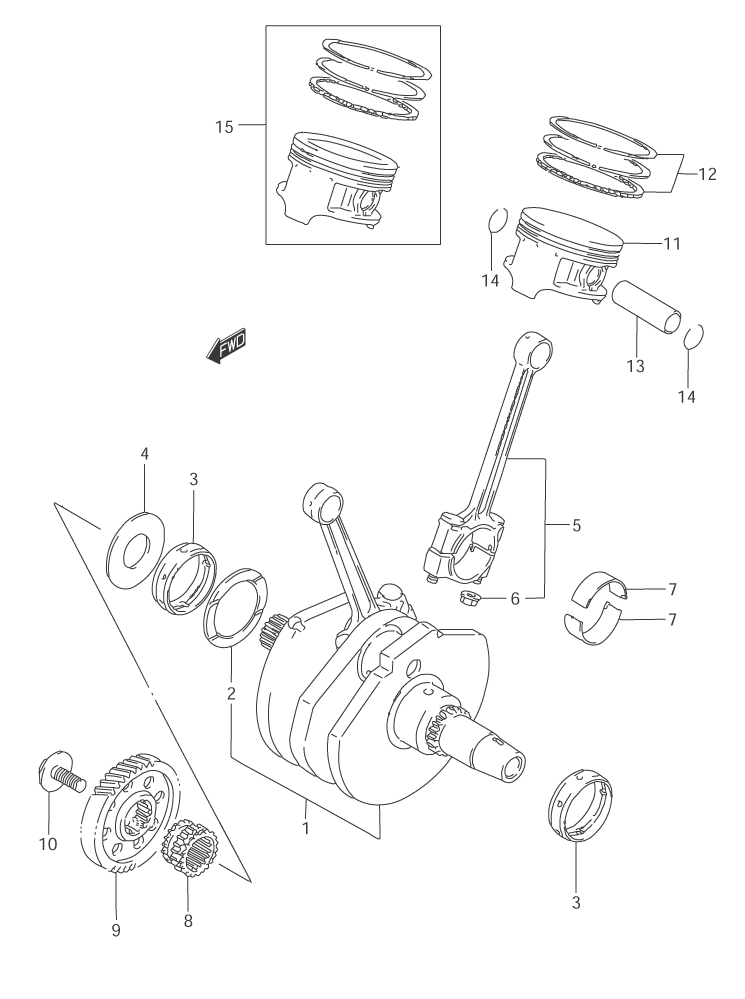

CRANKSHAFT W/ PISTON для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
112000-38810 CRANKSHAFT SETCRANKSHAFT SET
-
2-109160-48001 ...WASHER, CRANK THRUST (T:1.94)...WASHER, CRANK THRUST (T:1.94)
-
2-209160-48002 ...WASHER, CRANK THRUST (T:1.96)...WASHER, CRANK THRUST (T:1.96)
-
2-309160-48003 ...WASHER, CRANK THRUST (T:1.99)...WASHER, CRANK THRUST (T:1.99)
-
2-409160-48004 ...WASHER, CRANK THRUST (T:2.01)...WASHER, CRANK THRUST (T:2.01)
-
2-509160-48005 ...WASHER, CRANK THRUST (T:2.04)...WASHER, CRANK THRUST (T:2.04)
-
2-609160-48006 ...WASHER, CRANK THRUST (T:2.06)...WASHER, CRANK THRUST (T:2.06)
-
2-709160-48007 ...WASHER, CRANK THRUST (T:2.09)...WASHER, CRANK THRUST (T:2.09)
-
2-809160-48008 ...WASHER, CRANK THRUST (T:2.11)...WASHER, CRANK THRUST (T:2.11)
-
2-909160-48009 ...WASHER, CRANK THRUST (T:2.14)...WASHER, CRANK THRUST (T:2.14)
-
2-1009160-48010 ...WASHER, CRANK THRUST (T:2.16)...WASHER, CRANK THRUST (T:2.16)
-
312229-38A00 BEARINGBEARING
-
412652-38A00 WASHERWASHER
-
512160-45C10 CONNECTING ROD ASSY.CONNECTING ROD ASSY.
-
609159-09001 ...NUT...NUT
-
7-112164-38E00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
7-212164-38E00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
7-312164-38E00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
7-412164-38E00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
7-512164-38E00-0E0 BEARING, CRANK PIN (BLUE)BEARING, CRANK PIN (BLUE)
-
812731-38A00 SPROCKET, CAM CHAIN DRIVESPROCKET, CAM CHAIN DRIVE
-
921111-48E50 GEAR, PRIMARY DRIVE (NT:38)GEAR, PRIMARY DRIVE (NT:38)
-
1009103-12013 BOLTBOLT
-
1112111-45C00-0F0 PISTONPISTON
-
1212140-45C10 RING SET, PISTONRING SET, PISTON
-
1312151-24A00 PIN, PISTONPIN, PISTON
-
1409381-20004 CIRCLIPCIRCLIP
-
1512100-45C00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
