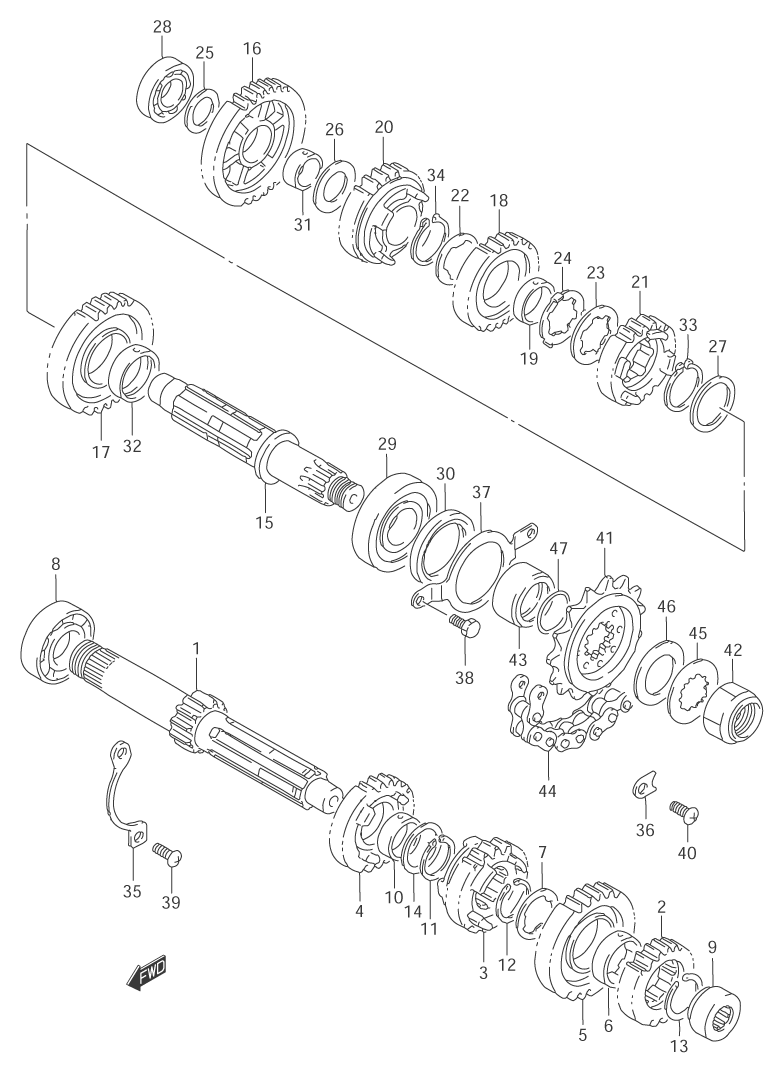

TRANSMISSION для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
124121-48E51 SHAFT, CNTR (NT:13)SHAFT, CNTR (NT:13)
-
224221-44B20 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-44B02 GEAR, 3RD DRIVE (NT:20)GEAR, 3RD DRIVE (NT:20)
-
424241-44B01 GEAR, 4TH DRIVE (NT:23)GEAR, 4TH DRIVE (NT:23)
-
524251-44B10 GEAR, 5TH DRIVE (NT:25)GEAR, 5TH DRIVE (NT:25)
-
624252-38A10 BUSH, 5TH DRIVEBUSH, 5TH DRIVE
-
709167-25021 WASHER, 5TH (25.1X33X1)WASHER, 5TH (25.1X33X1)
-
809262-25080 BEARING (CENTER/RIGHT)BEARING (CENTER/RIGHT)
-
909263-20084 BEARING (CENTER/LEFT)BEARING (CENTER/LEFT)
-
1024252-19F00 BUSH, 4TH DRIVEBUSH, 4TH DRIVE
-
1109380-25003 CIRCLIP, 4THCIRCLIP, 4TH
-
1209380-25003 CIRCLIP, 5THCIRCLIP, 5TH
-
1309380-25013 CIRCLIP, 2NDCIRCLIP, 2ND
-
1408211-25351 WASHER, 4THWASHER, 4TH
-
1524130-48E02 SHAFT, DRIVESHAFT, DRIVE
-
1624311-44B10 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
1724321-44B20 GEAR, 2ND DRIVEN (NT:30)GEAR, 2ND DRIVEN (NT:30)
-
1824331-44B01 GEAR, 3RD DRIVEN (NT:24)GEAR, 3RD DRIVEN (NT:24)
-
1924332-27A00 BUSH, 3RD DRIVENBUSH, 3RD DRIVEN
-
2024341-44B02 GEAR, 4TH DRIVEN (NT:22)GEAR, 4TH DRIVEN (NT:22)
-
2124351-44B10 GEAR, 5TH DRIVEN (NT:20)GEAR, 5TH DRIVEN (NT:20)
-
2209167-28001 WASHER, 3RD DRIVEN (RIGHT)WASHER, 3RD DRIVEN (RIGHT)
-
2309167-28002 WASHER, 3RD DRIVEN (LEFT)WASHER, 3RD DRIVEN (LEFT)
-
2409169-28001 WASHER, 3RD DRIVEN (LEFT)WASHER, 3RD DRIVEN (LEFT)
-
2509181-20223 WASHER, 1ST DRIVEN (RIGHT)WASHER, 1ST DRIVEN (RIGHT)
-
2609181-22223 WASHER, 1ST DRIVEN (LEFT)WASHER, 1ST DRIVEN (LEFT)
-
2709181-28167 WASHER, 2ND DRIVENWASHER, 2ND DRIVEN
-
2809262-20059 BEARING, (RIGHT) (20X42X12)BEARING, (RIGHT) (20X42X12)
-
2909262-25125 BEARING, (LEFT) (25X62X17)BEARING, (LEFT) (25X62X17)
-
3009283-36003 SEAL, DRIVE SHAFT OILSEAL, DRIVE SHAFT OIL
-
3124312-02F00 BUSH, 1ST DRIVENBUSH, 1ST DRIVEN
-
3209300-28002 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
3308331-31286 CIRCLIP, 2ND DRIVENCIRCLIP, 2ND DRIVEN
-
3408331-31286 CIRCLIP, 3RD DRIVENCIRCLIP, 3RD DRIVEN
-
3524741-38A00 RETAINER, CNTR SHAFTRETAINER, CNTR SHAFT
-
3624742-44B00 RETAINER, CNTR (LEFT)RETAINER, CNTR (LEFT)
-
3724751-48E00 RETAINER, DRIVE SHAFTRETAINER, DRIVE SHAFT
-
3801500-06103 BOLT, DRIVEBOLT, DRIVE
-
3902112-06123 SCREWSCREW
-
4002122-06123 SCREWSCREW
-
4127510-17C10 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
4227521-48E00 NUTNUT
-
4327531-24B00 SPACERSPACER
-
4427600-19C00-116 CHAIN ASSY. (DID50VM,116LE)CHAIN ASSY. (DID50VM,116LE)
-
4509167-25019 WASHER (25.3X41.6X1)WASHER (25.3X41.6X1)
-
4609160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
4709280-24010 O-RING (D:2.4,ID:23.7)O-RING (D:2.4,ID:23.7)
