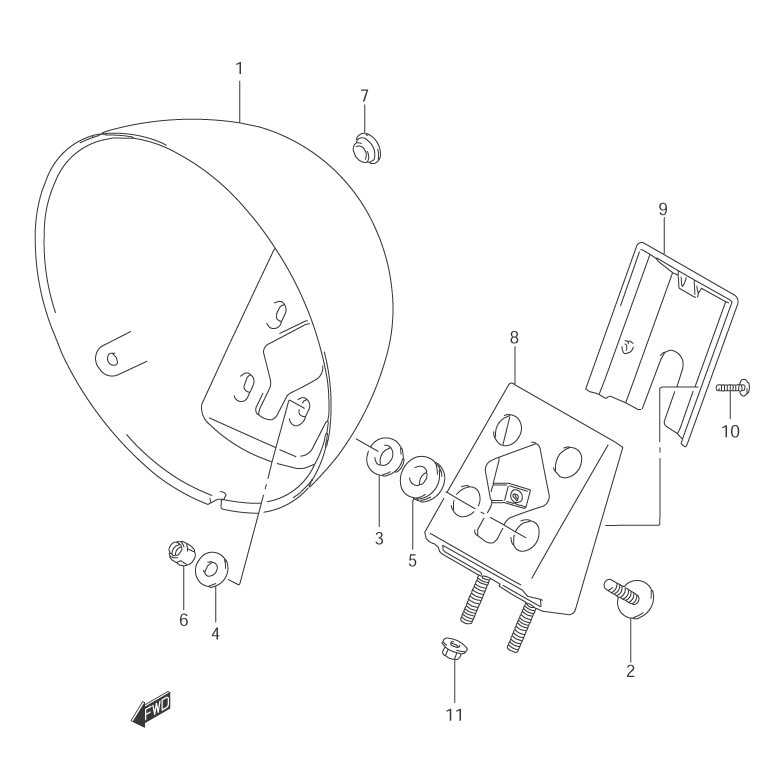

HEADLAMP HOUSING для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
151811-48E02 HOUSING, HEADLAMPHOUSING, HEADLAMP
-
209116-06025 BOLT (6X25)BOLT (6X25)
-
309169-06063 WASHER (6.3X17X6)WASHER (6.3X17X6)
-
409160-06138 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509320-08051 CUSHIONCUSHION
-
608319-21063 NUTNUT
-
751816-48E01 CAP, HEADLAMP HOUSINGCAP, HEADLAMP HOUSING
-
851850-48E01 BRACKET, HEADLAMP HOUSINGBRACKET, HEADLAMP HOUSING
-
951815-48E00 COVER, BRACKETCOVER, BRACKET
-
1002142-04107 SCREWSCREW
-
1108319-31063 NUTNUT
