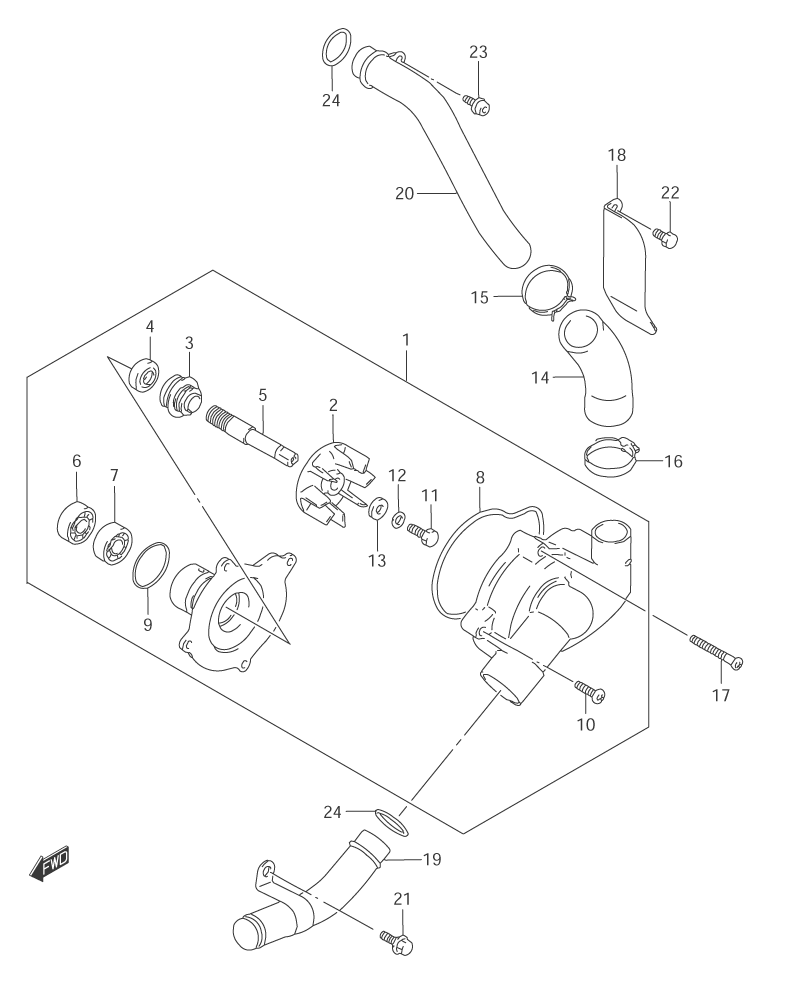

WATER PUMP для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
117400-48E00 PUMP ASSY., WATERPUMP ASSY., WATER
-
217491-17E01 ...IMPELLER...IMPELLER
-
317470-02F00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
409283-10004 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
517511-48E01 ...SHAFT...SHAFT
-
609262-10014 ...BEARING (10X26X8)...BEARING (10X26X8)
-
709262-12001 ...BEARING (12X28X8)...BEARING (12X28X8)
-
817418-33400 ...O-RING...O-RING
-
917435-33400 ...O-RING...O-RING
-
1002112-06163 ...SCREW...SCREW
-
1109100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1209164-06006 ...LOCK WASHER...LOCK WASHER
-
1309168-06025 ...GASKET...GASKET
-
1417859-48E00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
1509401-26404 CLAMPCLAMP
-
1609402-32511 CLAMPCLAMP
-
1701547-06353 BOLTBOLT
-
1817871-48E00 PLATEPLATE
-
1917880-48E00 PIPE, WATER PUMP INLETPIPE, WATER PUMP INLET
-
2017890-48E00 PIPE, WATER PUMP OUTLETPIPE, WATER PUMP OUTLET
-
2101550-06123 BOLTBOLT
-
2201550-06103 BOLTBOLT
-
2307120-06127 SCREWSCREW
-
2409280-21015 O-RING (D:2.7,ID:21.4)O-RING (D:2.7,ID:21.4)
