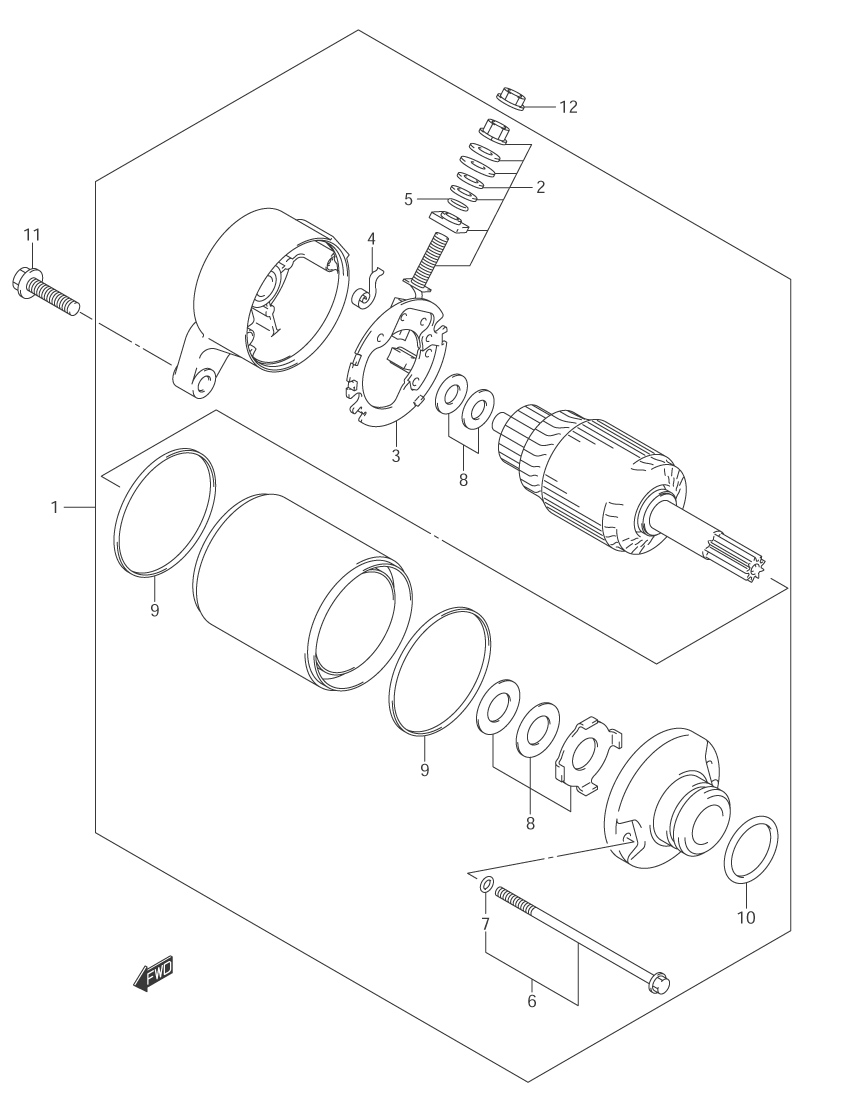

STARTING MOTOR для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
131100-19F00 MOTOR ASSY., STARTINGMOTOR ASSY., STARTING
-
231130-13E00 ...BRUSH TERMINAL SET...BRUSH TERMINAL SET
-
331132-33E00 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
431135-31300 ...SPRING, BRUSH...SPRING, BRUSH
-
531143-49040 ...O-RING...O-RING
-
631280-19F00 ...SET BOLT ASSY....SET BOLT ASSY.
-
731156-13E00 ...O-RING...O-RING
-
831170-19B10 ...WASHER SET...WASHER SET
-
931264-31300 ...O-RING...O-RING
-
1009280-25002 ...O-RING (D:3.1,ID:24.4)...O-RING (D:3.1,ID:24.4)
-
1101547-06253 BOLTBOLT
-
1208361-35068 NUTNUT
