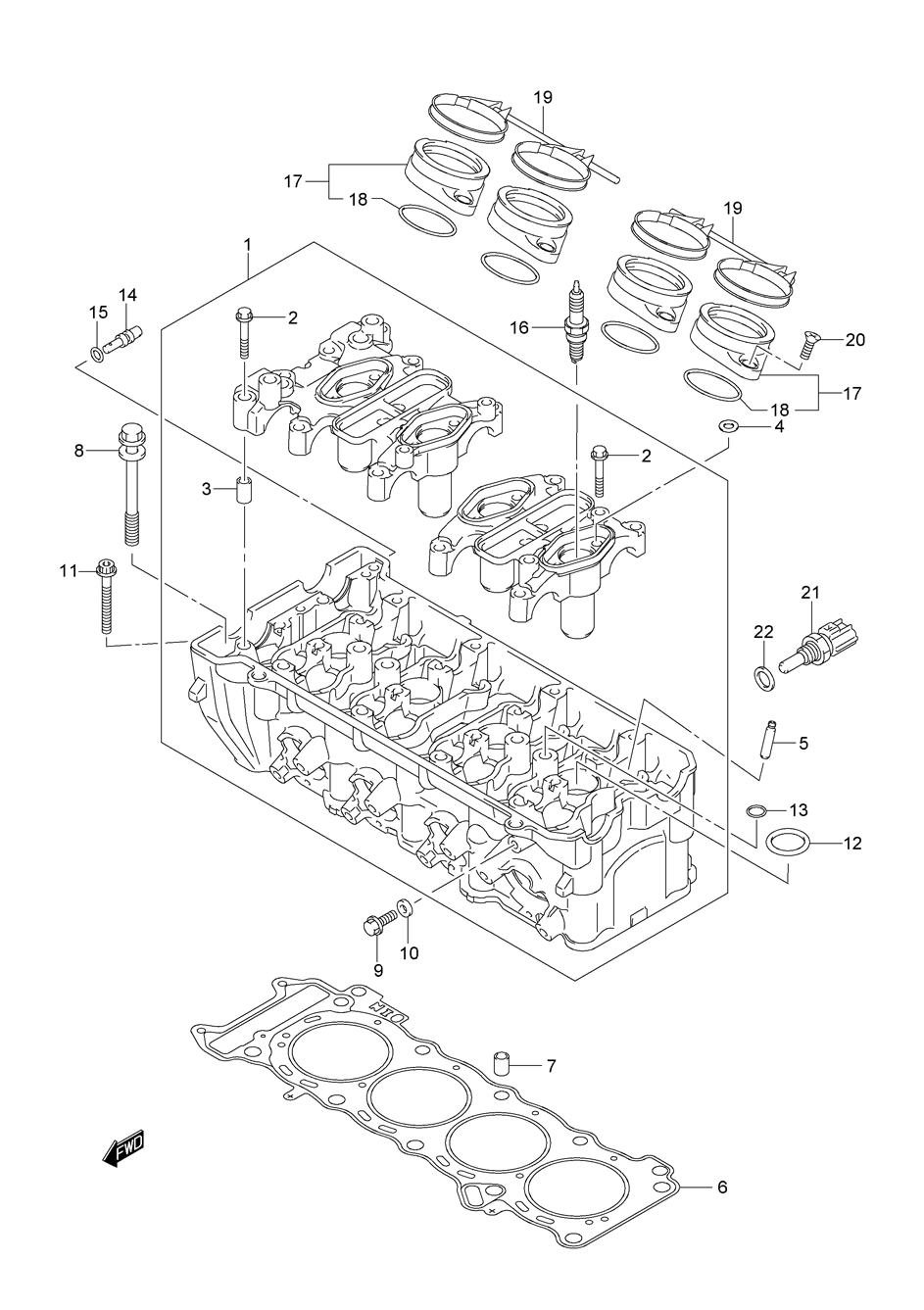

CYLINDER HEAD для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
111100-02H00 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06266 BOLTBOLT
-
309206-08007 PINPIN
-
409168-06018 WASHERWASHER
-
511115-29G70 GUIDE, VALVE (OS 0.5)GUIDE, VALVE (OS 0.5)
-
611141-02H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-11169 PINPIN
-
811117-29G00 BOLT (10X95)BOLT (10X95)
-
909103-06222 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1009168-06023 GASKETGASKET
-
1107120-0650A BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
1211179-81402 O RING, SPARK PLUG PIPEO RING, SPARK PLUG PIPE
-
1309280-11001 O RINGO RING
-
1409493-80005 JET, OILJET, OIL
-
1509280-04004 O RINGO RING
-
1609482-00458 SPARK PLUG (NGK,CR9E)SPARK PLUG (NGK,CR9E)
-
1609482-00459 SPARK PLUG (DENSO,U27ESR-N)SPARK PLUG (DENSO,U27ESR-N)
-
1609482-00456 SPARK PLUG (NGK,CR8E)SPARK PLUG (NGK,CR8E)
-
1609482-00460 SPARK PLUG (NGK,CR10E)SPARK PLUG (NGK,CR10E)
-
1609482-00457 SPARK PLUG (DENSO,U24ESR-N)SPARK PLUG (DENSO,U24ESR-N)
-
1609482-00461 SPARK PLUG (DENSO,U31ESR-N)SPARK PLUG (DENSO,U31ESR-N)
-
1713101-02H00 PIPE, INTAKEPIPE, INTAKE
-
1809280-42003 O RING (D:2.40,ID:41.7)O RING (D:2.40,ID:41.7)
-
1913170-02H00-E00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2009120-06007-A05 SCREWSCREW
-
2113650-10G00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2209168-12017 GASKETGASKET
