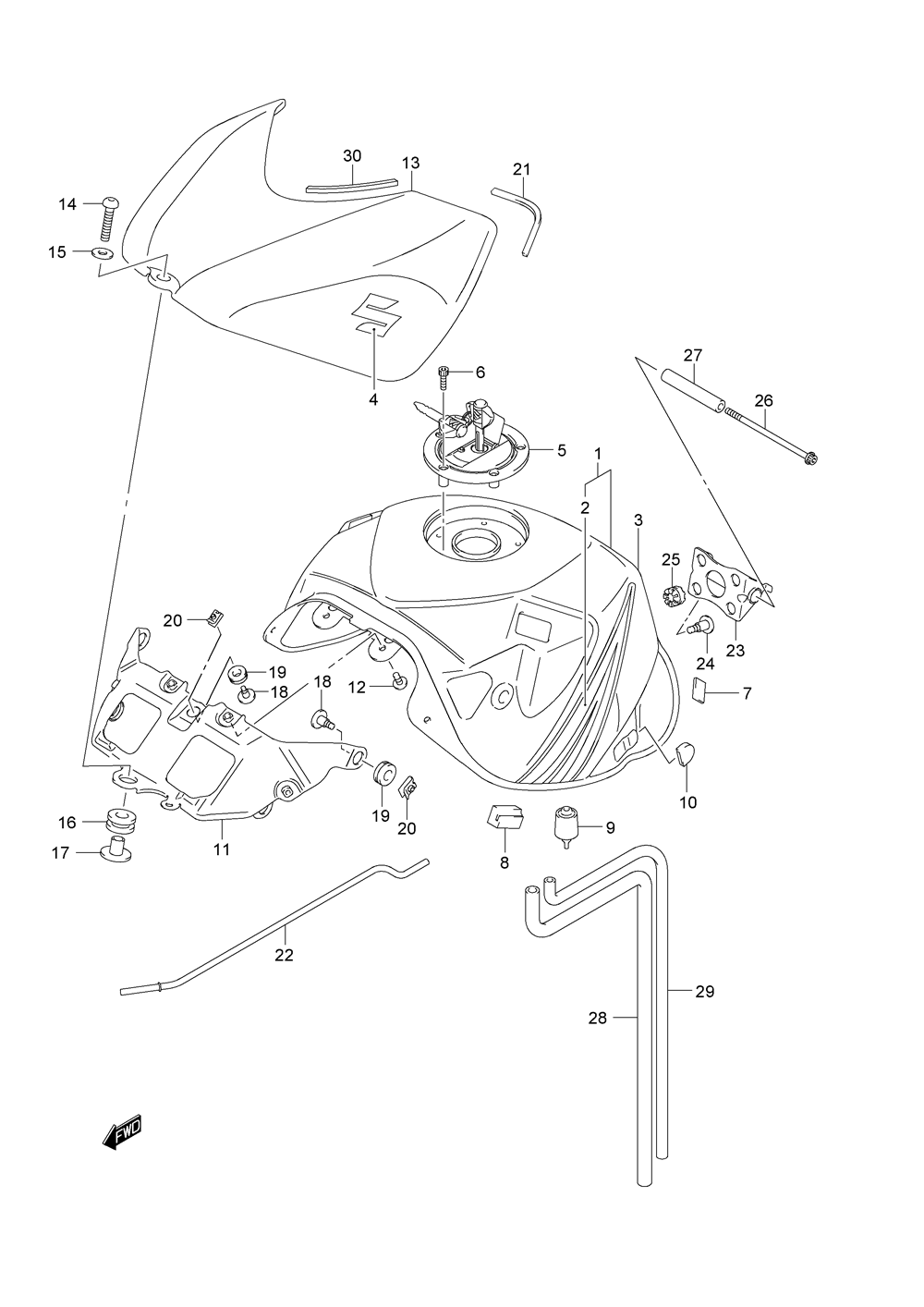

FUEL TANK для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
144100-02H00-019 TANK ASSY, FUEL (BLACK, 019 FOR AGN)TANK ASSY, FUEL (BLACK, 019 FOR AGN)
-
144100-02H00-1PX TANK ASSY, FUEL (BLACK, 1PX FOR CRS)TANK ASSY, FUEL (BLACK, 1PX FOR CRS)
-
144100-02H00-YKY TANK ASSY, FUEL (BLUE, YKY FOR CWH)TANK ASSY, FUEL (BLUE, YKY FOR CWH)
-
144100-02H20-019 TANK ASSY, FUEL (BLACK, 019 FOR AGN)TANK ASSY, FUEL (BLACK, 019 FOR AGN)
-
144100-02H20-1PX TANK ASSY, FUEL (BLACK, 1PX FOR CRS)TANK ASSY, FUEL (BLACK, 1PX FOR CRS)
-
144100-02H20-YKY TANK ASSY, FUEL (BLUE, YKY FOR CWH)TANK ASSY, FUEL (BLUE, YKY FOR CWH)
-
268110-02H00-DBV TAPE SET (FOR 019)TAPE SET (FOR 019)
-
268110-02H00-DBW TAPE SET (FOR 1PX)TAPE SET (FOR 1PX)
-
268110-02H00-DBY TAPE SET (FOR YKY)TAPE SET (FOR YKY)
-
344100-01H00-019 TANK ASSY, FUEL (BLACK) (EXCEPT CALIF.) (FOR CRU)TANK ASSY, FUEL (BLACK) (EXCEPT CALIF.) (FOR CRU)
-
344100-01H20-019 TANK ASSY, FUEL (BLACK) (CALIF. ONLY) (FOR CRU)TANK ASSY, FUEL (BLACK) (CALIF. ONLY) (FOR CRU)
-
468111-18G20 EMBLEMEMBLEM
-
544200-16850 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
544200-16860 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
609106-05017 BOLTBOLT
-
744572-13G00 FASTENERFASTENER
-
844541-33E00 CUSHION, SIDECUSHION, SIDE
-
944542-41G00 CUSHION, LOWERCUSHION, LOWER
-
1009329-18001 CUSHION, SIDE COVERCUSHION, SIDE COVER
-
1144520-01H00 BRACKET, FRONTBRACKET, FRONT
-
1209139-06122 SCREW, BRACKETSCREW, BRACKET
-
1344291-01H00-019 COVER, TANK FRONT (BLACK, 019) (FOR AGN/CRUCRS)COVER, TANK FRONT (BLACK, 019) (FOR AGN/CRUCRS)
-
1344291-01H00-YKY COVER, TANK FRONT (BLUE, YKY) (FOR CWH)COVER, TANK FRONT (BLUE, YKY) (FOR CWH)
-
1409106-08156 SCREW, FRONTSCREW, FRONT
-
1509160-08054 WASHERWASHER
-
1609320-12053 CUSHIONCUSHION
-
1709180-08174-A05 SPACERSPACER
-
1809139-05078 SCREW, TANK COVERSCREW, TANK COVER
-
1909320-08021 CUSHIONCUSHION
-
2009148-05052 NUTNUT
-
2144277-01H00 CUSHION, TANK COVER NO.1CUSHION, TANK COVER NO.1
-
2244574-35F00 STAY, FUEL TANKSTAY, FUEL TANK
-
2344530-41G00 BRACKET, NO.1BRACKET, NO.1
-
2409139-06132 SCREWSCREW
-
2509320-08071 CUSHIONCUSHION
-
2609106-06103-A05 BOLT, JOINTBOLT, JOINT
-
2744561-18G00 SPACER, JOINTSPACER, JOINT
-
2844423-41G00 HOSE, DRAINHOSE, DRAIN
-
2944424-41G00 HOSE, BREATHERHOSE, BREATHER
-
3044278-01H00 CUSHION, TANK COVER NO.2CUSHION, TANK COVER NO.2
