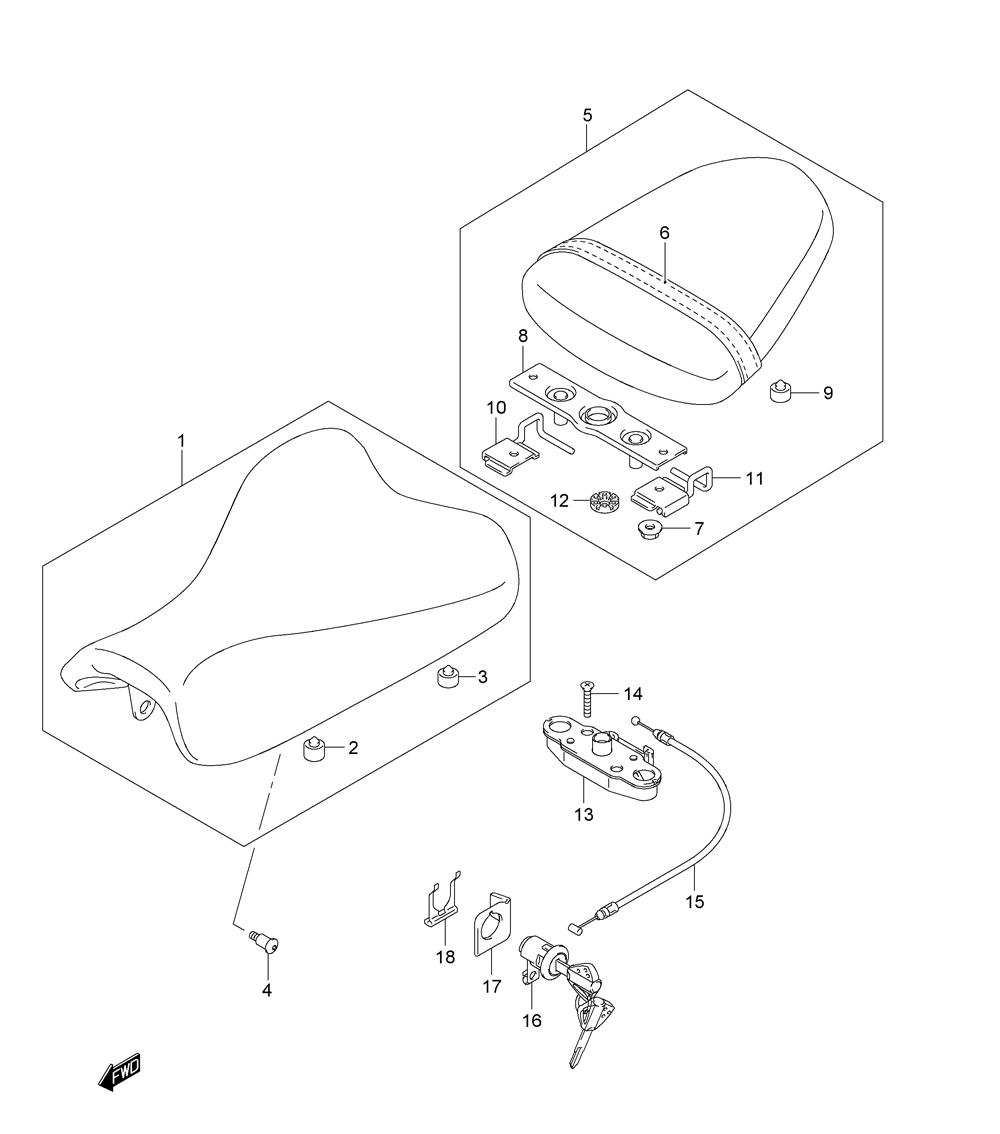

SEAT для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
145100-01H00-6BY SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
209321-10039 CUSHION, FRONTCUSHION, FRONT
-
309321-10011 CUSHIONCUSHION
-
409139-06146 SCREW, SEATSCREW, SEAT
-
545300-01H00-6BY SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
645180-01H00 BAND ASSY, SEATBAND ASSY, SEAT
-
708319-31063 NUTNUT
-
845290-18G00 STRIKERSTRIKER
-
909321-10011 CUSHIONCUSHION
-
1045315-01H00 HOLDER, HELMET, RIGHTHOLDER, HELMET, RIGHT
-
1145316-01H00 HOLDER, HELMET, LEFTHOLDER, HELMET, LEFT
-
1245213-31300 CUSHIONCUSHION
-
1345220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1402122-0630A SCREW, REARSCREW, REAR
-
1545280-13A01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1695700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1745288-14F10 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1845289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
