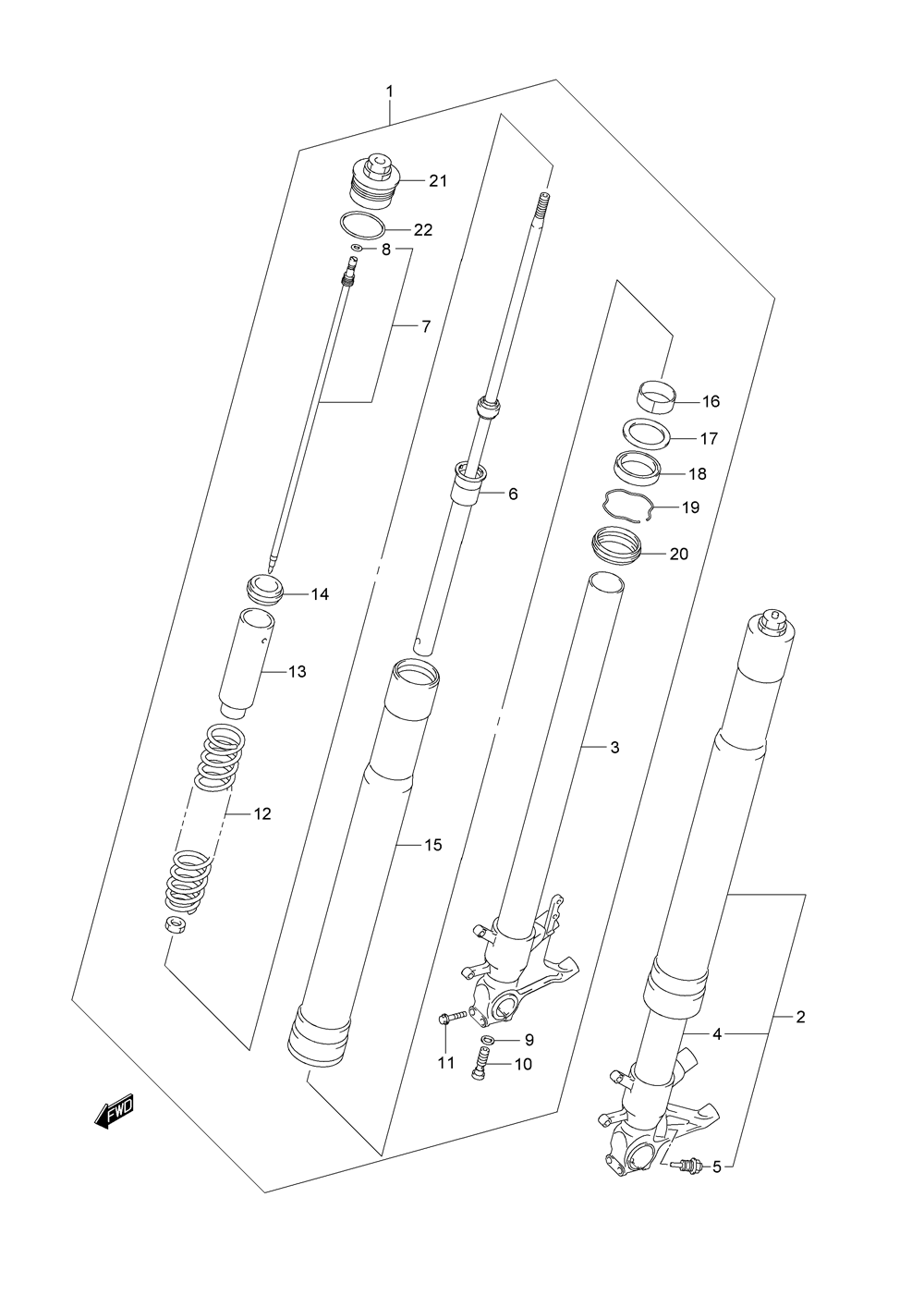

SUSPENSION - FRONT FORK для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
151103-02H00 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251104-02H00 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
351110-02H00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-02H00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551830-01H00 PIECE, ADJUSTER LOWERPIECE, ADJUSTER LOWER
-
652110-01H00 ROD, DAMPERROD, DAMPER
-
751821-01H00 PUSH RODPUSH ROD
-
809280-03002 O RINGO RING
-
909161-10009 GASKETGASKET
-
1051147-17C00 BOLTBOLT
-
1151166-35F00 BOLT, AXLE HOLDERBOLT, AXLE HOLDER
-
1251171-02H00 SPRINGSPRING
-
1351176-29G00 SPACER, SPRINGSPACER, SPRING
-
1451175-22D00 JOINT, SPRING UPPERJOINT, SPRING UPPER
-
1551131-02H00 TUBE, OUTERTUBE, OUTER
-
1651152-17G00 BUSH, GUIDEBUSH, GUIDE
-
1751168-01H00 SPACER, SEALSPACER, SEAL
-
1851153-01H00 SEAL, OILSEAL, OIL
-
1951556-38B00 RING, STOPPERRING, STOPPER
-
2051173-01H00 SEAL, DUSTSEAL, DUST
-
2151189-01H00 BOLT, FORKBOLT, FORK
-
2251187-01H00 O RING, FORK BOLTO RING, FORK BOLT
