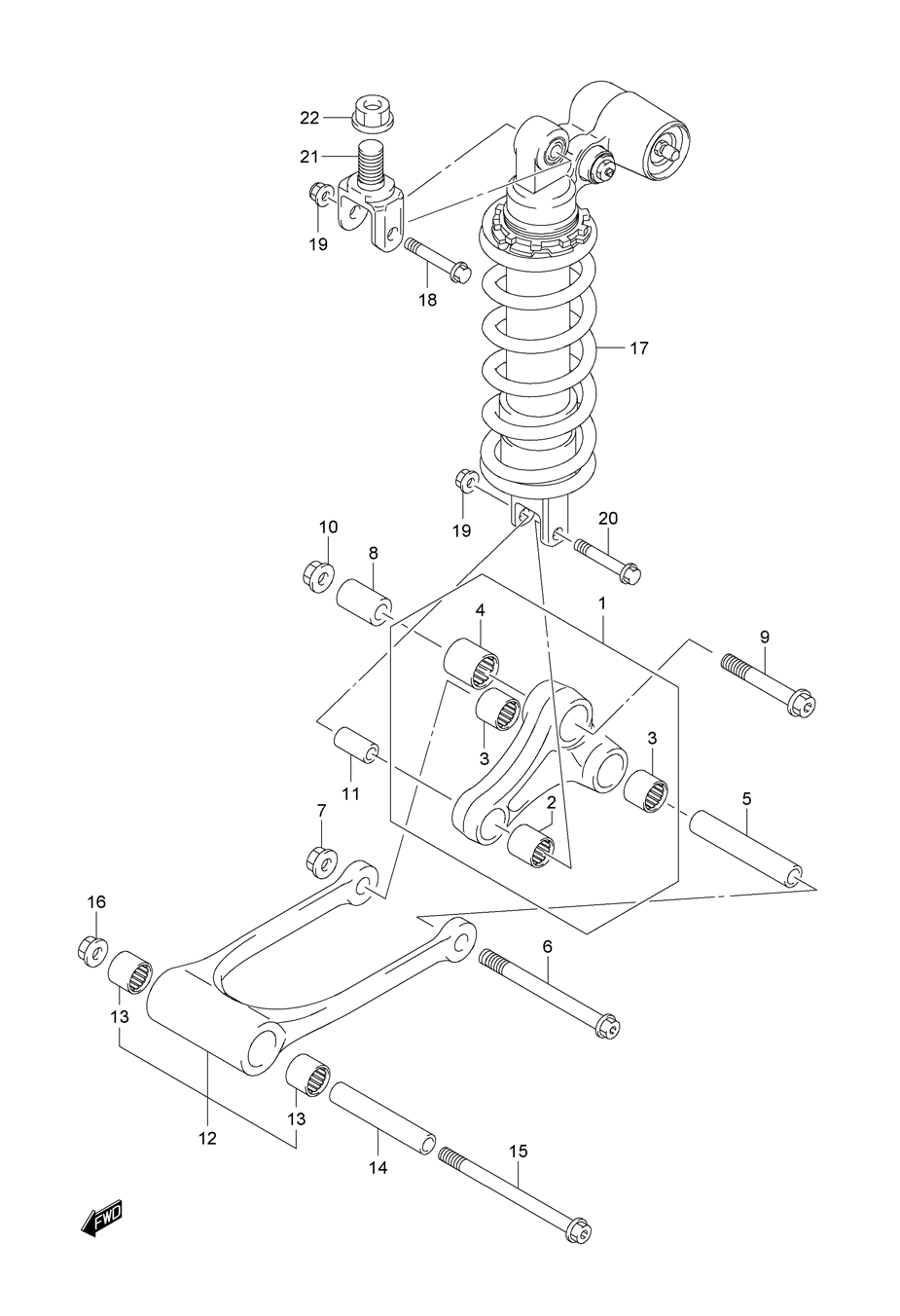

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
162601-01850 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-17034 BEARING, FRONT (17X24X26)BEARING, FRONT (17X24X26)
-
309263-17037 BEARING, LOWER (17X24X25)BEARING, LOWER (17X24X25)
-
409263-20074 BEARING, UPPER (20X27X32)BEARING, UPPER (20X27X32)
-
562646-08G00 SPACER, LOWERSPACER, LOWER
-
662621-42E10 BOLT, LOWERBOLT, LOWER
-
709159-12056-A05 NUTNUT
-
862317-27C10 SPACER, UPPERSPACER, UPPER
-
962658-35F00-A05 BOLT, UPPERBOLT, UPPER
-
1009159-12056-A05 NUTNUT
-
1162684-40A10 SPACER, FRONTSPACER, FRONT
-
1262601-01860 ROD SET, REAR CUSHION LEVERROD SET, REAR CUSHION LEVER
-
1309263-17037 BEARING, ROD (17X24X25)BEARING, ROD (17X24X25)
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-01H00 BOLT, RODBOLT, ROD
-
1609159-12056-A05 NUTNUT
-
1762100-02H10-163 ABSORBER ASSY, REAR SHOCK (UNITED STATES)ABSORBER ASSY, REAR SHOCK (UNITED STATES)
-
1762100-02H00-163 ABSORBER ASSY, REAR SHOCK (CANADA)ABSORBER ASSY, REAR SHOCK (CANADA)
-
1809103-10143-A05 BOLT, UPPER (10X55)BOLT, UPPER (10X55)
-
1909159-10058-A05 NUTNUT
-
2009103-10143-A05 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
2162993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2209159-20006-A05 NUTNUT
