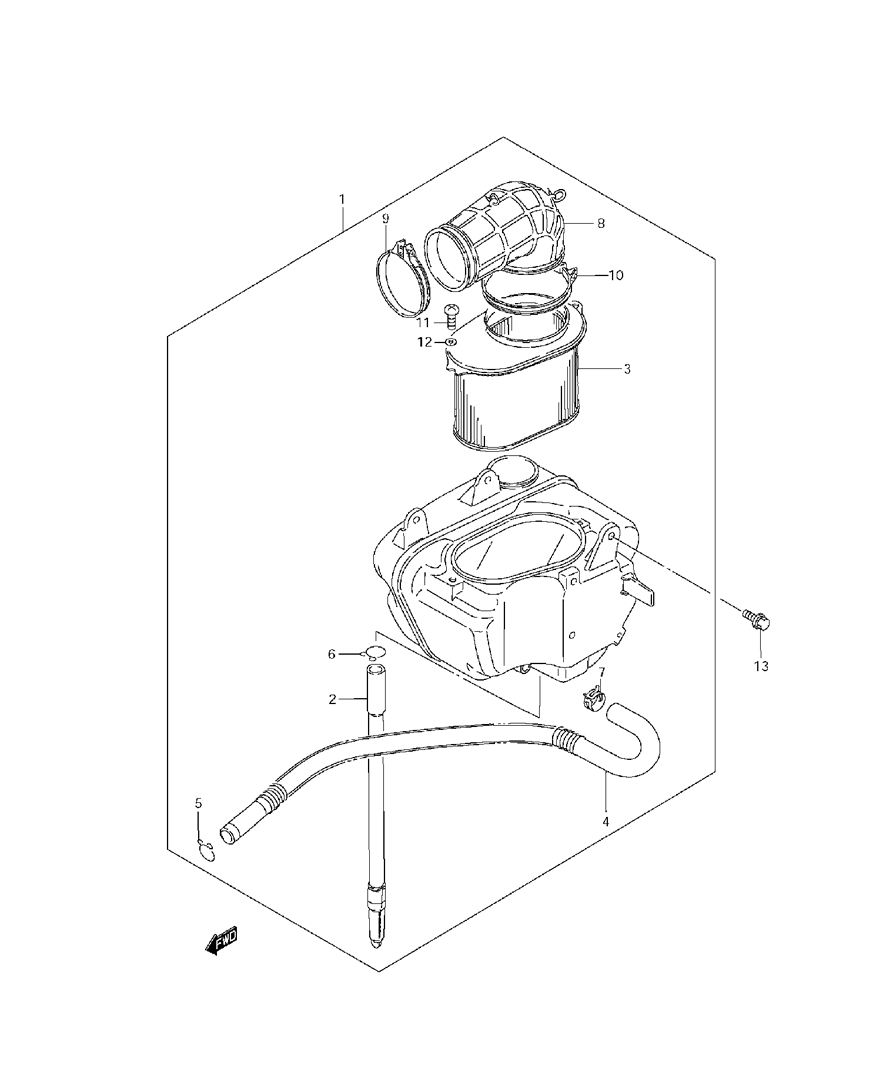

AIR CLEANER (REAR) для Suzuki VS800 K7 - 2007 года выпуска
-
№АртикулНазвание
-
113700-38A51 CLEANER ASSY, AIR REAR (INCLUDES ITEM(S) 2 - 12)CLEANER ASSY, AIR REAR (INCLUDES ITEM(S) 2 - 12)
-
213870-11458 TUBE, DRAINTUBE, DRAIN
-
313780-38A51 FILTER ASSYFILTER ASSY
-
413850-38A50 TUBE SET, BREATHERTUBE SET, BREATHER
-
509401-14301 CLIPCLIP
-
609401-13409 CLIPCLIP
-
709401-14404 CLIPCLIP
-
813881-38A50 TUBE, OUTLETTUBE, OUTLET
-
909402-58208 CLAMPCLAMP
-
1009402-78207 CLAMPCLAMP
-
1102112-0508B SCREWSCREW
-
1208321-01053 LOCK WASHERLOCK WASHER
-
1301500-06207 BOLTBOLT
