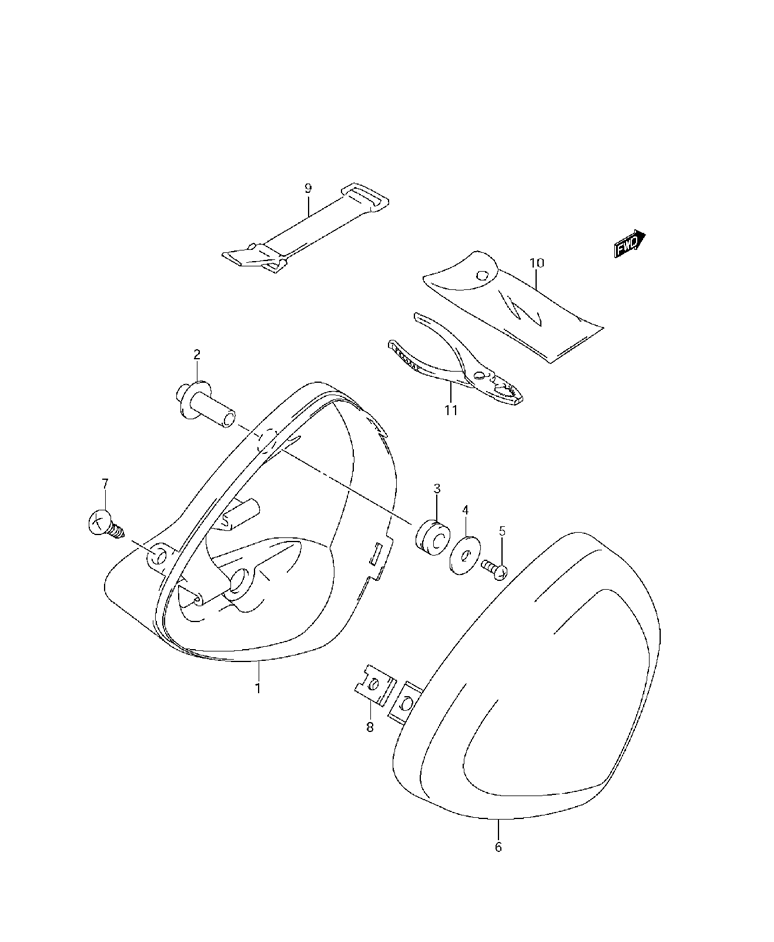

TOOL HOLDER для Suzuki VS800 K7 - 2007 года выпуска
-
№АртикулНазвание
-
147431-39A00 BODY, TOOL HOLDERBODY, TOOL HOLDER
-
247440-39A11 SPACERSPACER
-
309320-10052 CUSHIONCUSHION
-
409160-06158 WASHERWASHER
-
502142-0635B SCREWSCREW
-
647432-39A00 CAP, TOOL HOLDERCAP, TOOL HOLDER
-
709139-06044 SCREWSCREW
-
809148-06018 NUTNUT
-
909280-61002 BAND, TOOLBAND, TOOL
-
1009800-21055 TOOL ASSYTOOL ASSY
