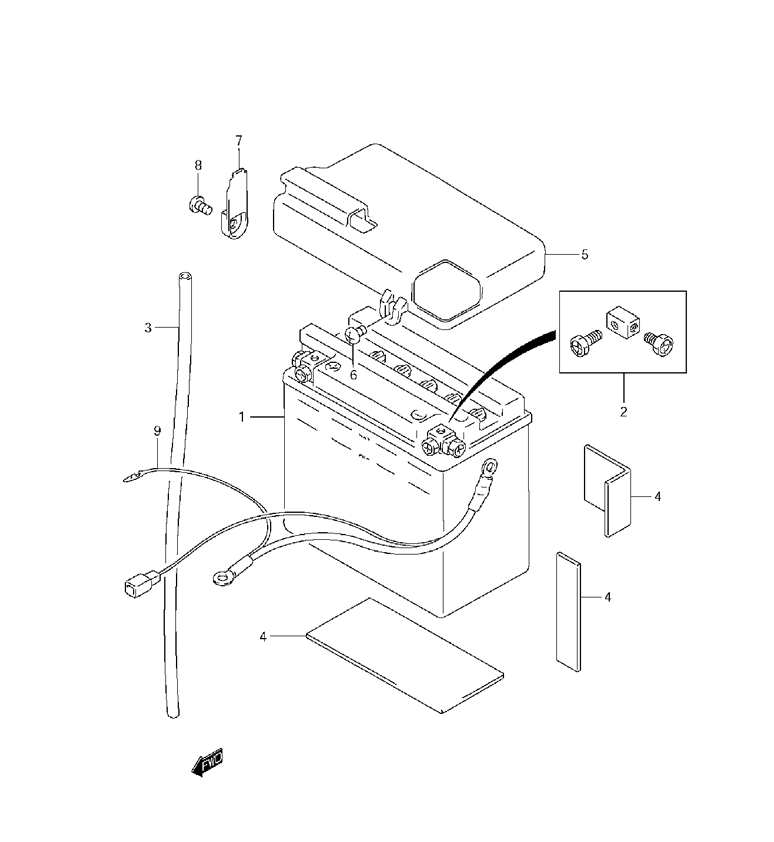

BATTERY для Suzuki VS800 K7 - 2007 года выпуска
-
№АртикулНазвание
-
133610-38A01 BATTERY (12V,16AH) (INCLUDES ITEM(S) 2)BATTERY (12V,16AH) (INCLUDES ITEM(S) 2)
-
233626-38A01 BOLT SET, TERMINALBOLT SET, TERMINAL
-
333680-16A10 HOSE, BATTERY EXHAUSTHOSE, BATTERY EXHAUST
-
433651-37000 PROTECTOR (170X95X3.0) CUT AS REQUIREDPROTECTOR (170X95X3.0) CUT AS REQUIRED
-
533658-38A30 COVER, BATTERY UPPERCOVER, BATTERY UPPER
-
602142-0508B SCREWSCREW
-
733658-38A40 COVER, BATTERY TERMINALCOVER, BATTERY TERMINAL
-
802142-0508B SCREWSCREW
-
933860-38A00 LEAD WIRE, BATTERY (-)LEAD WIRE, BATTERY (-)
