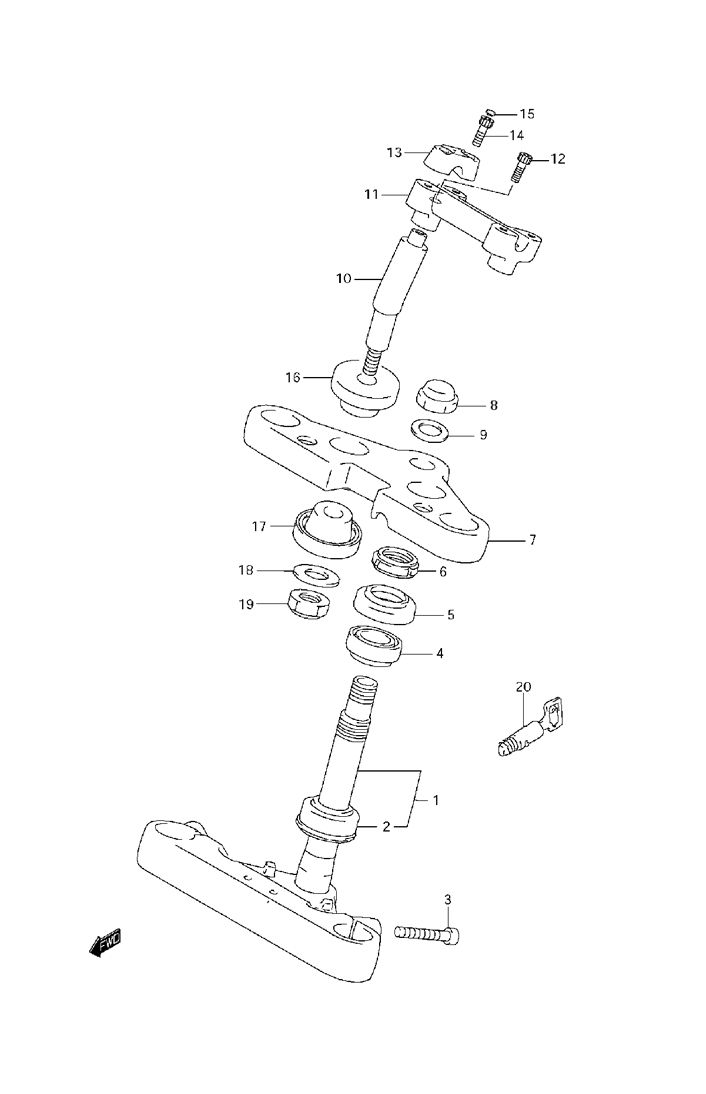

STEERING STEM для Suzuki VS800 K7 - 2007 года выпуска
-
№АртикулНазвание
-
151410-39A21 BRACKET, UNDER (INCLUDES ITEM(S) 2)BRACKET, UNDER (INCLUDES ITEM(S) 2)
-
209265-30009 BEARING (30X55X17)BEARING (30X55X17)
-
307130-10307 BOLT, LOWERBOLT, LOWER
-
409265-25019 BEARING, UPPER (25X47X15)BEARING, UPPER (25X47X15)
-
551643-49002 DUST SEALDUST SEAL
-
651631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
751311-39A00 BRACKET, UPPERBRACKET, UPPER
-
851353-24B00 NUTNUT
-
951356-24B01 WASHERWASHER
-
1056231-39A40 STAY, HANDLESTAY, HANDLE
-
1156221-39A40 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1207130-10257 BOLTBOLT
-
1356211-38B70 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1451321-10F00 BOLTBOLT
-
1509250-06009 CAPCAP
-
1656240-38A42 CUSHION, HANDLE STAY UPPERCUSHION, HANDLE STAY UPPER
-
1756242-39A12 CUSHION, HANDLE STAY LOWERCUSHION, HANDLE STAY LOWER
-
1851354-38A40 WASHERWASHER
-
1909159-10027 NUTNUT
-
2051900-38810 LOCK SET, STEERINGLOCK SET, STEERING
