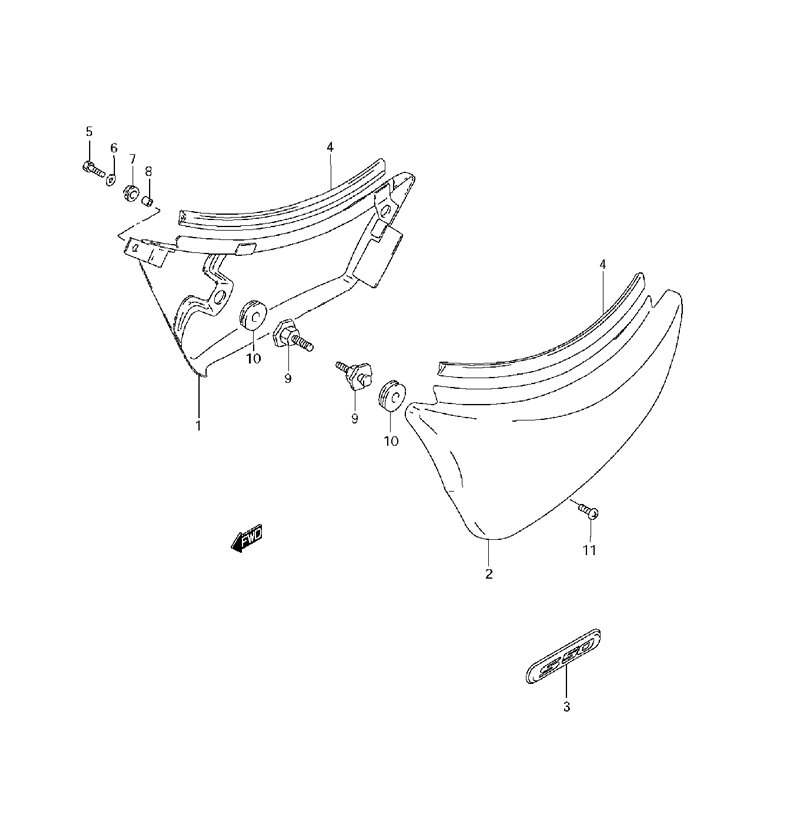

SIDE COVER для Suzuki VS800 K7 - 2007 года выпуска
-
№АртикулНазвание
-
147100-39AA0-YAY COVER, FRAME RIGHT HAND (BLACK YAY)COVER, FRAME RIGHT HAND (BLACK YAY)
-
147100-39AA0-YC3 COVER, FRAME RIGHT HAND (WHITE YC3)COVER, FRAME RIGHT HAND (WHITE YC3)
-
247200-39AA0-YAY COVER, FRAME LEFT HAND (BLACK YAY) (INCLUDES ITEM(S) 3)COVER, FRAME LEFT HAND (BLACK YAY) (INCLUDES ITEM(S) 3)
-
247200-39AA0-YC3 COVER, FRAME LEFT HAND (WHITE YC3) (INCLUDES ITEM(S) 3)COVER, FRAME LEFT HAND (WHITE YC3) (INCLUDES ITEM(S) 3)
-
368131-39AA0 EMBLEMEMBLEM
-
468241-04X50-300 MOLDINGMOLDING
-
501550-06167 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
609160-06084 WASHER 6.5X18X1WASHER 6.5X18X1
-
709320-06017 CUSHIONCUSHION
-
809180-06246 SPACERSPACER
-
947250-38A01 BOSS, FRAME COVERBOSS, FRAME COVER
-
1009320-08013 CUSHIONCUSHION
-
1102142-0610B SCREW, LEFT HANDSCREW, LEFT HAND
