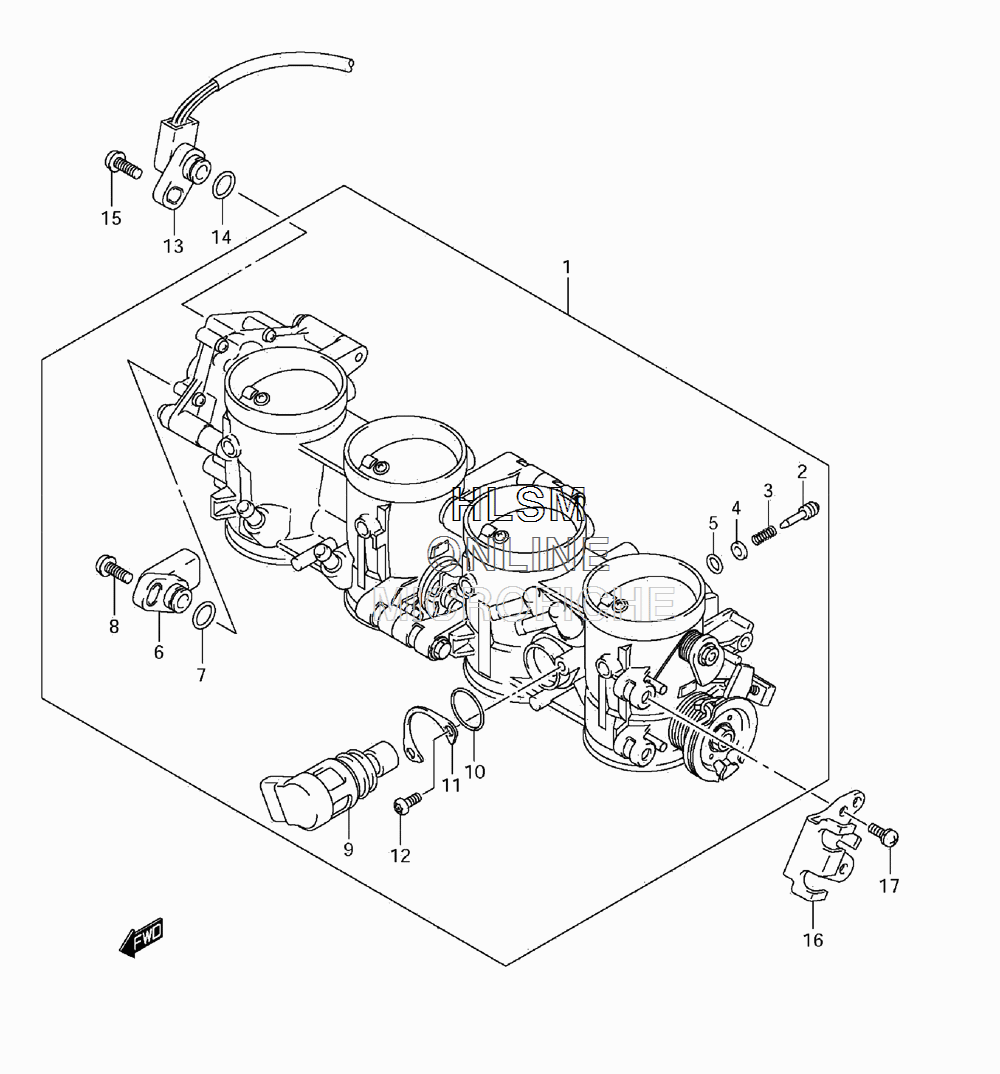

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki GSX 1300R L1 - 2011 года выпуска
-
№АртикулНазвание
-
113406-15H00 THROTTLE BODY (INCL. 2 - 12)THROTTLE BODY (INCL. 2 - 12)
-
213269-18G00 SCREW, AIR ADJUSTSCREW, AIR ADJUST
-
313271-43E00 SPRING, AIR SCREWSPRING, AIR SCREW
-
413291-26E00 WASHERWASHER
-
513295-26E00 O RINGO RING
-
613580-18G00 SENSOR ASSY, MAINSENSOR ASSY, MAIN
-
713575-40F00 O RINGO RING
-
813605-40F00 SCREWSCREW
-
918117-15H11 VALVE ASSY, ISCVALVE ASSY, ISC
-
1018119-05H00 O RINGO RING
-
1113428-15H00 PLATE, STAYPLATE, STAY
-
1213605-15H00 SCREWSCREW
-
1313580-40F30 SENSOR ASSY, THROTTLE NO.2SENSOR ASSY, THROTTLE NO.2
-
1413575-40F00 O RINGO RING
-
1513605-40F00 SCREWSCREW
-
1613565-15H00 PLATE, STAYPLATE, STAY
-
1713601-21H00 SCREWSCREW
