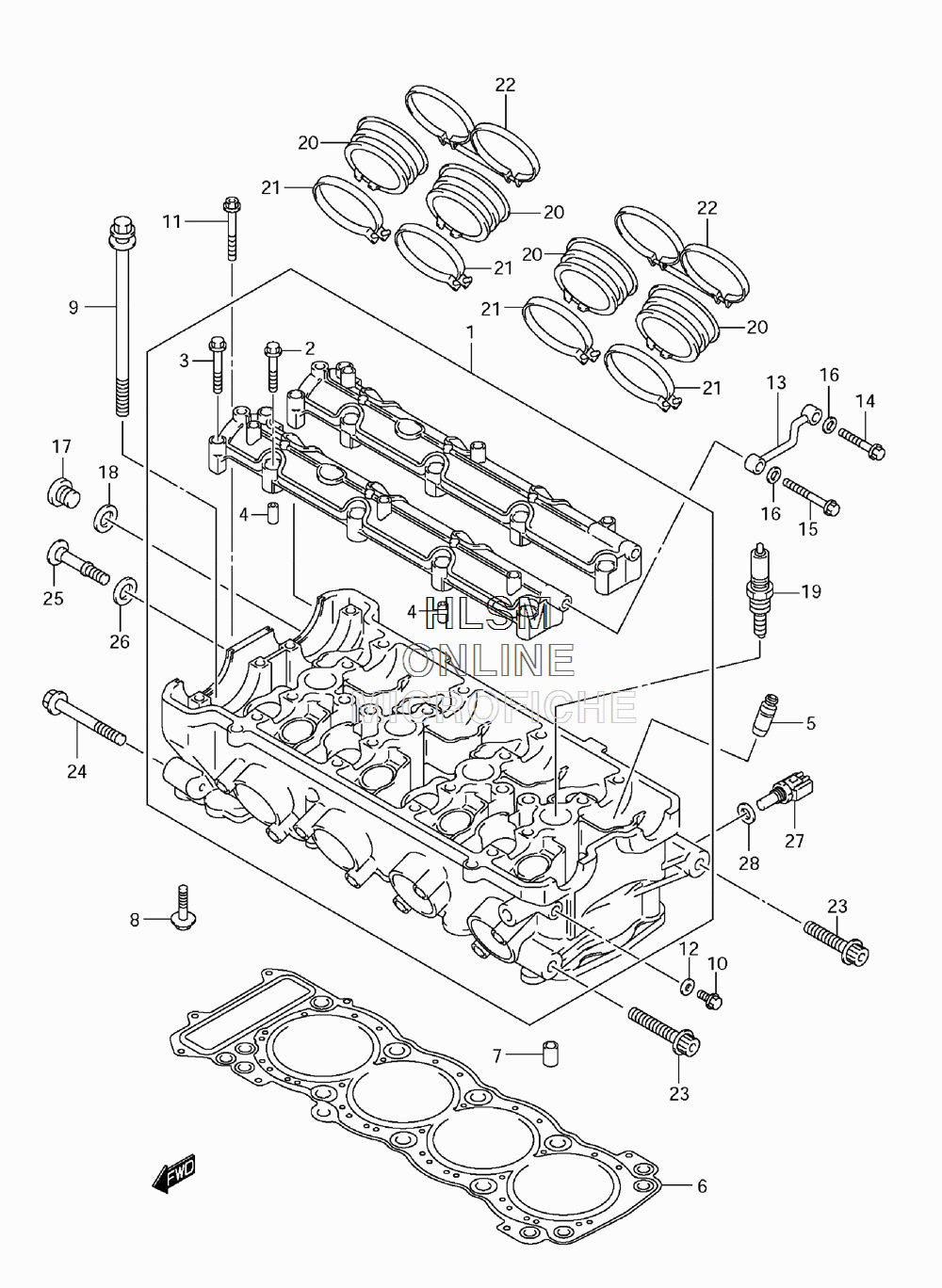

CYLINDER HEAD для Suzuki GSX 1300R L1 - 2011 года выпуска
-
№АртикулНазвание
-
111100-15H00 HEAD ASSY, CYLINDER (INCL. 2 - 4)HEAD ASSY, CYLINDER (INCL. 2 - 4)
-
209103-06266 BOLT (6X40)BOLT (6X40)
-
309103-06293 BOLT (6X45)BOLT (6X45)
-
409206-08007 PINPIN
-
511115-15H70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-15H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-11169 PINPIN
-
801550-0630B BOLTBOLT
-
911117-15H00 BOLTBOLT
-
1009103-06222 BOLT (6X12)BOLT (6X12)
-
1107120-0655B BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1311131-33E00 PIPE, OILPIPE, OIL
-
1401550-0635A BOLTBOLT
-
1501550-0645A BOLTBOLT
-
1608322-0106A WASHERWASHER
-
1709248-16012 PLUGPLUG
-
1809168-16009 GASKET (16X22X0.8)GASKET (16X22X0.8)
-
1909482-00558 SPARK PLUG (CR9EIA-9)SPARK PLUG (CR9EIA-9)
-
1909482-00557 SPARK PLUG (IU27D)SPARK PLUG (IU27D)
-
1909482-00556 SPARK PLUG (CR8EIA-9) (OPT) NGKSPARK PLUG (CR8EIA-9) (OPT) NGK
-
1909482-00560 SPARK PLUG (CR10EIA-9) (OPT) NGKSPARK PLUG (CR10EIA-9) (OPT) NGK
-
1909482-00555 SPARK PLUG (IU24D) (OPT) DENSOSPARK PLUG (IU24D) (OPT) DENSO
-
1909482-00559 SPARK PLUG (IU31D) (OPT) DENSOSPARK PLUG (IU31D) (OPT) DENSO
-
2013111-15H00 PIPE, INTAKE NO.1PIPE, INTAKE NO.1
-
2109402-60208 CLAMPCLAMP
-
2213170-15H10 CLAMPCLAMP
-
2309106-10069 BOLT (10X45)BOLT (10X45)
-
2409106-10084 BOLT (10X60)BOLT (10X60)
-
2511161-33E00 BOLT, CYL HEAD SIDE FACEBOLT, CYL HEAD SIDE FACE
-
2611191-13E00 WASHERWASHER
-
2713650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2809168-12017 GASKET (12X17X1)GASKET (12X17X1)
